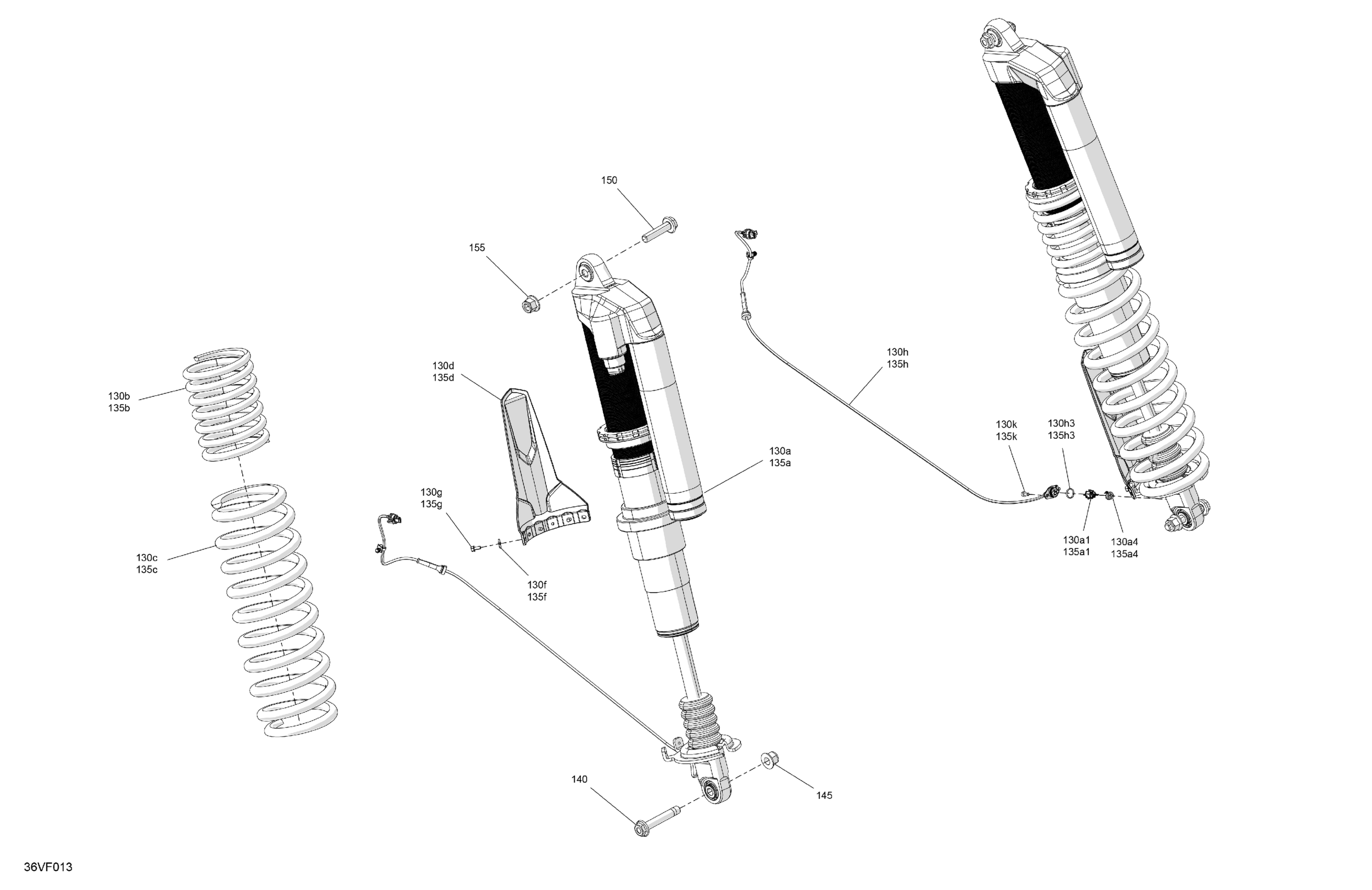

Can-Am Maverick R Max - 996NT2 - XRC SAS - 7JTF - Loft Green Satin - 77" Width, 2026 Suspension - Rear Shocks Diagram

Description

Price

130a

LH Rear Adjustable Shock Absorber | Includes 130a to 130a4

706005937

Unavailable

130a1

Connector Support

706203583

$12.91

130a4

Anchorage

706204583

$14.75

130b

Deep Black, Rear Compression Spring

706005012

$96.89

130c

Deep Black, Rear Compression Spring

706005608

$156.89

130d

Protector

706202215

$9.23

130f

Washer M5

250200025

$0.61

130g

Hex Flange Screw M5 X 11

210251150

$1.74

130h

Rear Suspension Wiring Harness Ass'y

710009865

$216.89

130h3

O Ring

293300213

$2.31

130k

Socket Head Screw M5 X 10

205551060

$1.30

135a

RH Rear Adjustable Shock Absorber | Includes 135a to 135a4

706005938

Unavailable

135a1

Connector Support

706203583

$12.91

135a4

Anchorage

706204583

$14.75

135b

Deep Black, Rear Compression Spring

706005012

$96.89

135c

Deep Black, Rear Compression Spring

706005608

$156.89

135d

Protector

706202215

$9.23

135f

Washer M5

250200025

$0.61

135g

Hex Flange Screw M5 X 11

210251150

$1.74

135h

Rear Suspension Wiring Harness Ass'y

710009865

$216.89

135h3

O Ring

293300213

$2.31

135k

Socket Head Screw M5 X 10

205551060

$1.30

140

Hex. Flange Screw Din.6921 M14X2X85

250001176

$6.08

145

Hex. Flange Elastic Nut M14

250001166

$10.56

150

Hex. Flange Screw Din.6921 M14X2X60

250001174

$6.08

155

Hex. Flange Elastic Nut M14

250001166

$10.56
