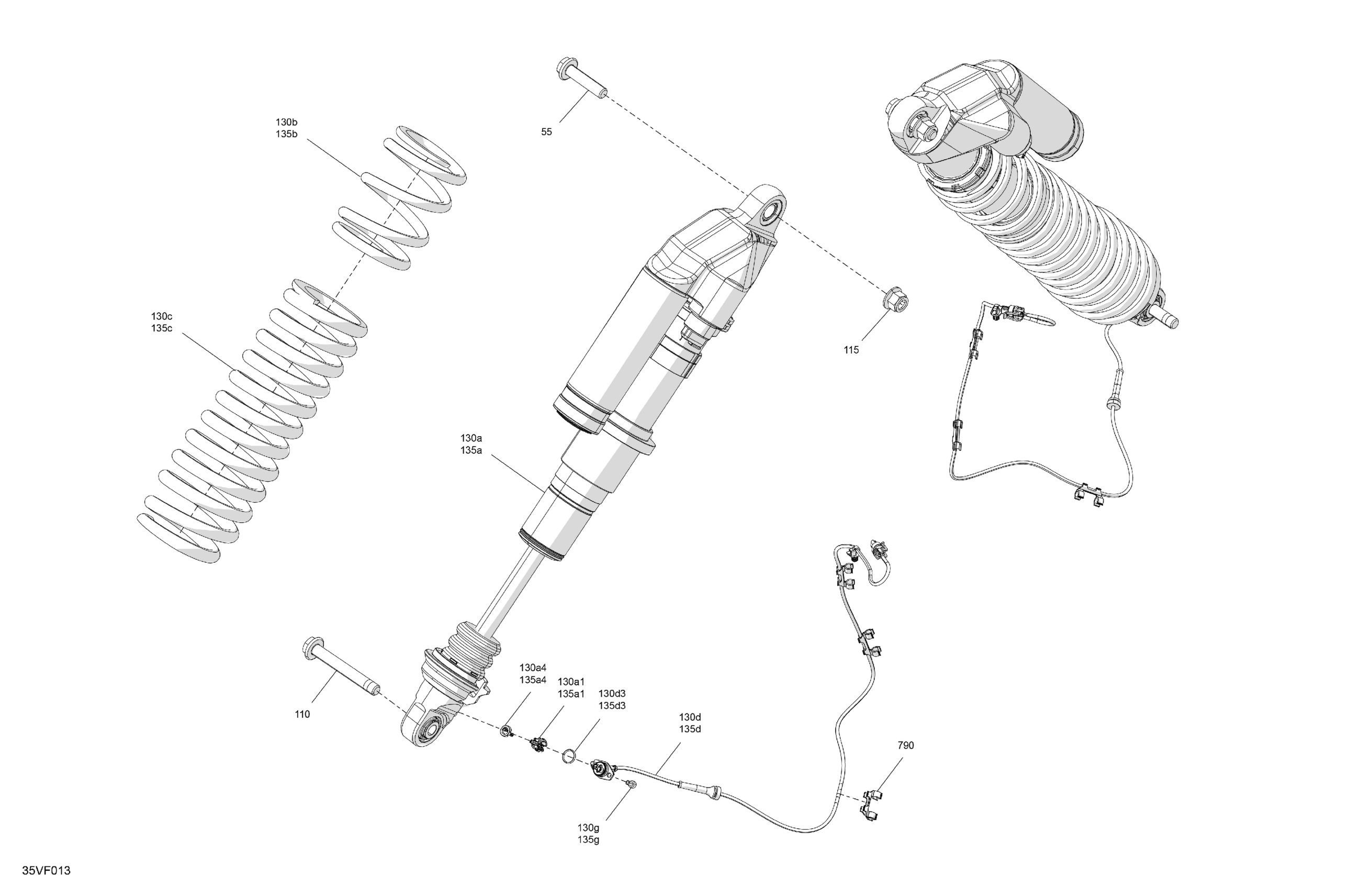

Can-Am Maverick R Max - 996NT2 - XRC SAS - 7JTF - Loft Green Satin - 77" Width, 2026 Suspension - Front Shocks Diagram

Description

Price

Hex. Flange Screw Din.6921 M14X2X60

250001174

$6.08

110

Hex Flange Screw M14 X 105

250001245

$7.05

115

Hex. Flange Elastic Nut M14

250001166

$10.56

130a

LH Front Adjustable Shock Absorber | Includes 130a to 130a4

706206219

Unavailable

130a1

Connector Support

706203583

$12.91

130a4

Anchorage

706204583

$14.75

130b

Deep Black, Compression Spring

706205328

$83.05

130c

Deep Black, Front Compression Spring

706205825

$156.89

130d

Front Suspension Wiring Harness Ass'y

710009322

$216.89

130d3

O Ring

293300213

$2.31

130g

Socket Head Screw M5 X 10

205551060

$1.30

135a

RH Front Adjustable Shock Absorber | Includes 135a to 135a4

706206220

Unavailable

135a1
