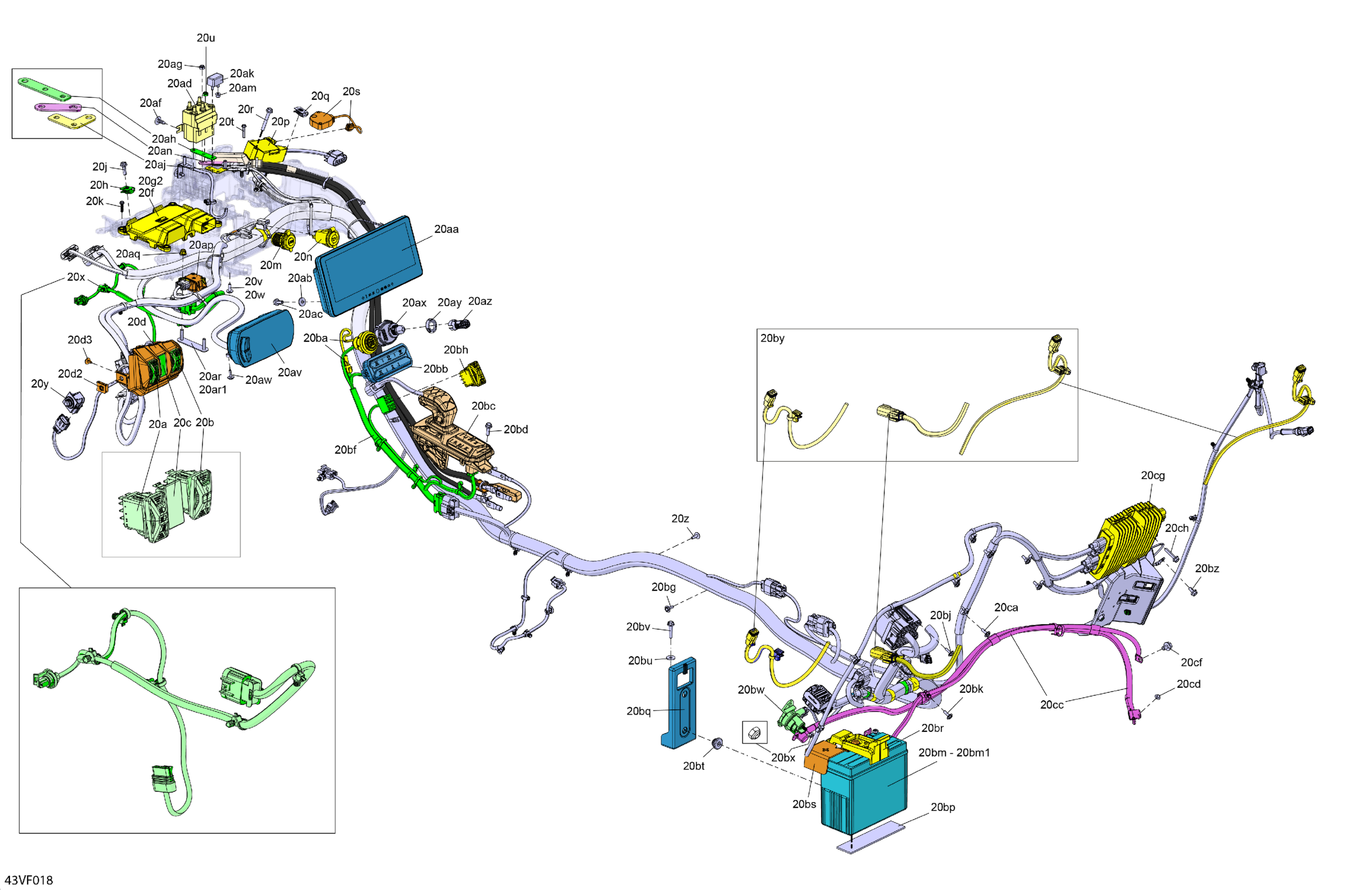

Can-Am Maverick R Max - 996NT2 - XRC - 7JTE - Loft Green Satin - 77" Width - CALI, 2026 Electric - Central Electric Diagram

#

Description
Price

20a

Light Switch

710007663

$44.00

20b

Winch Switch

710007665

$81.31

20c

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$7.60

20d

Switch Support Ass'y | Includes 20d to 20d3

710009476

$15.64

20d2

Panel Nut M6 X 1.0

250100208

$1.22

20d3

Plastite Screw M4 X 10

250000805

$2.00

20f

BCM Module OPT #2

710007494

$959.99

20g2

BCM Moldule OPT #1

710010598

$939.99

20h

Panel Nut M6 X 1.0

250100208

$1.22

20j

Hex. Flange Screw S.Grip M6 X 20

207562054

$2.00

20k

Hex. Flange PT Screw K50 X 20

241152040

$2.00

20m

USB Outlet

219400510

$43.99

20n

12V Power Outlet

710005374

$31.31

20p

Radio Frequency Module

515179191

$358.18

20q

Panel Nut M6 X 1.0

250100208

$1.22

20r

Hex. Flange Screw

207664554

$1.99

20s

Radio Frequency Antenna

515179821

$114.15

20t

Hex. Flange Screw K50 X 25

250000680

$1.67

20u

Elastic Stop Nut M6, Brass

232561200

$4.03

20v

Screw PT Type K-50 X 16

250000959

$2.00

20w

Screw PT Type K-50 X 16

250000959

$2.00

20x

Accelerator Pedal Wiring Harness

710008927

$205.94

20y

Door Switch

710010023

$68.63

20z

Screw PT Type K-50 X 16

250000959

$2.00

20aa

Multifunction Gauge 10

710010375

$2,012.66

20ab

Stainless Steel Flat Washer

234062670

$2.00

20ac

Hex. Flange Screw M6 X 16

207661644

$0.70

20ad

Solenoid

710006991

$57.43

20af

Black, Dart

293730011

$0.91

20ag

Elastic Stop Nut M6, Brass

232561200

$4.03

20ah

Copper Bar 1

710009727

Unavailable

20aj

Copper Bar 2

710009728

Unavailable

20ak

Circuit Breaker 50 Amp

710007039

$17.88

20am

Hex. Flange Elastic Nut M5

233251414

$1.91

20an

Copper Bar 3

710011000

$10.27

20ap

Inertial Sensor

710010113

$370.87

20aq

Hex. Flange Elastic Nut M6

233261494

$1.45

20ar

Sensor Support | Includes 1825 to 1825a

710009676

$14.49

20ar1

Sensor Support ED

710009651

$14.49

20av

Multifunction Compact Gauge

710008298

$347.73

20aw

Screw M4 X 16

250000725

$3.30

20ax

Terminal DESS CAN | CARB Vehicle

710008832

$69.37

20ay

Specialized Nut

278004274

$3.12

20az

Grey Key RFID | Except Model Europe, Except T3

710004964

$53.70

20ba

Start-Stop Button | Not Shown

710005213

$55.94

20bb

Multifunction Switch

710010056

$117.88

20bc

Electronic Gear Shift Lever

710007338

$290.27

20bd

Hex. Flange Screw S.Grip M6 X 20

207562054

$2.00

20bf

Console Wiring Harness

710010955

$85.04

20bg

Screw PT Type K-50 X 16

250000959

$2.00

20bh

Vol Up/Down Switch

710010952

$35.79

20bj

Screw M4 X 16

250000725

$3.30

20bk

Screw PT Type K-50 X 16

250000959

$2.00

20bm

Battery | Includes 900 to 900a

515176151

$199.45

20bm1

Battery Bolt Kit

515176081

$5.85

20bp

Rubber Pad

293830126

$12.64

20bq

Fixation Plate

710004788

$9.48

20br

Battery Support

710009128

$6.72

20bs

Battery Cable Cap

710006471

$2.59

20bt

Stopper Rubber

705014429

$6.09

20bu

Flat Washer 6 mm

234062410

$0.73

20bv

Hex. Flange Screw M6 X 30, Scotch Grip

207563044

$4.15

20bw

Starter Relay

278003012

$40.27

20bx

Elastic Stop Nut M6, Brass

232561200

$4.03

20by

Junction Wiring Harness

710010699

$801.46

20bz

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.79

20ca

Screw PT Type K-50 X 16

250000959

$2.00

20cc

Starter Wiring Harness

710010036

$64.15

20cd

Elastic Stop Nut M6, Brass

232561200

$4.03

20cf

Hex. Flange Screw M8 X 12, Scotch Grip

207581244

$1.06

20cg

Voltage Regulator

710007558

$335.04

20ch

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.00
