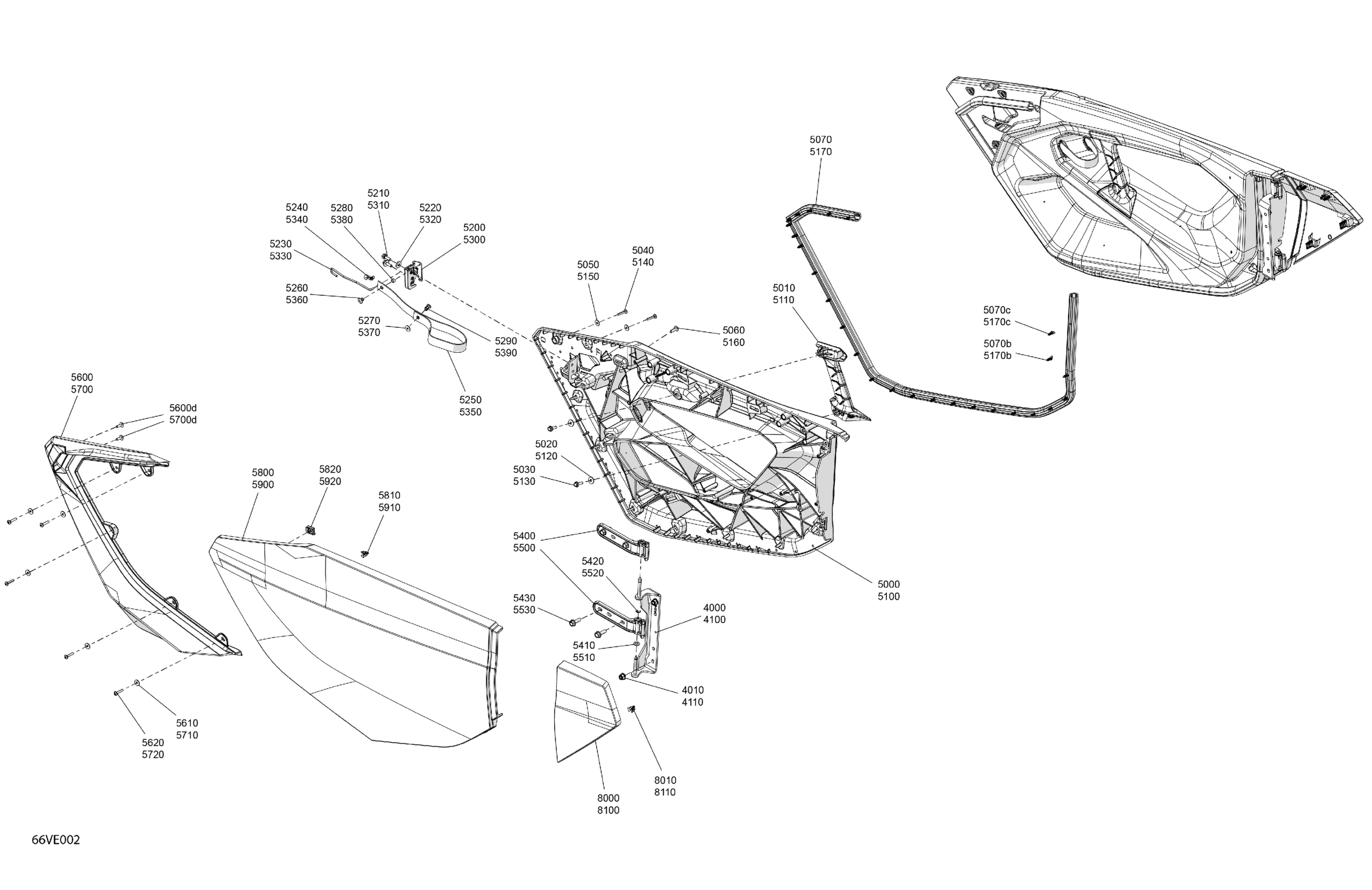

Can-Am Maverick R MAX - 996NT2 - BASE - 9CSD - Catalyst Gray - 77" Width, 2025 Enclosure Cab - Front Doors Diagram

LH Support Pivot

705212590

$28.99

Hex. Flange Elastic Nut M8

233281414

$1.47

RH Support Pivot

705212591

$28.99

Hex. Flange Elastic Nut M8

233281414

$1.47

LH Front Door Ass'y

715009654

$214.99

LH Interior Door Handle

705016582

$44.99

Stainless Steel Flat Washer

234062670

$2.11

Hex. Flange Screw S.Grip M6 X 20

207562054

$2.11

Torx Screw K50 X 25

250001110

$1.99

Washer M5

250200025

$0.74

Torx Screw M6 X 20

250000722

$1.68

LH Gasket Ass'y | Includes 5070 to 5070c

293250582

$81.99

Natural Color, Dart

293730081

$2.68

Red, Dart

293730082

$2.68

RH Front Door Ass'y

715009655

$214.99

RH Interior Door Handle

705016583

$44.99

Stainless Steel Flat Washer

234062670

$2.11

Hex. Flange Screw S.Grip M6 X 20

207562054

$2.11

Torx Screw K50 X 25

250001110

$1.99

Washer M5

250200025

$0.74

Torx Screw M6 X 20

250000722

$1.68

RH Gasket Ass'y | Includes 5170 to 5170c

293250616

$81.99

Natural Color, Dart

293730081

$2.68

Red, Dart

293730082

$2.68

RH Latch

705013759

$59.99

Hex. Flange Screw S.Grip M6 X 20

207562054

$2.11

Stainless Steel Flat Washer

234062670

$2.11

LH Latch Rod

705017012

$3.89

LH Tie Rod Clip

708300182

$2.89

Belt

293850144

$12.99

Black, Pop Rivet 3/16 X ,425

293150291

$0.56

Stainless Steel Flat Washer 8 mm

234081670

$0.67

Bushing | DS 650 X

293900104

$5.50

Tuflok Plastic Rivet

293150230

$1.47

LH Latch

705013758

$59.99

Hex. Flange Screw S.Grip M6 X 20

207562054

$2.11

Stainless Steel Flat Washer

234062670

$2.11

RH Latch Rod

705017013

$3.89

RH Tie Rod Clip

708300202

$2.89

Belt

293850144

$12.99

Black, Pop Rivet 3/16 X ,425

293150291

$0.56

Stainless Steel Flat Washer 8 mm

234081670

$0.67

Bushing | DS 650 X

293900104

$5.50

Tuflok Plastic Rivet

293150230

$1.47

Female Door Hinge

705017757

$26.99

Flat Washer 8 mm, Nylon

234081100

$1.39

Circlip | RS STD

705601030

$4.39

Hex Flange Screw M8 X 25 S.Grip

250001016

$1.46

Female Door Hinge

705017757

$26.99

Flat Washer 8 mm, Nylon

234081100

$1.39

Circlip | RS STD

705601030

$4.39

Hex Flange Screw M8 X 25 S.Grip

250001016

$1.46

LH Front Handle Support Ass'y | Includes 5600 to 5600d

705017036

$184.99

Screw PT Type K-50 X 16

250000959

$2.11

Washer M5

250200025

$0.74

Torx Screw K50 X 25

250001110

$1.99

RH Front Handle Support Ass'y | Includes 5700 to 5700d

705017037

$184.99

Screw PT Type K-50 X 16

250000959

$2.11

Washer M5

250200025

$0.74

Torx Screw K50 X 25

250001110

$1.99

Catalyst Gray, LH Front Door Panel

705019288

$214.99

Clip

517306478

$1.09

Panel Nut M6 X 1.0

250100208

$1.46

Catalyst Gray, RH Front Door Panel

705019289

$214.99

Clip

517306478

$1.09

Panel Nut M6 X 1.0

250100208

$1.46

Catalyst Gray, LH Central Body Panel

705019295

$114.99

Clip

517306478

$1.09

Catalyst Gray, RH Central Body Panel

705019296

$114.99

Clip

517306478

$1.09
