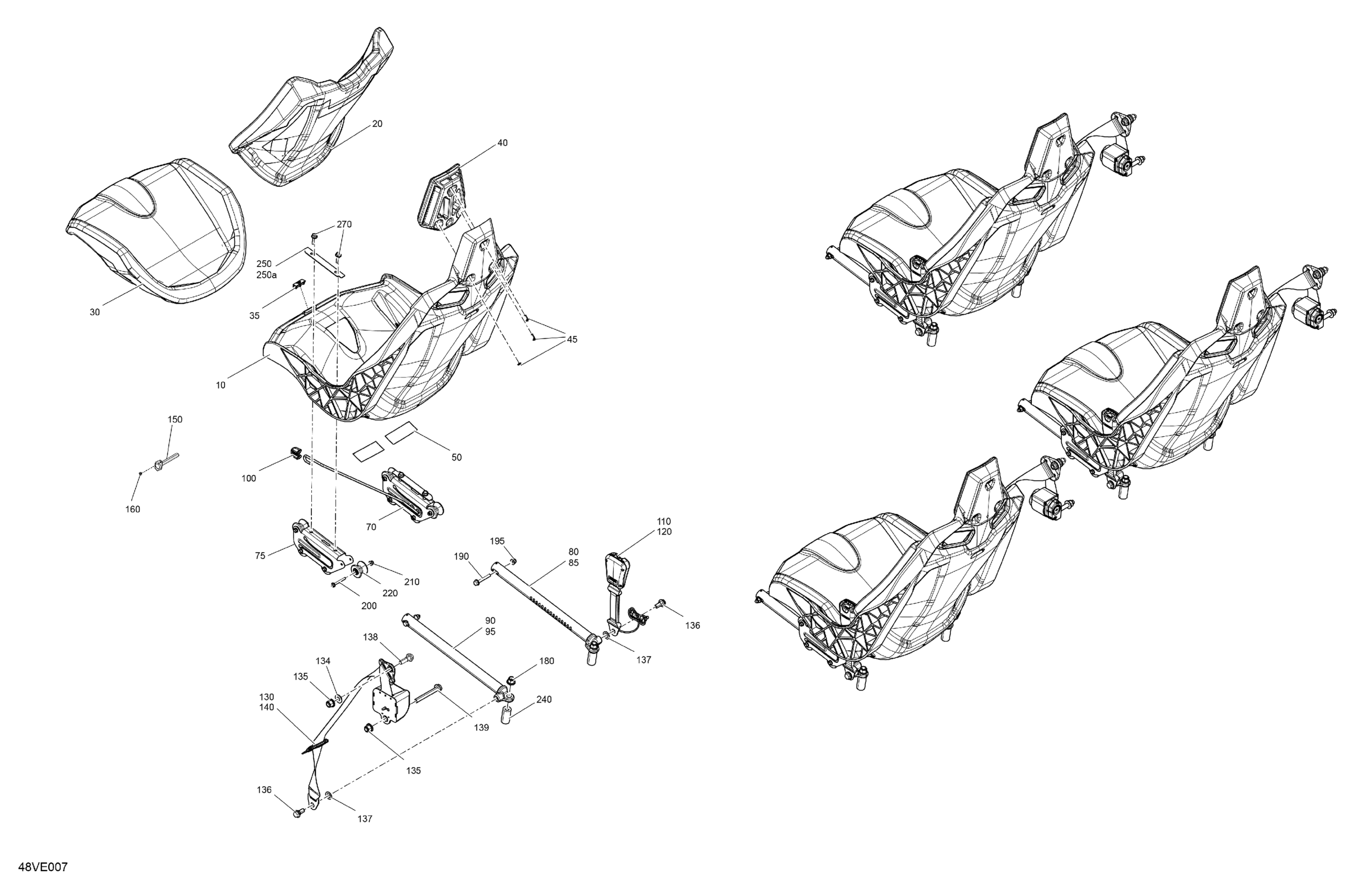

Can-Am Maverick R MAX - 996NT2 - BASE - 9CSD - Catalyst Gray - 77" Width, 2025 Body - Seat Diagram

Description

Price

Seat Shell Kit

708002065

$249.99

Backrest Base

708003512

$304.58

Seat Cushion

708003511

$235.35

Stopper

708002670

$3.98

Headrest

708002131

$96.89

Torx Screw Truss Head K50X20 T20

250000760

$1.74

Velcro Tape

708002535

$4.98

Adjustable Trolley Kit

703500997

$54.58

Carriage

708003450

$16.89

Seat Rail

708003061

$50.74

Rail

708002578

$50.74

Seat Rail

708003064

$50.74

Rail

708002575

$50.74

100

Adjustment Handle

708002655

$15.22

110

Driver Buckle

708002714

$96.89

120

Passenger Buckle

708002385

$83.05

130

Safety Belt Passenger

708002654

$267.66

134

Flat Washer M12

250200102

$1.74

135

Elastic Flange Nut M12

233221416

$2.33

136

Safety Belt screw

708002504

$5.52

137

Position Washer

708000891

$1.15

138

Hex Flange Screw M12 X 40

250001200

$16.12

139

Hex. Flange Screw M12 X 95

250000876

$5.54

140

Driver Side Safety Belt

708002811

$267.66

150

Retaining Plate

705212205

$23.05

160

Pop Rivet 3/16 X ,425

293150293

$0.26

180

Elastic Flange Nut M12

233221416

$2.33

190

Hex. Flange Screw M8 X 55

207685554

$4.39

195

Elastic Flange Nut M8

233281464

$0.83

200

Hex. Flange Screw M6 X 50

207665054

$3.95

210

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

220

Wheel

708002134

$15.35

240

Spacer

708003323

$10.14

250

Plate | Includes 250 to 250a

708003680

$2.03

250a

Plate

708003679

$2.31

270

Hex. Flange Screw M8 X 30, Scotch Grip

207583044

$1.68
