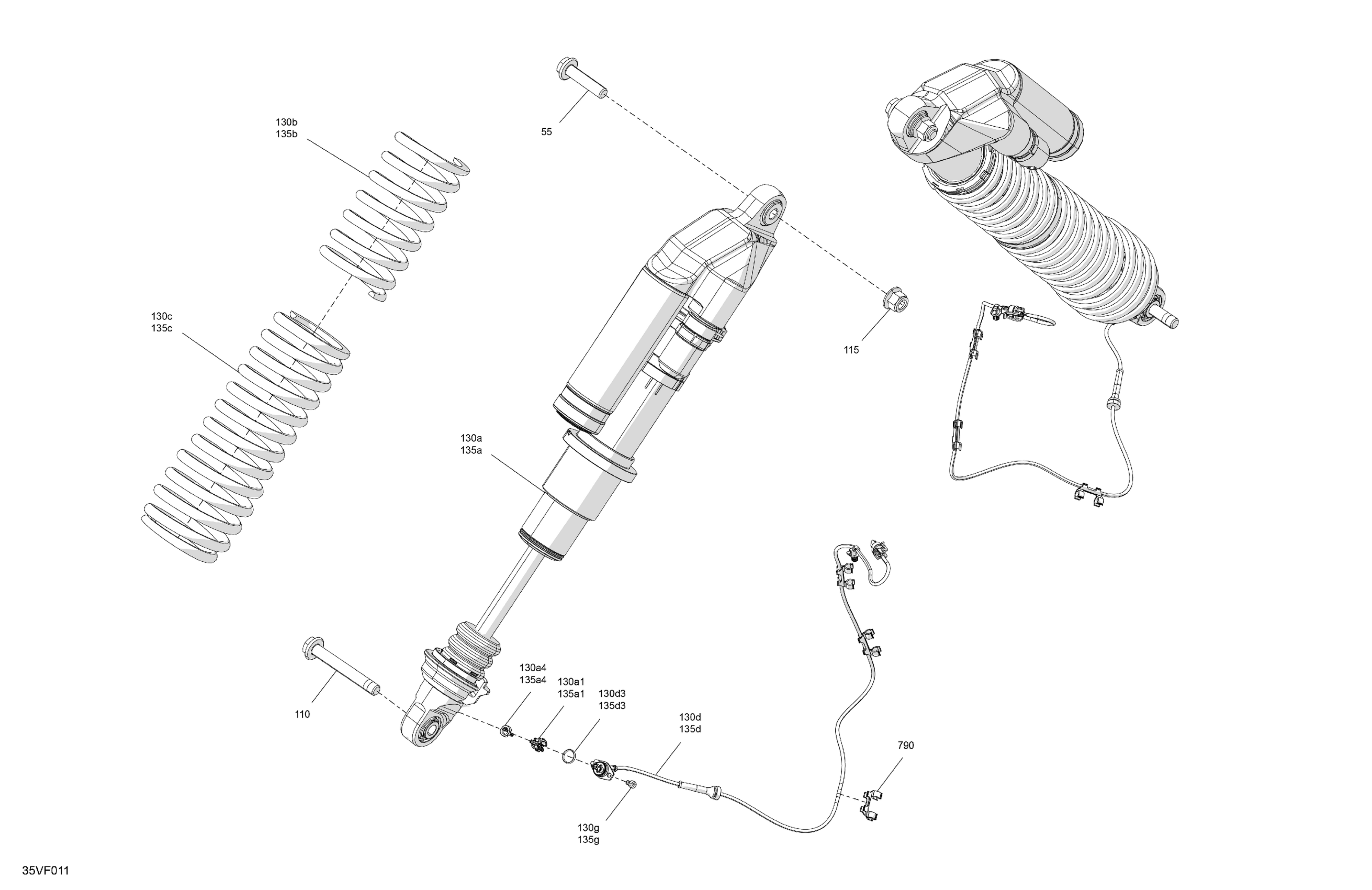

Can-Am Maverick R - 996NT2 - XRC SAS - 7GTE - Loft Green Satin - 77" Width, 2026 Suspension - Front Shocks Diagram

Description

Price

Hex. Flange Screw Din.6921 M14X2X60

250001174

$7.41

110

Hex Flange Screw M14 X 105

250001245

$8.57

115

Hex. Flange Elastic Nut M14

250001166

$12.71

130a

LH Front Adjustable Shock Absorber | Includes 130a to 130a4

706206208

Unavailable

130a1

Connector Support

706203583

$13.49

130a4

Anchorage

706204583

$15.49

130b

Deep Black, Front Compression Spring

706205251

$100.49

130c

Deep Black, Front Compression Spring

706205254

$163.99

130d

Front Suspension Wiring Harness Ass'y

710009322

$229.99

130d3

O Ring

293300213

$2.51

130g

Socket Head Screw M5 X 10

205551060

$1.58

135a

RH Front Adjustable Shock Absorber | Includes 135a to 135a4

706206209

Unavailable

135a1

Connector Support

706203583

$13.49

135a4

Anchorage

706204583

$15.49

135b

Deep Black, Front Compression Spring

706205251

$100.49

135c

Deep Black, Front Compression Spring

706205254

$163.99

135d

Front Suspension Wiring Harness Ass'y

710009322

$229.99

135d3

O Ring

293300213

$2.51

135g

Socket Head Screw M5 X 10

205551060

$1.58

790

Hose Support

706205606

$1.39
