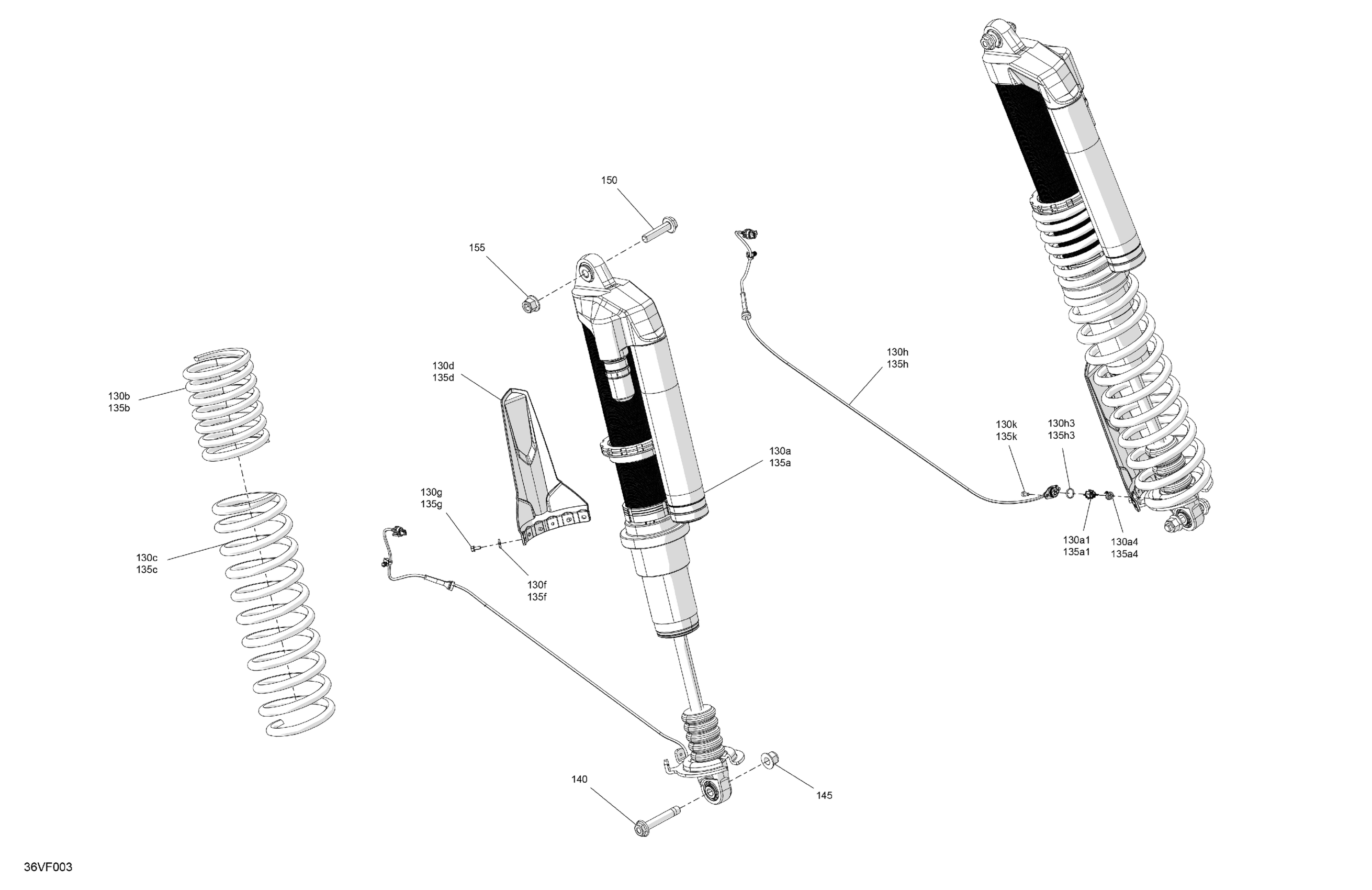

Can-Am Maverick R - 996NT - XRS SAS - 7ATJ - Timeless Black Metallic - 77" Width - CALI, 2026 Suspension - Rear Shocks Diagram

Description

Price

130a

LH Rear Adjustable Shock Absorber | Includes 130a to 130a4

706005889

Unavailable

130a1

Connector Support

706203583

$13.49

130a4

Anchorage

706204583

$15.49

130b

Deep Black, Rear Compression Spring

706005012

$100.49

130c

Deep Black, Compression Spring

706005129

$147.99

130d

Protector

706202215

$11.99

130f

Washer M5

250200025

$0.74

130g

Hex Flange Screw M5 X 11

210251150

$2.11

130h

Rear Suspension Wiring Harness Ass'y

710009865

$229.99

130h3

O Ring

293300213

$2.51

130k

Socket Head Screw M5 X 10

205551060

$1.58

135a

RH Rear Adjustable Shock Absorber | Includes 135a to 135a4

706005890

Unavailable

135a1

Connector Support

706203583

$13.49

135a4

Anchorage

706204583

$15.49

135b

Deep Black, Rear Compression Spring

706005012

$100.49

135c

Deep Black, Compression Spring

706005129

$147.99

135d

Protector

706202215

$11.99

135f

Washer M5

250200025

$0.74

135g

Hex Flange Screw M5 X 11

210251150

$2.11

135h

Rear Suspension Wiring Harness Ass'y

710009865

$229.99

135h3

O Ring

293300213

$2.51

135k

Socket Head Screw M5 X 10

205551060

$1.58

140

Hex. Flange Screw Din.6921 M14X2X85

250001176

$7.41

145

Hex. Flange Elastic Nut M14

250001166

$12.71

150

Hex. Flange Screw Din.6921 M14X2X60

250001174

$7.41

155

Hex. Flange Elastic Nut M14

250001166

$12.71
