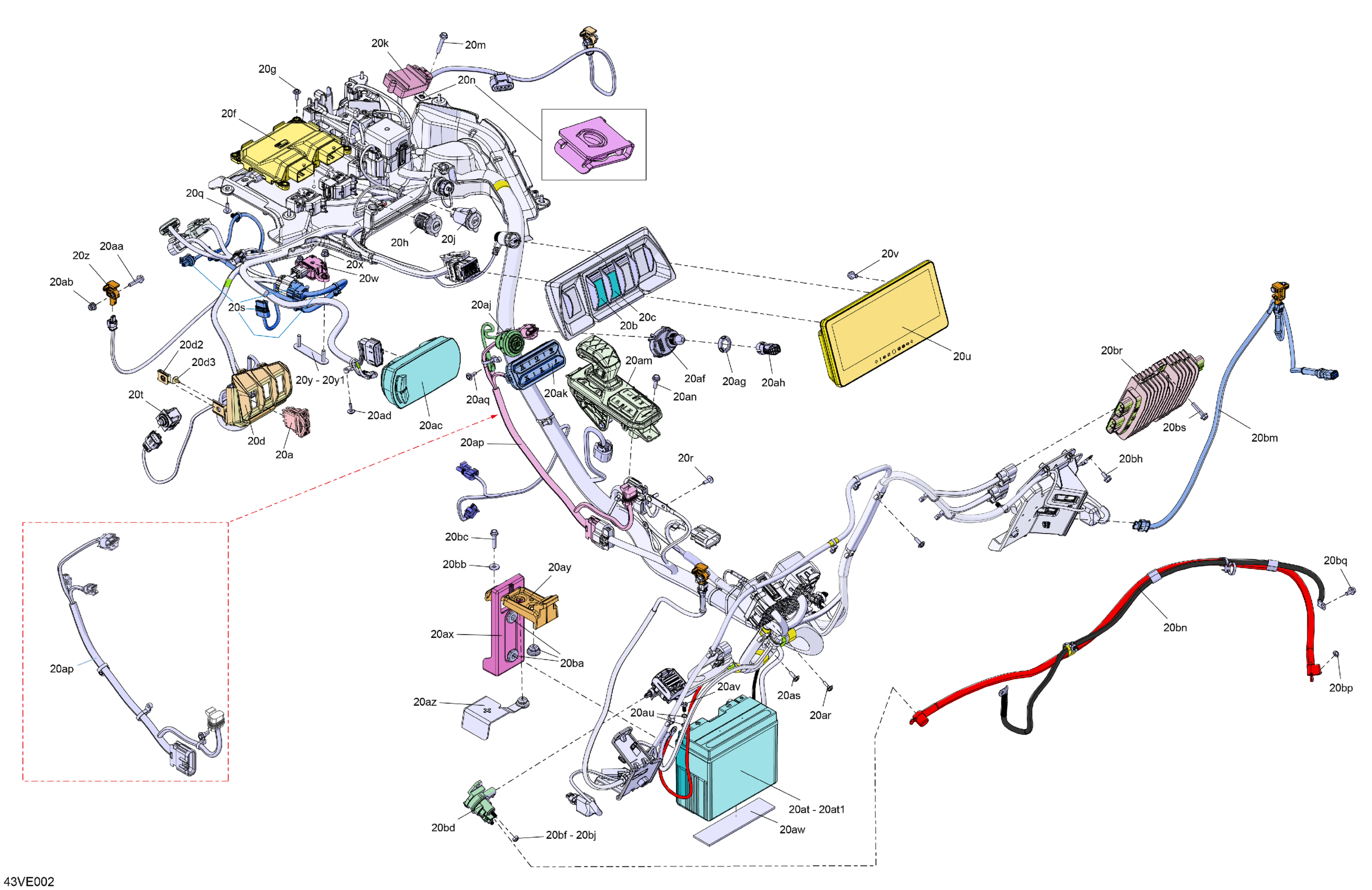

Can-Am Maverick R - 996NT - XRS - 6JSP - Dusty Navy - 77" Width, 2025 Electric - Central Electric Diagram

#

Description
Price

20a

Light Switch

710007663

$47.49

20b

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$8.85

20c

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$8.85

20d

Switch Support Ass'y | Includes 20d to 20d3

710009476

$18.99

20d2

Panel Nut M6 X 1.0

250100208

$1.46

20d3

Plastite Screw M4 X 10

250000805

$2.11

20f

BCM Moldule OPT #1

710010598

$939.99

20g

Screw PT Type K-50 X 16

250000959

$2.11

20h

USB Outlet

219400510

$42.99

20j

12V Power Outlet

710005374

$33.99

20k

GPS

278004506

$109.99

20m

Hex. Flange Screw S.Grip M6 X 35

207563544

$2.11

20n

Panel Nut M6 X 1.0

250100208

$1.46

20q

Screw PT Type K-50 X 16

250000959

$2.11

20r

Screw PT Type K-50 X 16

250000959

$2.11

20s

Accelerator Pedal Wiring Harness

710008927

$229.99

20t

Door Switch

710010023

$76.99

20u

Multifunction Gauge 10

710010375

$2,039.99

20v

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.90

20w

Yaw Rate Sensor

710005998

$419.99

20x

Hex. Flange Elastic Nut M6

233261494

$1.58

20y

Sensor Support | Includes 1825 to 1825a

710009676

$17.99

20y1

Sensor Support ED

710009651

$17.99

20z

Acceleration Sensor

710004221

$69.99

20aa

Hex. Flange Screw M6 X 25

207662554

$1.48

20ab

Hex. Flange Elastic Nut M6

233261494

$1.58

20ac

Multifunction Compact Gauge

710008298

$389.99

20ad

Screw M4 X 16

250000725

$3.49

20af

Terminal DESS CAN | CARB Vehicle

710008832

$72.99

20ag

Specialized Nut

278004274

$3.28

20ah

Grey Key RFID | Except Model Europe, Except T3

710004964

$63.49

20aj

Start-Stop Button | Not Shown

710005213

$60.49

20ak

Multifunction Switch

710010054

$126.99

20am

Electronic Gear Shift Lever

710007338

$329.99

20an

Hex. Flange Screw S.Grip M6 X 20

207562054

$2.11

20ap

Console Wiring Harness

710007667

$104.99

20aq

Screw PT Type K-50 X 16

250000959

$2.11

20ar

Screw M4 X 16

250000725

$3.49

20as

Screw PT Type K-50 X 16

250000959

$2.11

20at

Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73

410301203

$154.99

20at1

Battery Bolt Kit

250000282

$7.29

20au

Washer | Not Shown

710009082

$1.29

20av

Screw | Not Shown

710009084

$1.59

20aw

Rubber Pad

293830126

$13.76

20ax

Fixation Plate

710004788

$11.49

20ay

Battery Support

710009128

$8.99

20az

Battery Cable Cap

710006471

$2.59

20ba

Stopper Rubber

705014429

$5.95

20bb

Flat Washer 6 mm

234062410

$0.77

20bc

Hex. Flange Screw M6 X 30, Scotch Grip

207563044

$4.44

20bd

Starter Relay

278003012

$42.49

20bf

Elastic Stop Nut M6, Brass

232561200

$4.23

20bh

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.90

20bj

Elastic Stop Nut M6, Brass

232561200

$4.23

20bk

Screw PT Type K-50 X 16

250000959

$2.11

20bm

Junction Wiring Harness

710008618

$439.99

20bn

Starter Wiring Harness

710007347

$104.99

20bp

Elastic Stop Nut M6, Brass

232561200

$4.23

20bq

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.90

20br

Voltage Regulator

710007558

$360.49

20bs

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.11
