08- Electric - Front Section

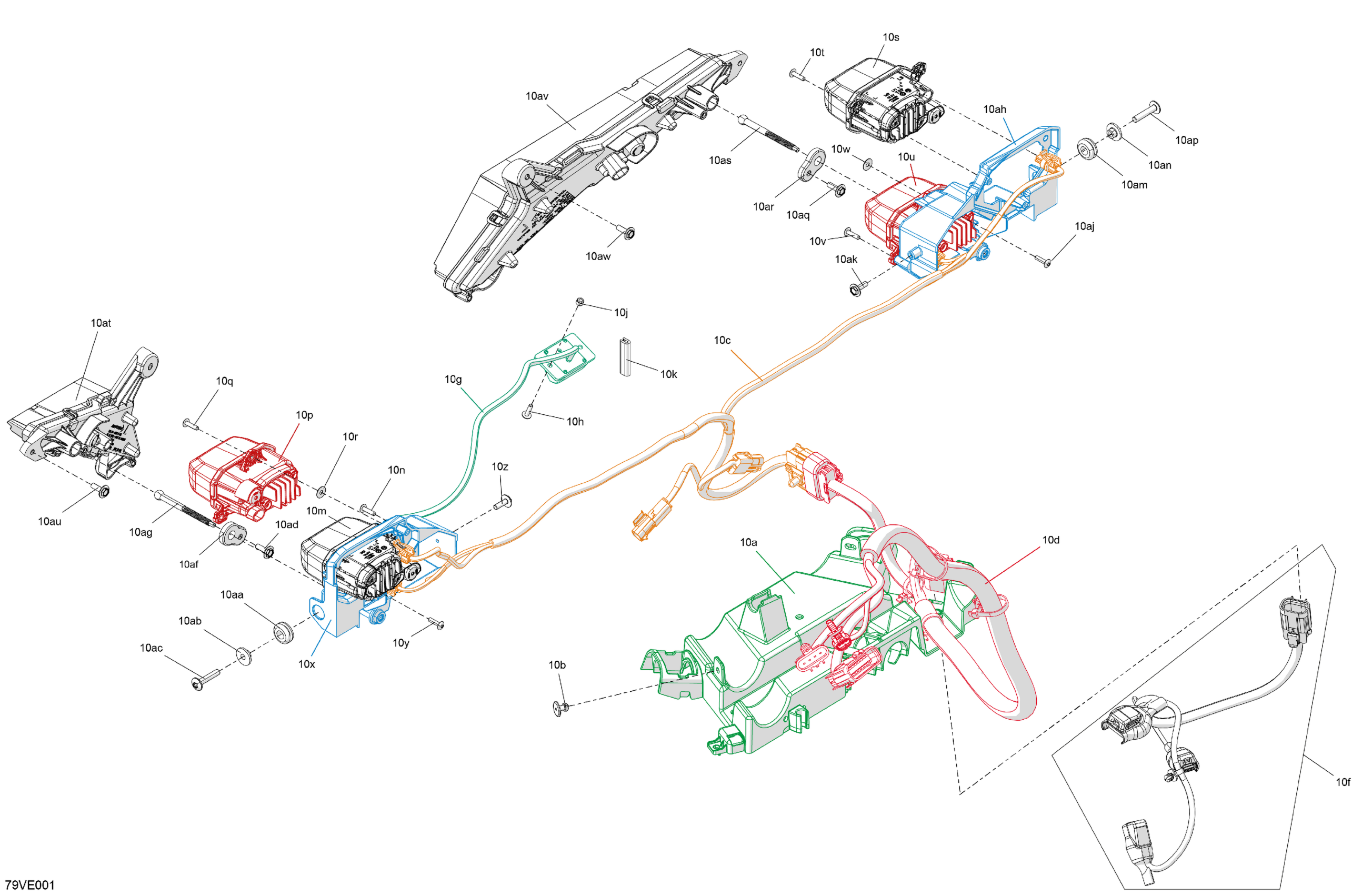

Can-Am North America - Maverick R - 996NT - XRS - 6JSM - Dusty Navy - 77" Width, 2025 08- Electric - Front Section Diagram
#
10a
Multi Porpuse Support
710007813
Unavailable
10b
Black, Pop Rivet 3/16 X ,550
293150292
Unavailable
10c
Headlight Wiring Harness
710007725
Unavailable
10d
Junction Wiring Harness
710008192
Unavailable
10f
Differential Wiring Harness
710007357
Unavailable
10g
Camera
710007892
Unavailable
10h
Torx Head Screw M4 X 16
250000797
Unavailable
10j
Elastic Stop Nut M4
232541484
Unavailable
10k
Edge Cut Trim 1000Mm
219704548
Unavailable
10m
Low Beam Light
710008089
Unavailable
10n
Torx-Truss Pt K40 X 16
250000759
Unavailable
10p
High Beam Light
710006911
Unavailable
10q
Torx-Truss Pt K40 X 16
250000759
Unavailable
10r
Washer Cal
517309027
Unavailable
10s
Low Beam Light
710008089
Unavailable
10t
Torx-Truss Pt K40 X 16
250000759
Unavailable
10u
High Beam Light
710006911
Unavailable
10v
Torx-Truss Pt K40 X 16
250000759
Unavailable
10w
Washer Cal
517309027
Unavailable
10x
LH Front Headlight Support
708500013
Unavailable
10y
Torx-Truss Pt K40 X 16
250000759
Unavailable
10z
Screw PT Type K-50 X 16
250000959
Unavailable
10aa
Overmolded Grommet
293720130
Unavailable
10ab
Shoulder Bushing
710004749
Unavailable
10ac
Stainless, Torx Screw M6 X 30
250000842
Unavailable
10ad
Screw PT Type K-50 X 16
250000959
Unavailable
10af
Ball Socket
293900157
Unavailable
10ag
Ajustment Screw
710005837
Unavailable
10ah
RH Front Headlight Support
708500014
Unavailable
10aj
Torx-Truss Pt K40 X 16
250000759
Unavailable
10ak
Screw PT Type K-50 X 16
250000959
Unavailable
10am
Overmolded Grommet
293720130
Unavailable
10an
Shoulder Bushing
710004749
Unavailable
10ap
Stainless, Torx Screw M6 X 30
250000842
Unavailable
10aq
Screw PT Type K-50 X 16
250000959
Unavailable
10ar
Ball Socket
293900157
Unavailable
10as
Ajustment Screw
710005837
Unavailable
10at
LH Auxiliary LED Light
710007638
Unavailable
10au
Screw PT Type K-50 X 16
250000959
Unavailable
10av
RH Auxiliary LED Light
710007644
Unavailable
10aw
Screw PT Type K-50 X 16
250000959
Unavailable
