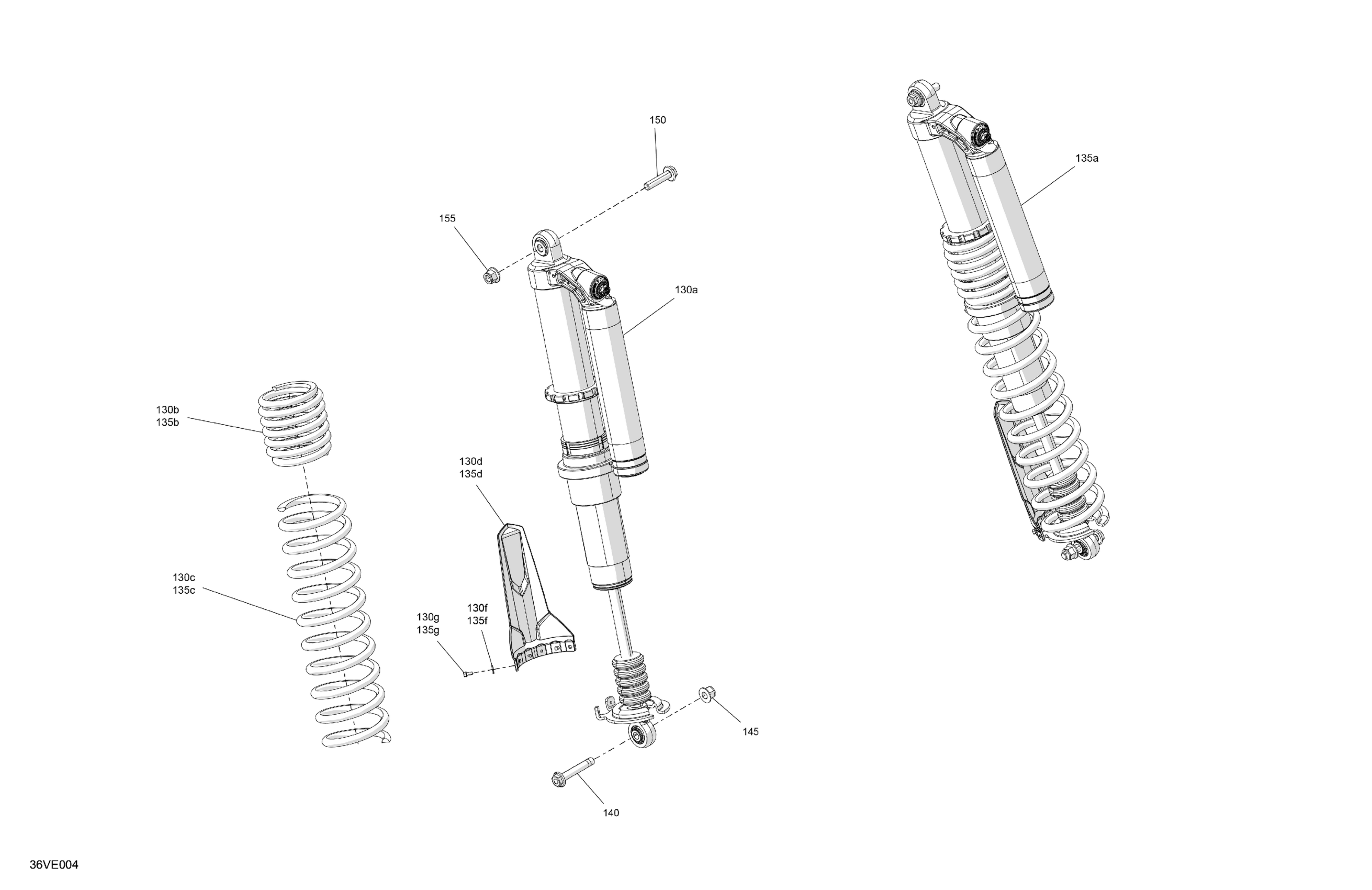

Can-Am Maverick R - 996NT - XRS - 6JSM - Dusty Navy - 77" Width, 2025 Suspension - Rear Shocks Diagram

Description

Price

130a

Rear Shock Absorber | Includes 130a to 130a5

706004201

$1,699.99

130b

Legion Red, Rear Compression Spring

706006156

$147.99

130c

Legion Red, Compression Spring

706005561

$153.49

130d

Protector

706202215

$11.99

130f

Washer M5

250200025

$0.74

130g

Hex Flange Screw M5 X 11

210251150

$2.11

135a

Rear Shock Absorber | Includes 130a to 130a5

706004201

$1,699.99

135b

Legion Red, Rear Compression Spring

706006156

$147.99

135c

Legion Red, Compression Spring

706005561

$153.49

135d

Protector

706202215

$11.99

135f

Washer M5

250200025

$0.74

135g

Hex Flange Screw M5 X 11

210251150

$2.11

140

Hex. Flange Screw Din.6921 M14X2X85

250001176

$7.41

145

Hex. Flange Elastic Nut M14

250001166

$12.71

150

Hex. Flange Screw Din.6921 M14X2X60

250001174

$7.41

155

Hex. Flange Elastic Nut M14

250001166

$12.71
