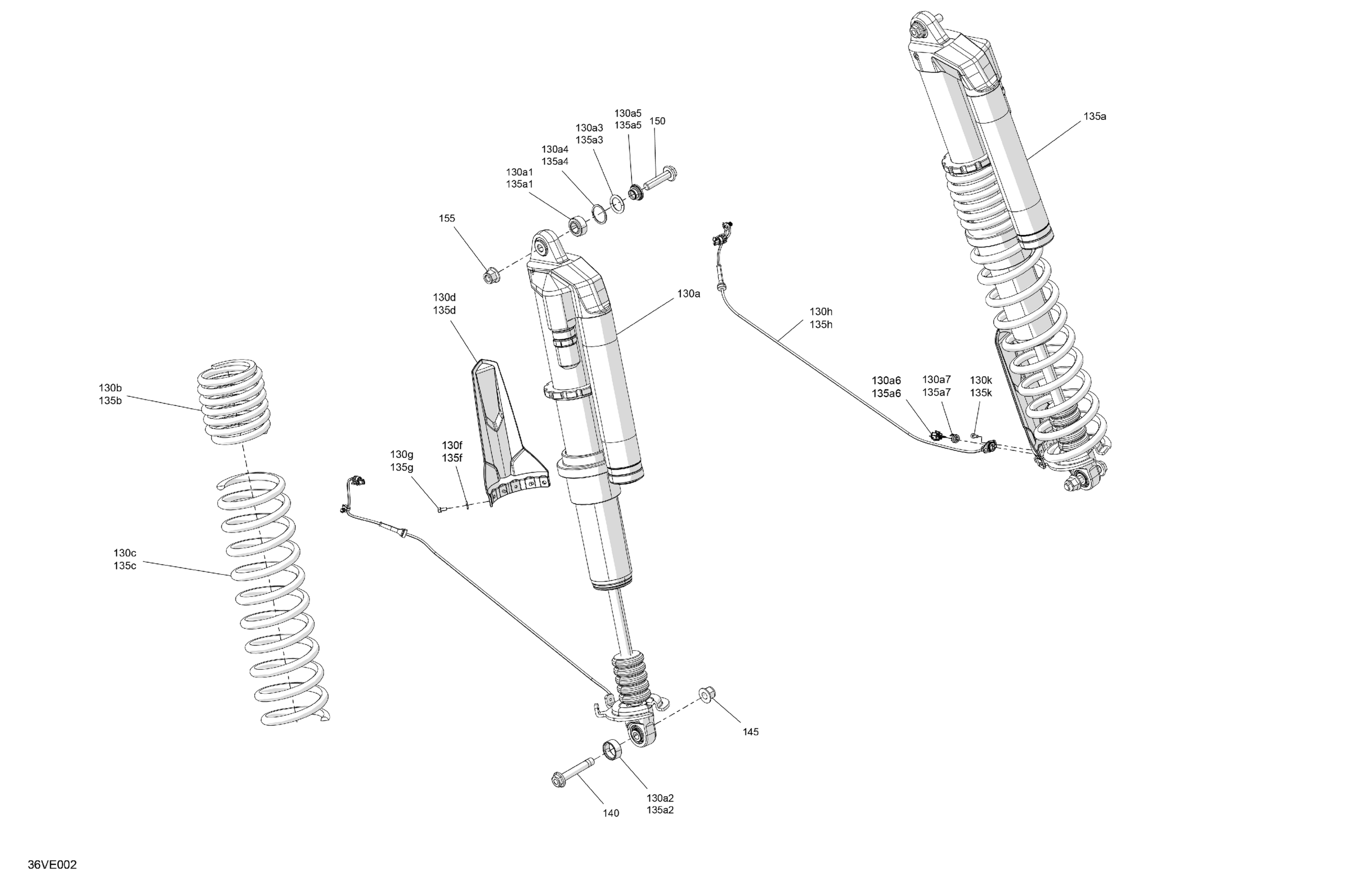

Can-Am Maverick R - 996NT - XRS - 6JSJ - Timeless Black Metallic - 77" Width, 2025 Suspension - Rear Shocks Diagram

Description

Price

130a

LH Rear Shock Absorber Adjustable | Includes 130a to 130a7

706003615

$2,219.99

130a1

Spherial Bearing

715900916

$76.12

130a2

Spherial Bearing

715900917

$80.74

130a3

O-Ring Bushing

715900918

$7.37

130a4

Retaining Ring

715900919

$7.62

130a5

Reducer

715900920

$27.66

130a6

Anchorage

706204583

$14.75

130a7

Connector Support

706203583

$12.91

130b

Deep Black, Rear Compression Spring

706005012

$96.89

130c

Deep Black, Compression Spring

706005129

$143.05

130d

Protector

706202215

$9.23

130f

Washer M5

250200025

$0.61

130g

Hex Flange Screw M5 X 11

210251150

$1.74

130h

Rear Suspension Wiring Harness Ass'y

710008262

$216.89

130k

Socket Head Screw M5 X 10

205551060

$1.30

135a

RH Rear Shock Absorber Adjustable | Includes 135a to 135a7

706004732

$2,219.99

135a1

Spherial Bearing

715900916

$76.12

135a2

Spherial Bearing

715900917

$80.74

135a3

O-Ring Bushing

715900918

$7.37

135a4

Retaining Ring

715900919

$7.62

135a5

Reducer

715900920

$27.66

135a6

Anchorage

706204583

$14.75

135a7

Connector Support

706203583

$12.91

135b

Deep Black, Rear Compression Spring

706005012

$96.89

135c

Deep Black, Compression Spring

706005129

$143.05

135d

Protector

706202215

$9.23

135f

Washer M5

250200025

$0.61

135g

Hex Flange Screw M5 X 11

210251150

$1.74

135h

Rear Suspension Wiring Harness Ass'y

710008262

$216.89

135k

Socket Head Screw M5 X 10

205551060

$1.30

140

Hex. Flange Screw Din.6921 M14X2X85

250001176

$6.08

145

Hex. Flange Elastic Nut M14

250001166

$10.56

150

Hex. Flange Screw Din.6921 M14X2X60

250001174

$6.08

155

Hex. Flange Elastic Nut M14

250001166

$10.56
