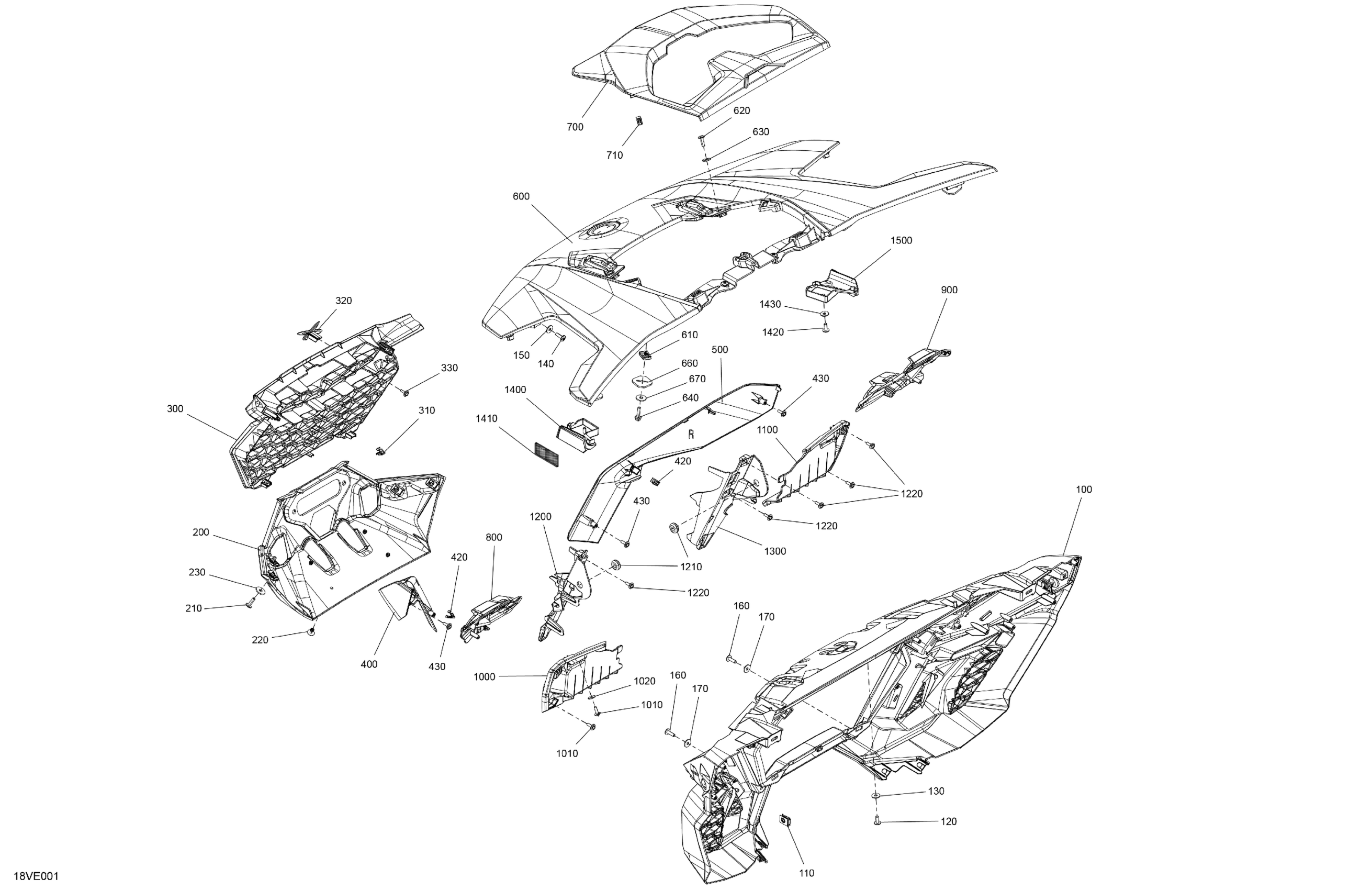

Can-Am Maverick R - 996NT - XRS - 6JSD - Neo Yellow - 77" Width, 2025 Body - Hood Diagram

Description

Price

100

Front Fascia

708500006

$74.99

110

Panel Nut M6 X 1.0

250100208

$1.46

120

Torx Truss Screw M6 X 16

250000721

$1.69

130

Stainless Steel Flat Washer

234062670

$2.11

140

Torx Screw M6 X 20

250000722

$1.68

150

Stainless Steel Flat Washer

234062670

$2.11

160

Torx Screw M6 X 20

250000722

$1.68

170

Stainless Steel Flat Washer

234062670

$2.11

200

Front Deflector

708500012

$76.99

210

Torx Screw M6 X 20

250000722

$1.68

220

Pop Rivet 3/16”

293150108

$1.19

230

Stainless Steel Flat Washer

234062670

$2.11

300

Deep Black, Grille

708500007

$54.99

310

Clip

517306478

$1.09

320

Emblem Logo BRP

705017645

$12.99

330

Screw M4 X 16

250000725

$3.49

400

Neo Yellow, LH Front Fairing Trim

708500035

$21.49

420

Clip

517306478

$1.09

430

Screw PT Type K-50 X 16

250000959

$2.11

500

Neo Yellow, RH Front Fairing Trim

708500036

$21.49

600

Neo Yellow, Hood

708500002

$549.99

610

Panel Nut M6 X 1.0

250100208

$1.46

620

Torx Screw M6 X 20

250000722

$1.68

630

Stainless Steel Flat Washer

234062670

$2.11

640

Hex. Flange Screw M6 X 25

207562544

$1.69

660

Support Plate

705003841

$0.99

670

Washer M6

250200029

$2.50

700

Deep Black, Central Hood Trim

708500003

$109.99

710

Clip

517306478

$1.09

800

LH Front Headlight Trim

708500018

$37.99

900

RH Front Headlight Trim

708500019

$37.99

1000

LH Front Body Panel Cap

708500024

$22.99

1010

Screw PT Type K-50 X 16

250000959

$2.11

1020

Washer M5

250200025

$0.74

1100

RH Front Body Panel Cap

708500025

$22.99

1200

LH Radiator Deflector

708500021

$19.99

1210

Overmolded Grommet

293720130

$4.69

1220

Screw PT Type K-50 X 16

250000959

$2.11

1300

RH Radiator Deflector

708500022

$19.99

1400

LH Front Reflector Support

708500029

$4.29

1410

Amber, Reflector

520002680

$20.99

1420

Torx Truss Screw M6 X 16

250000721

$1.69

1430

Stainless Steel Flat Washer

234062670

$2.11

1500

RH Front Reflector Support

708500030

$4.29
