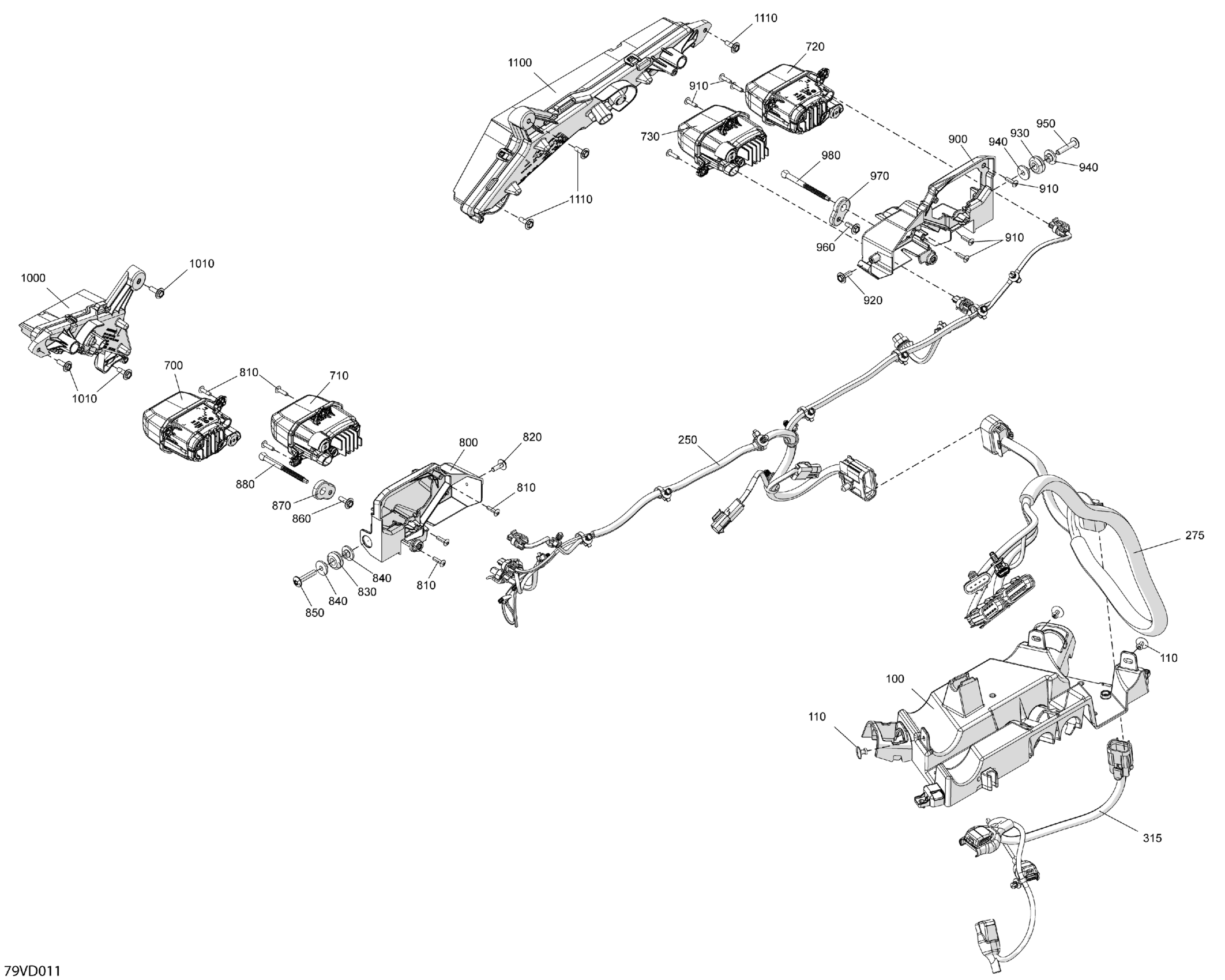

Can-Am Maverick R 996NT - X - 8GRF - Timeless Black Metallic - 77" Width CALI, 2024 Electric - Front Section Diagram

Description

Price

100

Multi Porpuse Support

710007813

$16.89

110

Black, Pop Rivet 3/16 X ,550

293150292

$0.86

250

Headlight Wiring Harness

710007725

$92.28

275

Junction Wiring Harness

710008192

$115.35

315

Differential Wiring Harness

710007357

$46.12

700

Low Beam Light

710008089

$120.74

710

High Beam Light

710006911

$120.74

715

Washer Cal

517309027

$5.68

720

Low Beam Light

710008089

$120.74

730

High Beam Light

710006911

$120.74

735

Washer Cal

517309027

$5.68

800

LH Front Headlight Support

708500013

$42.28

810

Torx-Truss Pt K40 X 16

250000759

$1.74

820

Screw PT Type K-50 X 16

250000959

$1.74

830

Overmolded Grommet

293720130

$4.38

840

Shoulder Bushing

710004749

$2.75

850

Stainless, Torx Screw M6 X 30

250000842

$1.74

860

Screw PT Type K-50 X 16

250000959

$1.74

870

Ball Socket

293900157

$8.45

880

Ajustment Screw

710005837

$6.45

900

RH Front Headlight Support

708500014

$42.28

910

Torx-Truss Pt K40 X 16

250000759

$1.74

920

Screw PT Type K-50 X 16

250000959

$1.74

930

Overmolded Grommet

293720130

$4.38

940

Shoulder Bushing

710004749

$2.75

950

Stainless, Torx Screw M6 X 30

250000842

$1.74

960

Screw PT Type K-50 X 16

250000959

$1.74

970

Ball Socket

293900157

$8.45

980

Ajustment Screw

710005837

$6.45

1000

LH Auxiliary LED Light

710007638

$464.58

1010

Screw PT Type K-50 X 16

250000959

$1.74

1100

RH Auxiliary LED Light

710007644

$464.58

1110

Screw PT Type K-50 X 16

250000959

$1.74
