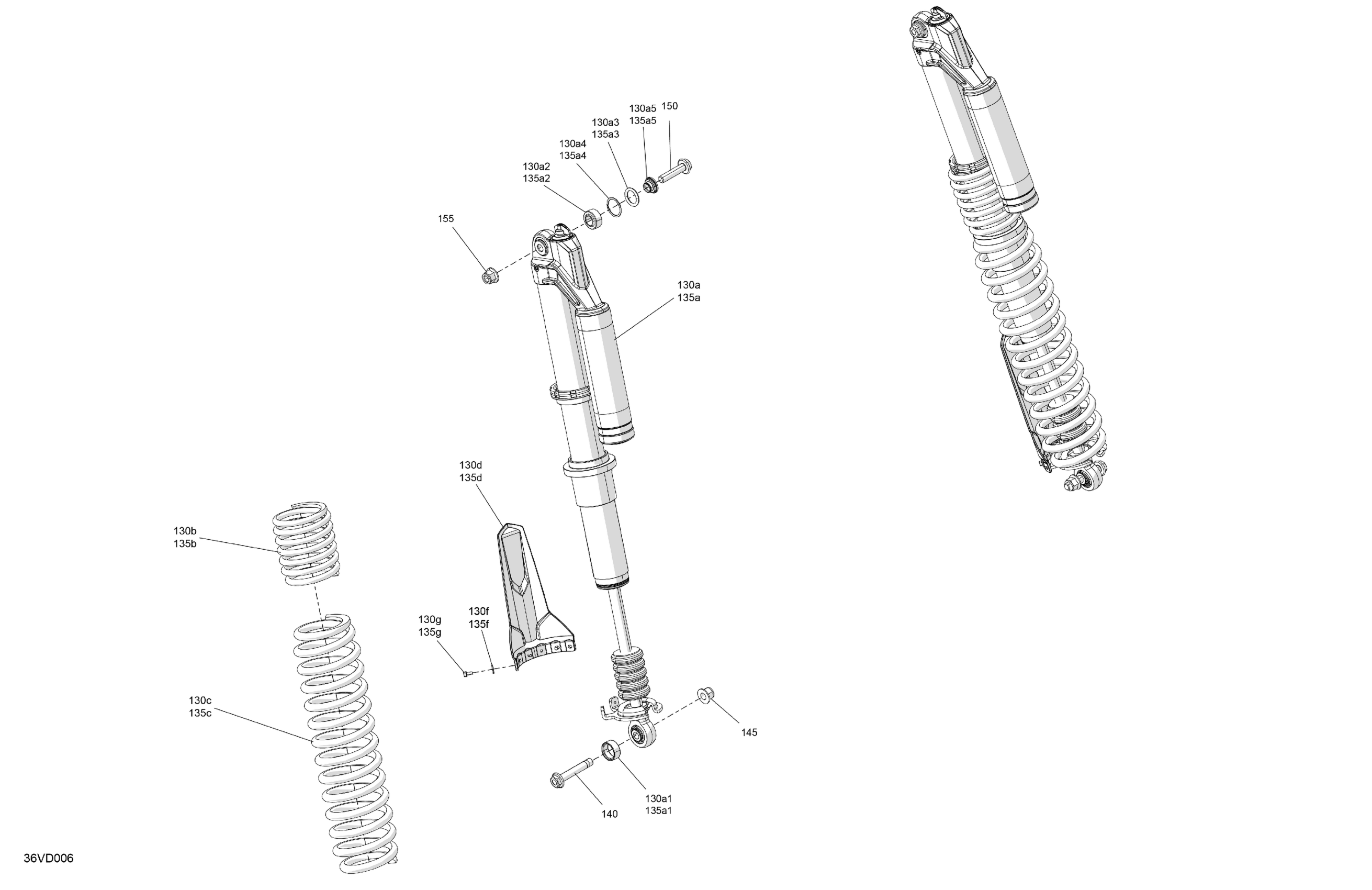

Can-Am Maverick R 996NT - X - 8GRF - Timeless Black Metallic - 77" Width CALI, 2024 Suspension - Rear Shocks Diagram

Description

Price

130a

Rear Shock Absorber | Includes 130a to 130a5

706004736

$1,449.99

130a1

Spherial Bearing

715900917

$80.74

130a2

Spherial Bearing

715900921

$68.43

130a3

O-Ring Bushing

715900918

$7.37

130a4

Retaining Ring

715900919

$7.62

130a5

Reducer

715900920

$27.66

130b

Deep Black, Compression Spring

706205339

$96.89

130c

Deep Black, Rear Compression Spring

706005015

$96.89

130d

Protector

706202215

$9.23

130f

Washer M5

250200025

$0.61

130g

Hex Flange Screw M5 X 11

210251150

$1.74

135a

Rear Shock Absorber | Includes 130a to 130a5

706004736

$1,449.99

135a1

Spherial Bearing

715900917

$80.74

135a2

Spherial Bearing

715900921

$68.43

135a3

O-Ring Bushing

715900918

$7.37

135a4

Retaining Ring

715900919

$7.62

135a5

Reducer

715900920

$27.66

135b

Deep Black, Compression Spring

706205339

$96.89

135c

Deep Black, Rear Compression Spring

706005015

$96.89

135d

Protector

706202215

$9.23

135f

Washer M5

250200025

$0.61

135g

Hex Flange Screw M5 X 11

210251150

$1.74

140

Hex. Flange Screw Din.6921 M14X2X85

250001176

$6.08

145

Hex. Flange Elastic Nut M14

250001166

$10.56

150

Hex. Flange Screw Din.6921 M14X2X60

250001174

$6.08

155

Hex. Flange Elastic Nut M14

250001166

$10.56
