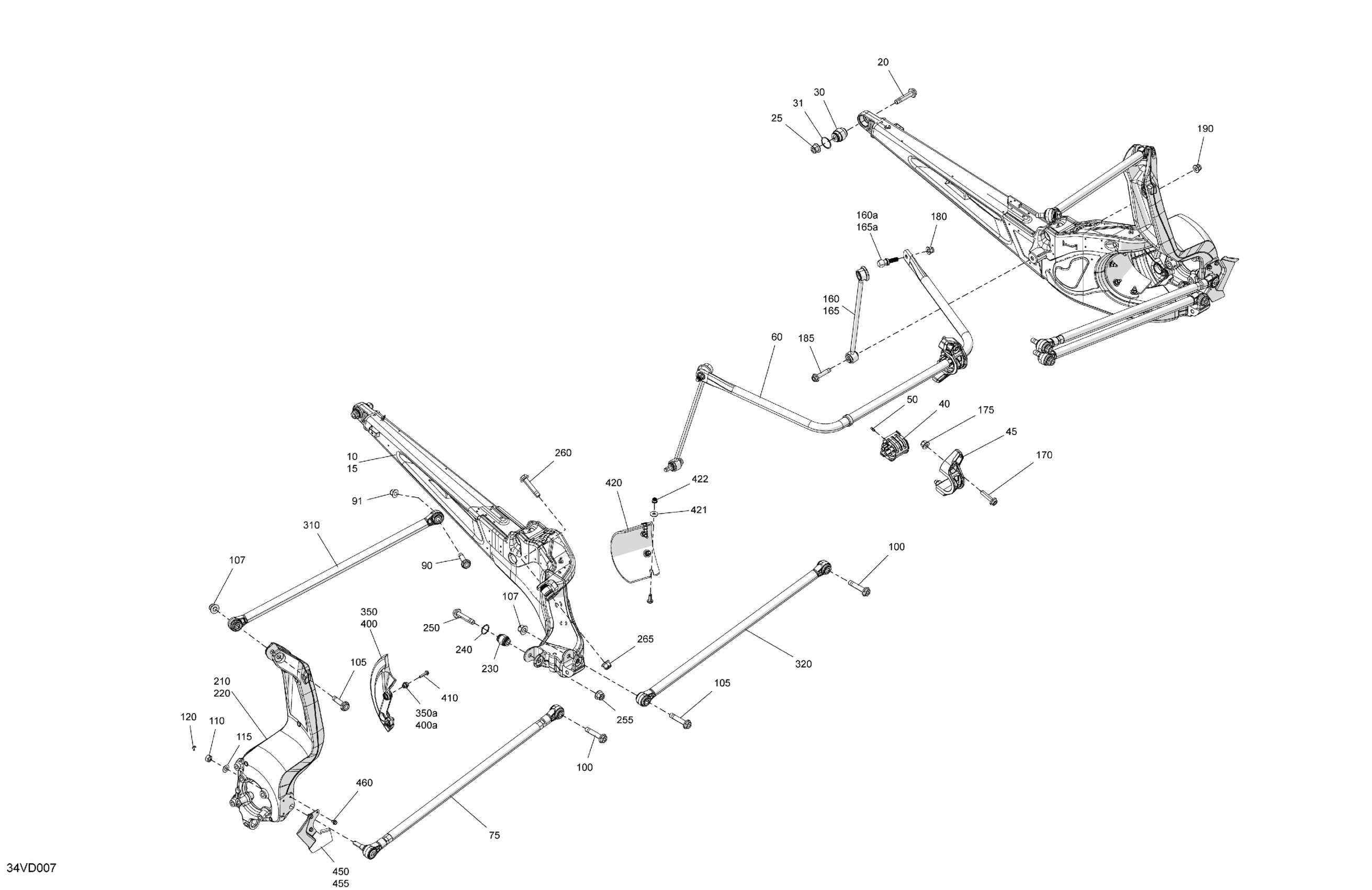

Can-Am Maverick R 996NT - X - 8GRD - Legion Red - 77" Width CALI, 2024 Suspension - Rear Components Diagram

#

Description
Price

10

Legion Red, LH Rear Suspension Arm

706005496

$837.28

15

Legion Red, RH Rear Suspension Arm

706005497

$837.28

20

Hex. Flange Screw Din.6921 M14X2X70

250001175

$6.99

25

Hex. Flange Elastic Nut M14

250001166

$12.06

30

Ball Joint

706005389

$44.75

31

Retaining Ring

293370166

$6.75

40

Stabilizer Bar Bushing

706005418

$13.52

45

Clamp

706004846

$29.82

50

Grease Fitting

408200700

$3.21

60

Stabilizer Bar Ass'y

706005757

$187.28

75

Central Suspension Arm Ass'y

706005030

$167.13

90

Hex. Flange Screw Din.6921 M14X2X70

250001175

$6.99

91

Hex. Flange Elastic Nut M14

250001166

$12.06

100

Hex. Flange Screw Din.6921 M14X2X70

250001175

$6.99

105

Hex. Flange Screw Din.6921 M14X2X70

250001175

$6.99

107

Hex. Flange Elastic Nut M14

250001166

$12.06

110

Hex Nut M12

250100239

$1.88

115

Hardened Washer

706200281

$2.69

120

Cotter Pin

211400017

$0.28

160

LH Stabilizer Link Bar | Includes 160 to 160a

706005360

$147.73

160a

Radial Joint

706002135

$40.27

165

RH Stabilizer Link Bar | Includes 165 to 165a

706005361

$147.73

165a

Radial Joint

706002135

$40.27

170

Screw Hex Flange M12 X 50

250001233

$6.21

175

Elastic Flange Nut M12

250001195

$2.46

180

Elastic Flange Nut M12

250001195

$2.46

185

Flange Screw M12 X 60

250000857

$6.99

190

Elastic Flange Nut M12

250001195

$2.46

210

LH Rear Knuckle Ass'y

715010038

$455.19

220

RH Rear Knuckle Ass'y

715010039

$455.19

230

Ball Joint | Not Shown

706004401

$40.27

240

Retaining Ring | Not Shown

293370165

$6.75

250

Hex. Flange Screw Din.6921 M14X2X70

250001175

$6.99

255

Hex. Flange Elastic Nut M14

250001166

$12.06

260

Hex. Flange Screw Din.6921 M14X2X70

250001175

$6.99

265

Hex. Flange Elastic Nut M14

250001166

$12.06

310

Upper Suspension Arm Ass'y

706005031

$147.73

320

Lower Suspension Arm Ass'y

706005032

$147.73

350

LH Rear Guard | Includes 350 to 350a

706004631

$47.73

350a

Spacer

706004805

Unavailable

400

RH Rear Guard | Includes 400 to 400a

706004632

$47.73

400a

Spacer

706004805

Unavailable

410

Hex. Flange Screw M6 X 30, Scotch Grip

207563044

$4.15

420

CV Joint Guard

706005486

$14.90

421

Stainless Steel Flat Washer

234082670

$2.00

422

Elastic Flange Nut M8

233281464

$0.96

450

LH Deflector

706004703

$13.99

455

RH Deflector

706004704

$13.99

460

Flange Screw M6 X 10, Scotch Grip

207561044

$6.76
