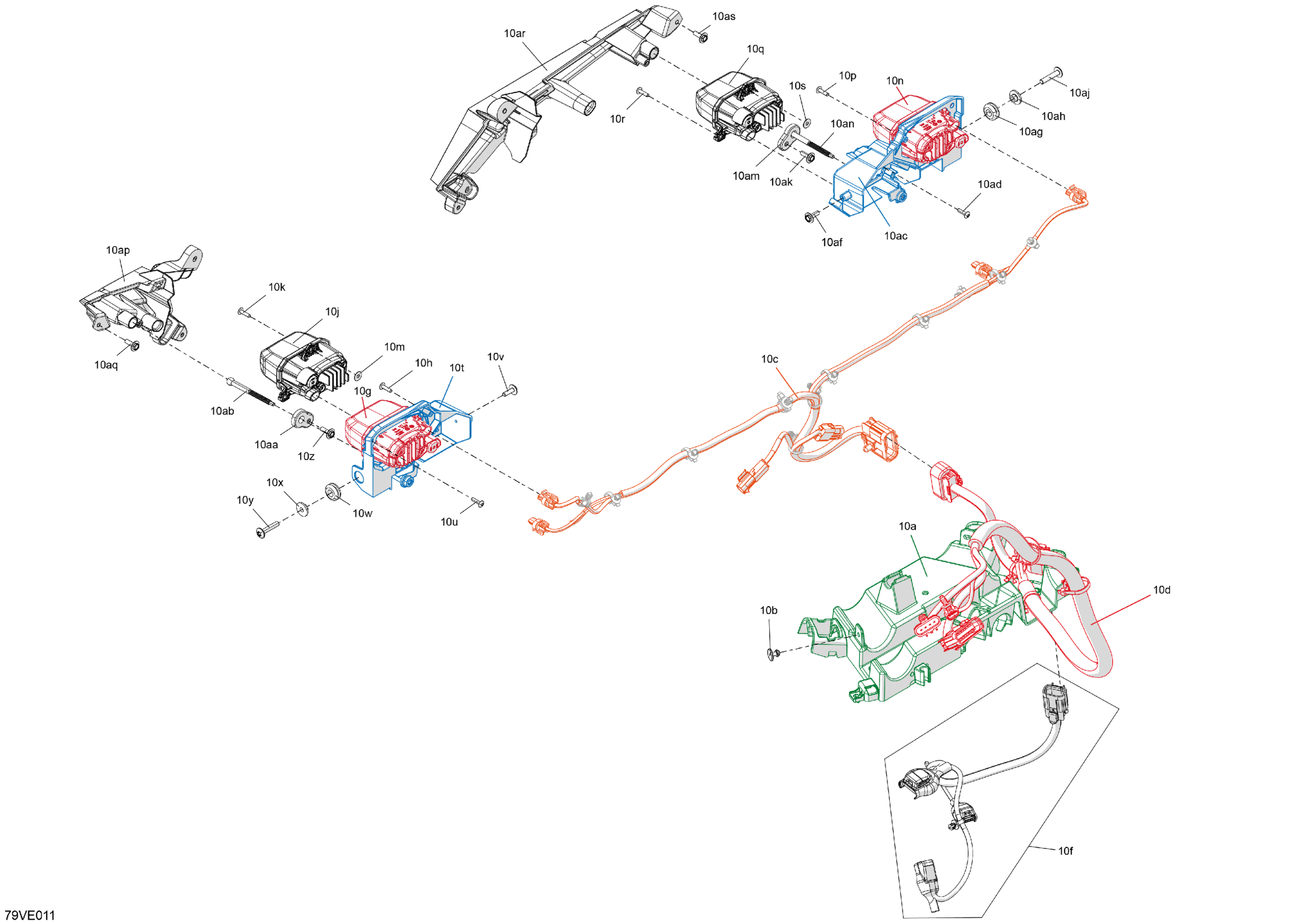

Can-Am Maverick R - 996NT - BASE - 9BSD - Catalyst Gray - 77" Width CALI, 2025 Electric - Front Section Diagram

Description

Price

10a

Multi Porpuse Support

710007813

$16.89

10b

Black, Pop Rivet 3/16 X ,550

293150292

$0.86

10c

Headlight Wiring Harness

710007725

$92.28

10d

Junction Wiring Harness

710008192

$115.35

10f

Differential Wiring Harness

710007357

$46.12

10g

Low Beam Light

710008089

$120.74

10h

Torx-Truss Pt K40 X 16

250000759

$1.74

10j

High Beam Light

710006911

$120.74

10k

Torx-Truss Pt K40 X 16

250000759

$1.74

10m

Washer Cal

517309027

$5.68

10n

Low Beam Light

710008089

$120.74

10p

Torx-Truss Pt K40 X 16

250000759

$1.74

10q

High Beam Light

710006911

$120.74

10r

Torx-Truss Pt K40 X 16

250000759

$1.74

10s

Washer Cal

517309027

$5.68

10t

LH Front Headlight Support

708500013

$42.28

10u

Torx-Truss Pt K40 X 16

250000759

$1.74

10v

Screw PT Type K-50 X 16

250000959

$1.74

10w

Overmolded Grommet

293720130

$4.38

10x

Shoulder Bushing

710004749

$2.75

10y

Stainless, Torx Screw M6 X 30

250000842

$1.74

10z

Screw PT Type K-50 X 16

250000959

$1.74

10aa

Ball Socket

293900157

$8.45

10ab

Ajustment Screw

710005837

$6.45

10ac

RH Front Headlight Support

708500014

$42.28

10ad

Torx-Truss Pt K40 X 16

250000759

$1.74

10af

Screw PT Type K-50 X 16

250000959

$1.74

10ag

Overmolded Grommet

293720130

$4.38

10ah

Shoulder Bushing

710004749

$2.75

10aj

Stainless, Torx Screw M6 X 30

250000842

$1.74

10ak

Screw PT Type K-50 X 16

250000959

$1.74

10am

Ball Socket

293900157

$8.45

10an

Ajustment Screw

710005837

$6.45

10ap

LH Front Auxiliary Headlight Trim

710007908

$40.74

10aq

Screw PT Type K-50 X 16

250000959

$1.74

10ar

RH Front Auxiliary Headlight Trim

710007909

$40.74

10as

Screw PT Type K-50 X 16

250000959

$1.74
