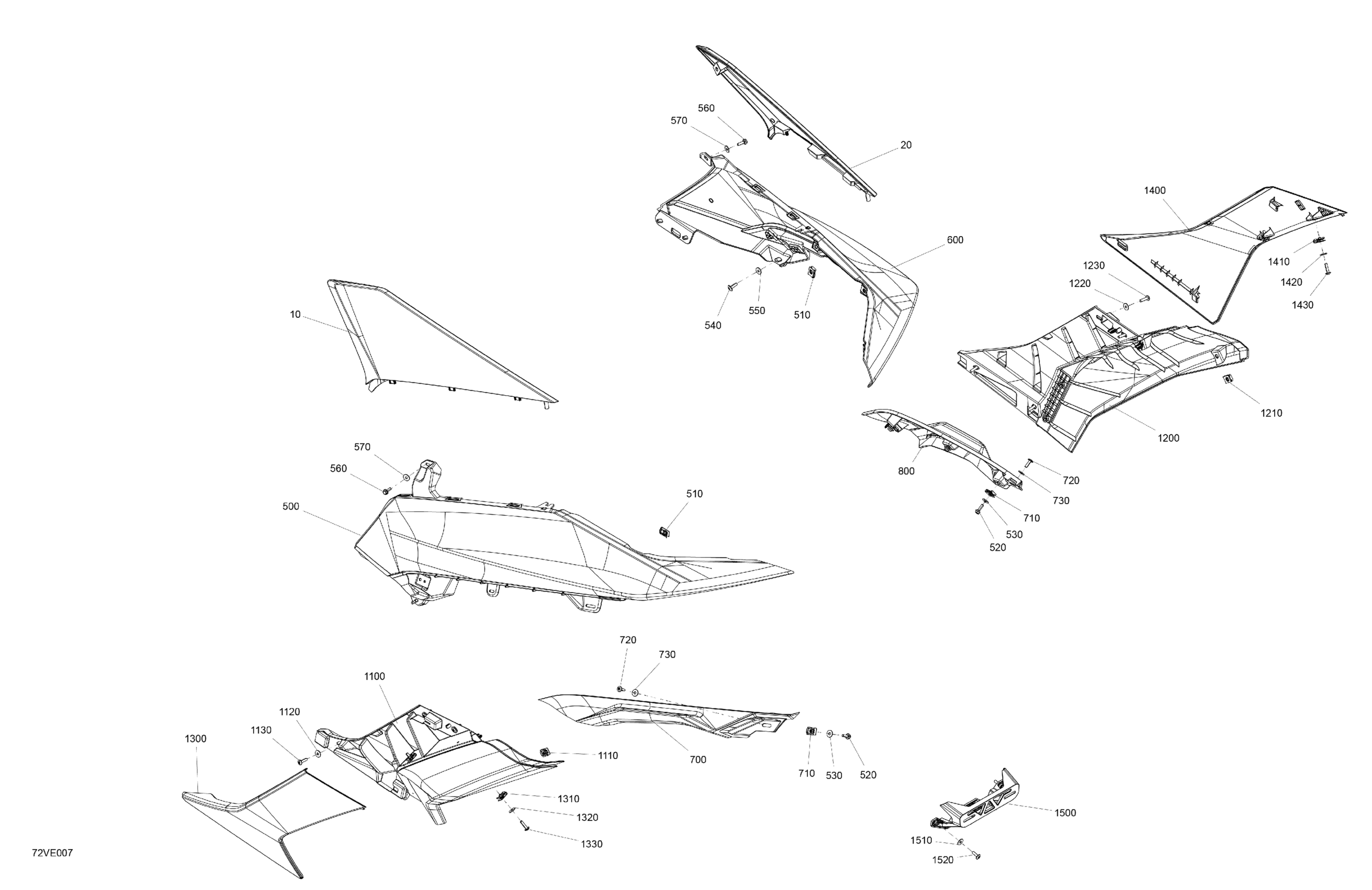

Can-Am Maverick R - 996NT - BASE - 9BSD - Catalyst Gray - 77" Width CALI, 2025 Body - Rear Section Diagram

Description

Price

Catalyst Gray, LH Exterior Box Panel

708305043

$109.99

Catalyst Gray, RH Exterior Box Panel

708305044

$109.99

500

Catalyst Gray, LH Rear Fender

708304308

$204.99

510

Panel Nut M6 X 1.0

250100208

$1.46

520

Hex. Flange Screw M6 X 20

207662054

$1.01

530

Stainless Steel Flat Washer

234062670

$2.11

540

Torx Truss Screw M6 X 25

250000807

$2.11

550

Stainless Steel Flat Washer

234062670

$2.11

560

Hex. Flange Screw M6 X 20

207662054

$1.01

570

Stainless Steel Flat Washer

234062670

$2.11

600

Catalyst Gray, RH Rear Fender

708304309

$204.99

700

LH Rear Mud Guard

705015534

$56.99

710

Panel Nut M6 X 1.0

250100208

$1.46

720

Torx Screw M6 X 20

250000722

$1.68

730

Stainless Steel Flat Washer

234062670

$2.11

800

RH Rear Mud Guard

705015535

$56.99

1100

LH Rear Mud Guard

705016469

$56.99

1110

Panel Nut M6 X 1.0

250100208

$1.46

1120

Stainless Steel Flat Washer

234062670

$2.11

1130

Torx Truss Screw M6 X 25

250000807

$2.11

1200

RH Rear Mud Guard

705016470

$56.99

1210

Panel Nut M6 X 1.0

250100208

$1.46

1220

Stainless Steel Flat Washer

234062670

$2.11

1230

Torx Truss Screw M6 X 25

250000807

$2.11

1300

Catalyst Gray, LH Lower Body Panel

705015538

$73.99

1310

Panel Nut M6 X 1.0

250100208

$1.46

1320

Stainless Steel Flat Washer

234062670

$2.11

1330

Torx Truss Screw M6 X 25

250000807

$2.11

1400

Catalyst Gray, RH Lower Body Panel

705015539

$73.99

1410

Panel Nut M6 X 1.0

250100208

$1.46

1420

Stainless Steel Flat Washer

234062670

$2.11

1430

Torx Truss Screw M6 X 25

250000807

$2.11

1500

License Plate Support

705017197

$13.49

1510

Stainless Steel Flat Washer

234062670

$2.11

1520

Torx Screw M6 X 20

250000722

$1.68
