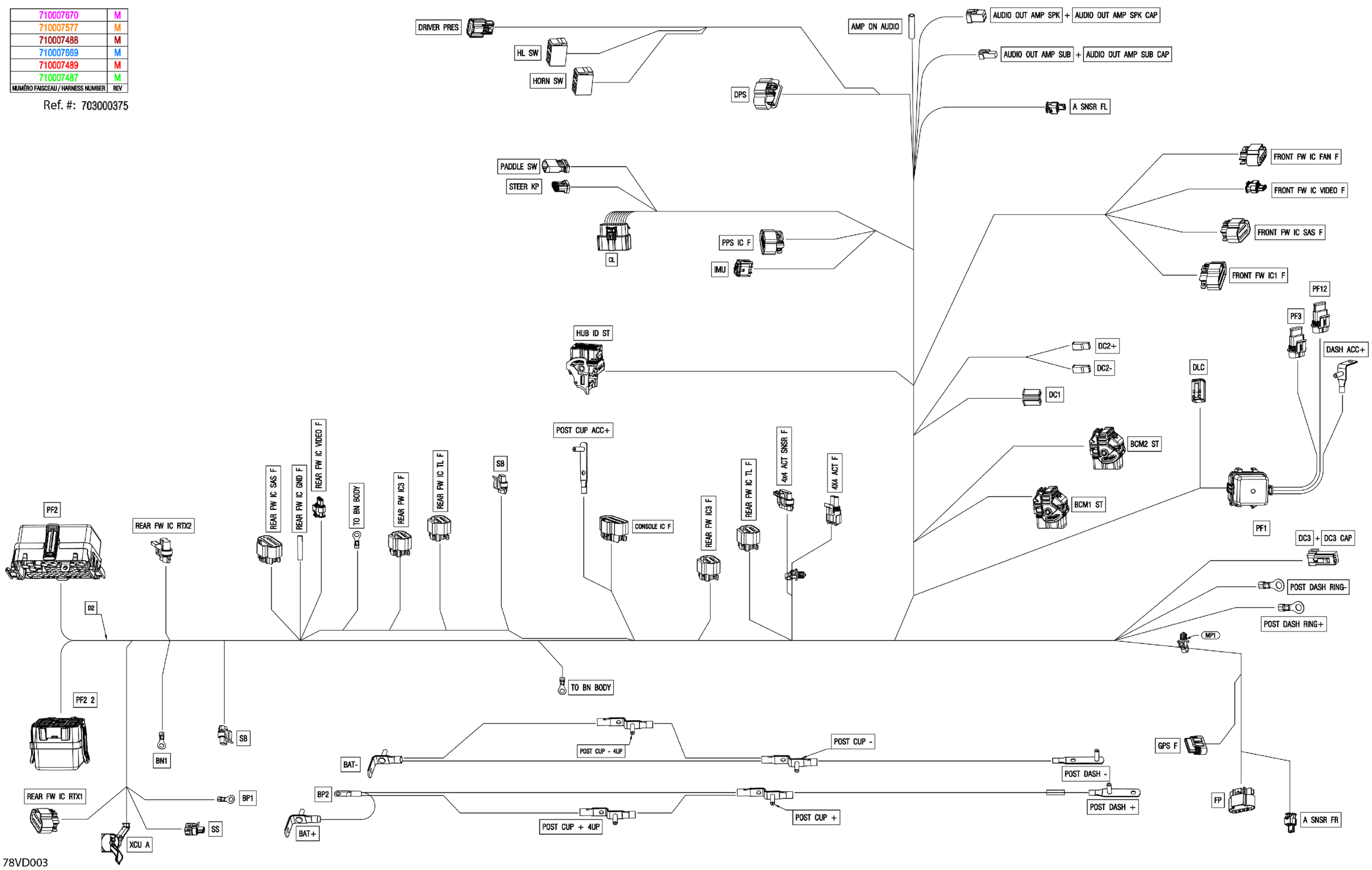

Can-Am Maverick R 996NT - BASE - 9BRB - Catalyst Gray - 77" Width CALI, 2024 Electric - Main Harness - 710007487 Diagram

#

Description
Price

0a1

Fuse Holder Support | Inclus 0a1 à 0a1

4

Unavailable

0a7

Battery Cable Cap | Inclus 0a7 à 0a7

2

Unavailable

300

Main Wiring Harness

710007487

$929.99

4X4 ACT SENSR F

Female Terminal Housing, 3 Circuits

278003442

$8.79

4X4 ACT SENSR F

Lock

710005868

$3.49

4X4 ACT SENSR F

Wire Seal

710001163

$7.69

4X4 ACT SENSR F

Female Terminal

710001164

$8.89

4X4 ACT F

Male Connector, 2 Circuits

278000220

$15.49

4X4 ACT F

Wire Seal

278001065

$7.69

4X4 ACT F

Female Terminal

278000223

$3.19

BCM1 LT

Seal Joint

710007620

$6.67

BCM1 LT

Seal Joint

710007619

$6.67

BCM1 LT

Femal Terminal

710007658

$5.93

BCM1 LT

Femal Terminal

710007623

$2.39

BCM1 MT

Plug

710001593

$2.21

BCM1 MT

Female Terminal

710001727

$3.19

BCM1 ST

Cover, 48 positions

710001591

$12.18

BCM1 ST

Front PT Housing

710007627

$23.99

BCM1 ST

Plug

710001592

$2.21

BCM1 ST

Terminal

710001728

$6.79

BCM1 ST

Female Terminal

710001589

$2.21

BN1

Shrink Tubing, 6 mm

515177246

$1.04

BN1

Open Barrel Terminal

278001392

$4.79

BP1

Shrink Tubing, 6 mm

515177246

$1.04

BP1

Open Barrel Terminal

278001392

$4.79

BP2

Cap Battery Cable

710007033

$6.24

CL

Female Molex Connector 20 Cavities

515179227

$16.49

CL

Sealing Cap

278002860

$1.79

CL

Female Terminal 22 AWG

515178349

$2.29

CONSOLE IC F

Housing

710001226

$13.49

CONSOLE IC F

Lock Connector

710007935

$11.49

CONSOLE IC F

Cap

710001225

$9.19

CONSOLE IC F

Seal

710001233

$3.19

CONSOLE IC F

Terminal

710001229

$3.19

D2

Diode

409012700

$11.12

DASH ACC+

Folded Terminal Eyelet

710006749

$9.95

DC1

Housing

710005373

$5.29

DC1

Terminal

710005518

$1.49

DC2-

Female Terminal Housing, 1 Circuit

409010400

$7.62

DC2-

Female Terminal

409010100

$5.61

DC2+

Female Terminal Housing, 1 Circuit

409010400

$7.62

DC2+

Female Terminal

409010100

$5.61

DC3

Female Housing, 2 Circuits

515175658

$16.18

DC3

Female Terminal

515175231

$4.39

DC3 CAP

Male Housing, 2 Circuits

710000667

$8.32

DLC

Female Housing 6 Circuits

710002706

$20.49

DLC

Lock

710002705

$4.44

DLC

Female Terminal

710005439

$4.44

DLC

Female Terminal

710005438

$4.29

DPS

Female Housing

710004989

$7.41

DPS

Lock | PACKARD 15430900

710005098

$2.09

DPS

Lock

710001222

$2.09

DPS

Plug

710002075

$3.09

DPS

Wire Seal

278002186

$5.50

DPS

Seal

710003153

$0.99

DPS

Female Terminal

278002187

$6.39

DPS

Terminal

710001873

$2.09

DRIVER PRES

Female Housing

515178474

$34.99

DRIVER PRES

Female Terminal 22 AWG

515178349

$2.29

FL-1

Fuse Link 41-50AMP

715002538

$21.99

FL-2

Fuse Wire 31-40AMP

715002537

$21.99

FL-3

Fuse Link 21-30AMP

715002536

$16.86

FP

Male Housing, 4 Circuits

278002185

$7.90

FP

Lock

710001222

$2.09

FP

Lock

710006214

$0.82

FP

Wire Seal

278002186

$5.50

FP

Seal

710003153

$0.99

FP

Female Terminal

278002187

$6.39

FP

Terminal

710001873

$2.09

FRONT FW IC FAN F

Male Housing, 4 Circuits

278002185

$7.90

FRONT FW IC FAN F

Lock

710001222

$2.09

FRONT FW IC FAN F

Lock

710006214

$0.82

FRONT FW IC FAN F

Wire Seal

278002186

$5.50

FRONT FW IC FAN F

Female Terminal

278002187

$6.39

FRONT FW IC1 F

Housing

710001226

$13.49

FRONT FW IC1 F

Lock Connector

710007935

$11.49

FRONT FW IC1 F

Cap

710001225

$9.19

FRONT FW IC1 F

Seal

710001233

$3.19

FRONT FW IC1 F

Seal Wire

710001332

$3.28

FRONT FW IC1 F

Terminal

710001229

$3.19

FRONT FW IC1 F

Terminal

710001228

$3.28

HL SW

Housing

710002000

$7.90

HL SW

Terminal

710003047

$3.49

HL SW

Female Terminal

710005491

$2.09

IMU

Housing

710003730

$14.83

IMU

Wire Seal

710001118

$1.16

IMU

Female Terminal

710003862

$2.43

PADDLE SW

Male Housing, 4 Circuits

515177442

$13.18

PF1

Fuse Cover

278003553

$3.72

PF1

Fuses Decal

710008308

$0.01

PF1

Fuse Base Ass'y

278003448

$31.99

PF1

Wire Seal

278000216

$3.19

PF1

Seal

293300198

$2.39

PF1

Wire Seal

278000218

$4.39

PF1

Wire Seal

710000048

$7.69

PF1

Wire Seal

278001065

$7.69

PF1

Female Terminal

515177177

$6.49

PF1

Female Terminal

710000918

$7.69

PF1

Female Terminal

278002578

$1.04

PF1 SP1

Little Fuse, 10 Amperes

710000744

$8.79

PF1 SP2

Little Fuse, 10 Amperes

710000744

$8.79

PF1 SP3

Little Fuse, 10 Amperes

710000744

$8.79

PF1-F11

Little Fuse, 20 Amperes

710000746

$8.49

PF1-F12

Little Fuse, 10 Amperes

710000744

$8.79

PF1-F14

Little Fuse, 20 Amperes

710000746

$8.49

PF1-F16

Little Fuse, 10 Amperes

710000744

$8.79

PF1-R3

Relay, 30 AMP

515176774

$21.99

PF1-R4

Relay

715900824

$21.99

PF1-R8

Relay

715900824

$21.99

PF2

Cover

710007491

$17.99

PF2

Fuses Decal

710008309

$0.01

PF2

Fusebox Ass'y

710005623

$49.49

PF2

Seal

293300198

$2.39

PF2

Wire Seal

278000218

$4.39

PF2

Wire Seal

278001065

$7.69

PF2

Female Terminal

710000918

$7.69

PF2

Female Terminal

278002578

$1.04

PF2

Female Terminal

710000890

$4.55

PF2 2

Fuse Cover

278003553

$3.72

PF2 2

Fuses Decal

710008310

$0.01

PF2 2

Fuse Base Ass'y

278003448

$31.99

PF2 2

Wire Seal

278000216

$3.19

PF2 2

Seal

293300198

$2.39

PF2 2

Wire Seal

278000218

$4.39

PF2 2

Wire Seal

278001065

$7.69

PF2 2

Female Terminal

710000918

$7.69

PF2 2

Female Terminal

278002578

$1.04

PF2 2

Female Terminal

710000890

$4.55

PF2 2 SP1

Little Fuse, 25 Ampere

278002389

$4.55

PF2 2 SP2

Little Fuse, 15 Ampere

710000745

$8.49

PF2 2 SP3

Little Fuse, 15 Ampere

710000745

$8.49

PF2 2-F27

Little Fuse, 25 Ampere

278002389

$4.55

PF2 2-R10 2

Relay

715900824

$21.99

PF2 2-R5

Relay

715900824

$21.99

PF2 LT

Seal Joint

710003132

$0.90

PF2 LT

Terminal Joint

710001905

$2.09

PF2 LT

Terminal

710001636

$3.19

PF2 LT

F Terminal

710003125

$3.39

PF2 SP1

Little Fuse, 10 Amperes

710000744

$8.79

PF2 SP2

Little Fuse, 25 Ampere

278002389

$4.55

PF2 SP3

Little Fuse, 10 Amperes

710000744

$8.79

PF2 SP4

Little Fuse, 10 Amperes

710000744

$8.79

PF2 SP5

Little Fuse, 25 Ampere

278002389

$4.55

PF2-F17

Little Fuse, 10 Amperes

710000744

$8.79

PF2-F18

Little Fuse, 10 Amperes

710000744

$8.79

PF2-F28

Little Fuse, 10 Amperes

710000744

$8.79

PF2-F34

Little Fuse, 25 Ampere

278002389

$4.55

PF2-F35

Little Fuse, 10 Amperes

710000744

$8.79

PF2-F4

Little Fuse, 10 Amperes

710000744

$8.79

PF2-F5

Little Fuse, 10 Amperes

710000744

$8.79

PF2-F6

Little Fuse, 10 Amperes

710000744

$8.79

PF2-F8

Little Fuse, 10 Amperes

710000744

$8.79

PF2-F9

Little Fuse, 10 Amperes

710000744

$8.79

PF2-R1

Relay, 30 AMP

515176774

$21.99

PF2-R10

Relay

715900824

$21.99

PF2-R2

50 Amps Relay

710003143

$13.76

PF3

Fuse Holder

278001325

$8.79

PF3

Female Terminal

710000113

$6.99

PF3-F2

Fuse

710001613

$8.79

POST CUP -

Terminal

710007939

$15.89

POST CUP +

Terminal

710007939

$15.89

POST CUP ACC+

Terminal Eyelet

710008805

$72.99

POST DASH -

Terminal

710008716

$21.99

POST DASH RING-

Shrink Tubing, 6 mm

515177246

$1.04

POST DASH RING-

Open Barrel Terminal

278001392

$4.79

POST DASH RING+

Shrink Tubing, 6 mm

515177246

$1.04

POST DASH RING+

Open Barrel Terminal

278001392

$4.79

POST DASH+

Terminal

710008715

$8.15

PPS IC F

Housing

710001951

$12.71

PPS IC F

Lock

710001222

$2.09

PPS IC F

Lock

710006361

$0.82

PPS IC F

Cap

710001225

$9.19

PPS IC F

Seal

710001233

$3.19

PPS IC F

Terminal

710001229

$3.19

REAR FW IC GND F

Insulated Sheath

278001007

$3.58

REAR FW IC GND F

Female Terminal | DS 650 X

278001009

$3.19

REAR FW IC RTX1

Housing

710001226

$13.49

REAR FW IC RTX1

Lock Connector

710007935

$11.49

REAR FW IC RTX1

Seal

710001233

$3.19

REAR FW IC RTX1

Seal Wire

710001332

$3.28

REAR FW IC RTX1

Terminal

710001229

$3.19

REAR FW IC RTX1

Terminal

710001228

$3.28

REAR FW IC RTX2

Connector_DELPHI Female 2 Cavities

710007586

$17.04

REAR FW IC RTX2

Lock Connector

710007583

$11.59

REAR FW IC RTX2

Seal Joint

710007584

$10.27

REAR FW IC RTX2

Terminal

710007585

$3.70

REAR FW IC TL F

Housing

710001928

$16.86

REAR FW IC TL F

Lock

710001222

$2.09

REAR FW IC TL F

Lock

710006181

$3.19

REAR FW IC TL F

Cap

710001225

$9.19

REAR FW IC TL F

Seal

710001233

$3.19

REAR FW IC TL F

Terminal

710001229

$3.19

REAR FW IC3 F

Connector_DELPHI Female 8 Cavities

710007831

$17.04

REAR FW IC3 F

Lock

710007836

$14.49

REAR FW IC3 F

Wire Seal

278002186

$5.50

REAR FW IC3 F

Female Terminal

278002187

$6.39

SB

Housing

710002177

$3.19

SB

Lock

710002043

$0.90

SB

Seal

278001482

$3.19

SB

Female Terminal

710001134

$7.69

SS

Female Housing, 2 Circuits

515177192

$9.12

SS

Lock

710001152

$4.39

SS

Wire Seal

710001163

$7.69

SS

Female Terminal

710001164

$8.89

TO BN BODY

Shrink Tubing, 6 mm

515177246

$1.04

TO BN BODY

Open Barrel

278000992

$2.21

XCU A

Cover

515178602

$5.37

XCU A

Housing 56 Circuits

515178618

$24.99

XCU A

Plate

515178604

$4.59

XCU A

Plug

515178599

$3.17

XCU A

Plug

515178600

$3.17

XCU A

Plate

515178603

$4.59

XCU A

Terminal

515178596

$3.72

XCU A LT

Terminal

515178666

$4.55
