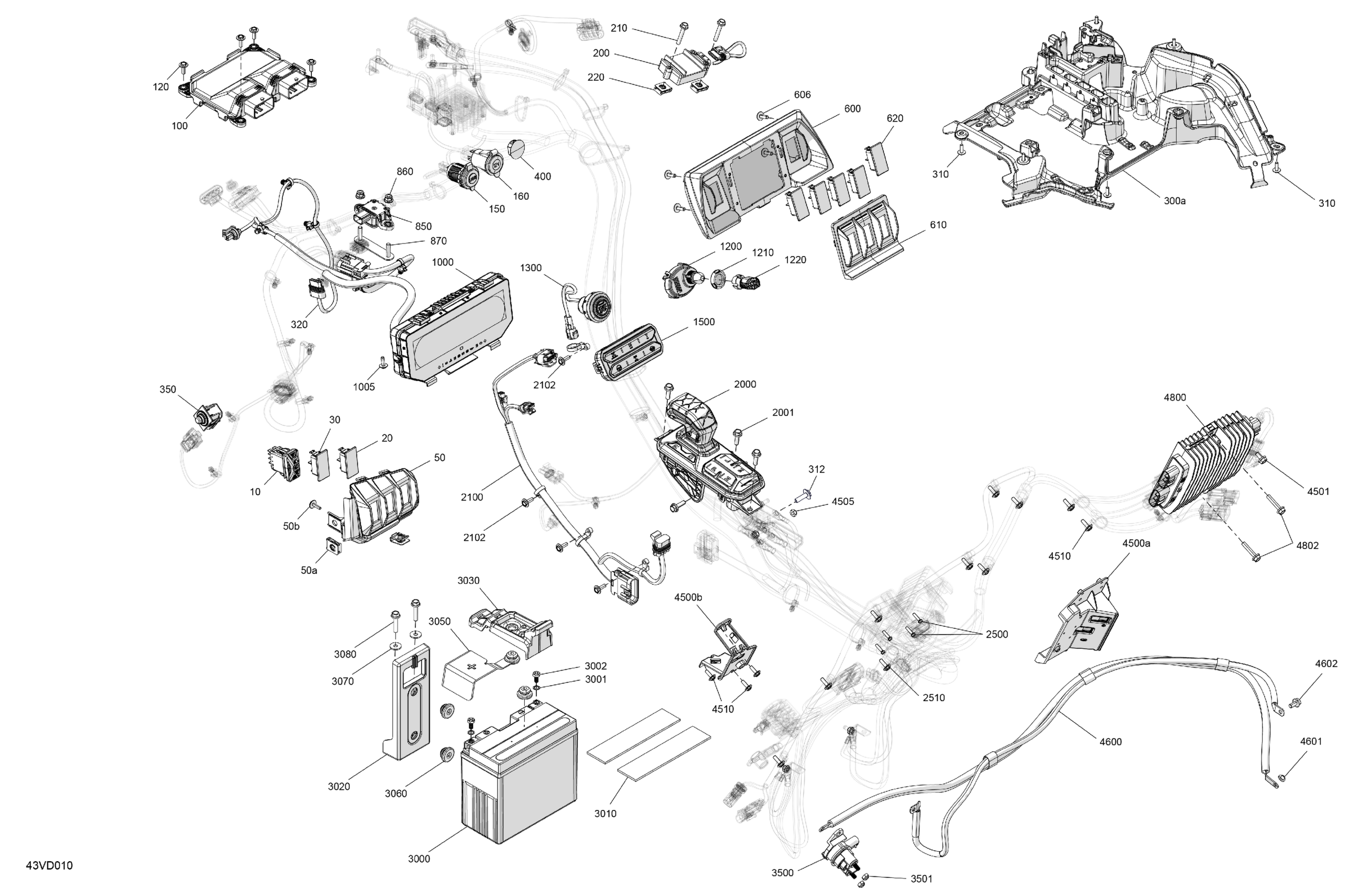

Can-Am Maverick R 996NT - BASE - 9BRB - Catalyst Gray - 77" Width CALI, 2024 Electric - Central Electric Diagram

#

Description
Price

10

Light Switch

710007663

$44.00

20

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$7.60

30

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$7.60

50

Switch Support Ass'y | Includes 20d to 20d3

710009476

$15.64

50a

Panel Nut M6 X 1.0

250100208

$1.22

50b

Plastite Screw M4 X 10

250000805

$2.00

100

BCM Module OPT #2

710007494

$959.99

120

Screw PT Type K-50 X 16

250000959

$2.00

150

USB Outlet

219400510

$43.99

160

12V Power Outlet

710005374

$31.31

200

GPS

278004506

$98.48

210

Hex. Flange Screw S.Grip M6 X 35

207563544

$2.00

220

Panel Nut M6 X 1.0

250100208

$1.22

300a

Fuse Holder Support

710007735

$46.99

310

Screw PT Type K-50 X 16

250000959

$2.00

312

Screw PT Type K-50 X 16

250000959

$2.00

320

Accelerator Pedal Wiring Harness

710008927

$205.94

350

Door Switch

710008822

$68.63

400

Plug

293000138

$5.04

600

Central Trim

709402675

$18.63

606

Screw PT Type K-50 X 16

250000959

$2.00

610

Switch Trim

710008872

$5.48

620

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$7.60

850

Yaw Rate Sensor

710005998

$372.36

860

Hex. Flange Elastic Nut M6

233261494

$1.45

870

Sensor Support | Includes 1825 to 1825a

710009676

$14.49

1000

MID Multifunction Gauge

710008295

$336.54

1005

Screw PT Type K-50 X 16

250000959

$2.00

1200

Terminal DESS CAN | CARB Vehicle

710008832

$69.37

1210

Specialized Nut

278004274

$3.12

1220

Grey Key RFID | Except Model Europe, Except T3

710004964

$53.70

1300

Start-Stop Button | Not Shown

710005213

$55.94

1500

Multifunction Switch

710007536

$179.07

2000

Electronic Gear Shift Lever

710007338

$290.27

2001

Hex. Flange Screw S.Grip M6 X 20

207562054

$2.00

2100

Console Wiring Harness

710007667

$91.76

2102

Screw PT Type K-50 X 16

250000959

$2.00

2500

Screw M4 X 16

250000725

$3.30

2510

Screw PT Type K-50 X 16

250000959

$2.00

3000

Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73

410301203

$142.45

3001

Washer | Not Shown

710009082

$0.99

3002

Screw | Not Shown

710009084

$1.48

3010

Rubber Pad

293830126

$12.64

3020

Fixation Plate

710004788

$9.48

3030

Fixation Plate

710004789

$6.72

3050

Battery Cable Cap

710006471

$2.59

3060

Stopper Rubber

705014429

$6.09

3070

Flat Washer 6 mm

234062410

$0.73

3080

Hex. Flange Screw M6 X 30, Scotch Grip

207563044

$4.15

3500

Starter Relay

278003012

$40.27

3501

Elastic Stop Nut M6, Brass

232561200

$4.03

4500a

Connector Support

710008838

$12.79

4500b

Connector Support

710008839

$12.79

4501

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.79

4505

Elastic Stop Nut M6, Brass

232561200

$4.03

4510

Screw PT Type K-50 X 16

250000959

$2.00

4600

Starter Wiring Harness

710007347

$91.76

4601

Elastic Stop Nut M6, Brass

232561200

$4.03

4602

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.79

4800

Voltage Regulator

710007558

$335.04

4802

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.00
