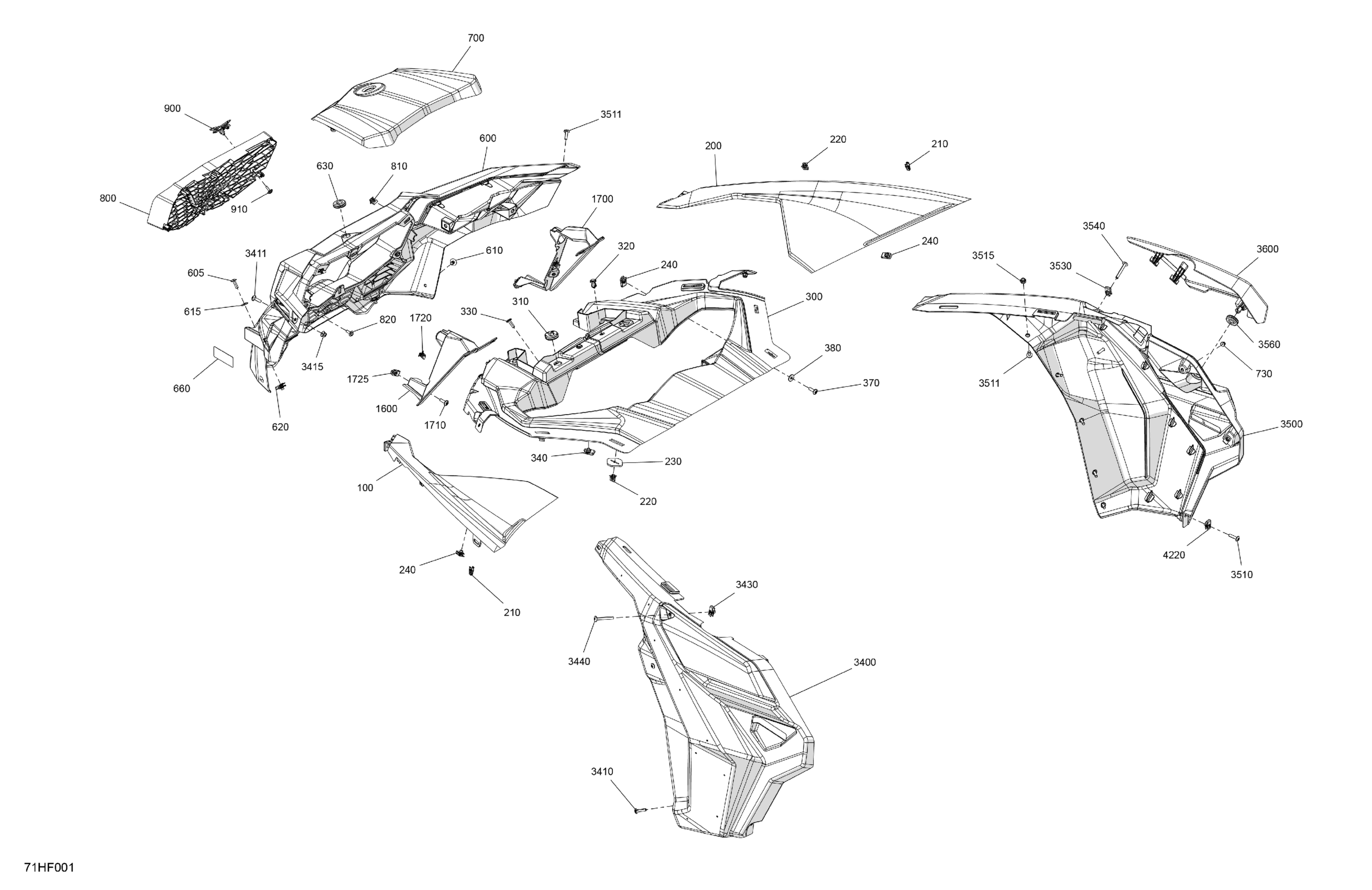

Can-Am Maverick Max - TURBO - X - 8HTG - Granite Grey - 64" Width - CALI, 2026 Body - Front Section Diagram

Description

Price

100

Granite Gray, LH Front Fender

705019614

$203.05

200

Granite Gray, RH Front Fender

705019615

$203.05

210

Clip

705010721

$2.31

220

Edge Clip

517302785

$0.70

230

Support Plate

705003841

$0.91

240

Panel Nut M6 X 1.0

250100198

$1.73

300

Central Hood

705014684

$72.19

310

Grommet

705010718

$2.69

320

Tuflok Plastic Rivet

293150230

$1.21

330

Torx Screw M6 X 20

250000722

$1.34

340

Panel Nut M6 X 1.0

250100198

$1.73

370

Torx Screw M6 X 20

250000722

$1.34

380

Stainless Steel Flat Washer

234062670

$1.74

600

Front Fascia

705019553

$69.20

605

Torx Screw M6 X 20

250000722

$1.34

610

Black, Dart

414644300

$0.78

615

Stainless Steel Flat Washer

234062670

$1.74

620

Panel Nut M6 X 1.0

250100198

$1.73

630

Grommet

517303756

$3.15

660

Amber, Reflector

520002680

$19.20

700

Granite Gray, Front Hood

705019597

$159.97

730

Hex. Flange Elastic Nut M6

233261494

$1.26

800

Radiator Front Grille

703501021

$50.74

810

Edge Clip

517302785

$0.70

820

Screw PT Type K-50 X 16

250000959

$1.74

900

BRP Logo Emblem

705017644

$11.55

910

Screw M4 X 16

250000725

$2.87

1600

LH Front Radiator Deflector

705017559

$17.66

1700

RH Front Radiator Deflector

705017560

$17.66

1710

Torx Screw M6 X 20

250000722

$1.34

1720

Edge Clip

517302785

$0.70

1725

Panel Nut M6 X 1.0

250100198

$1.73

3400

LH Front Body Panel Kit

715009833

$96.89

3410

Torx Truss Screw M6 X 25

250000807

$1.74

3411

Torx Screw M6 X 20

250000712

$1.74

3415

Hex. Flange Elastic Nut M6

233261494

$1.26

3430

Panel Nut M6 X 1.0

250100198

$1.73

3440

Torx Truss M6 X 50

250000868

$1.74

3500

RH Front Body Panel Ass'y

715009835

$96.89

3510

Torx Truss Screw M6 X 25

250000807

$1.74

3511

Torx Screw M6 X 20

250000712

$1.74

3515

Hex. Flange Elastic Nut M6

233261494

$1.26

3530

Panel Nut M6 X 1.0

250100198

$1.73

3540

Torx Truss M6 X 50

250000868

$1.74

3560

Grommet

517303756

$3.15

3600

Lateral Cover

705017564

$40.74

4220

Panel Nut M6 X 1.0

250100198

$1.73
