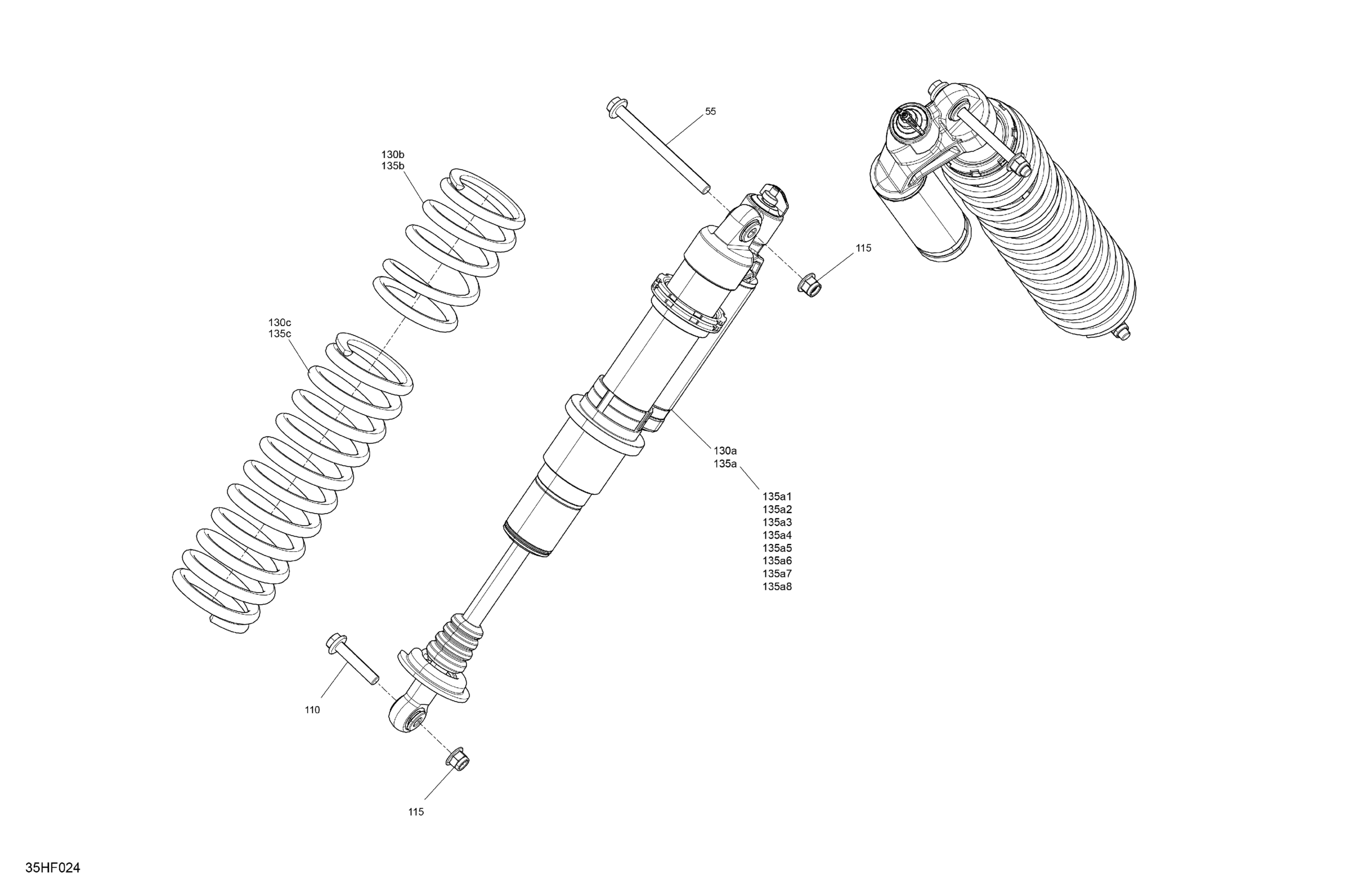

Can-Am Maverick Max - TURBO - X - 8HTG - Granite Grey - 64" Width - CALI, 2026 Suspension - Front Shocks Diagram

Description

Price

Flange Screw M12 X 145

250000861

$6.28

110

Flange Screw M12 X 60

250000857

$6.99

115

Elastic Flange Nut M12

250001195

$2.46

130a

LH Front Shock Absorber

706206607

$1,099.99

130b

Deep Black, Compression Spring

706205333

$115.64

130c

Deep Black, Compression Spring

706205350

$139.52

135a

RH Front Shock | Includes 135a to 135a5

706202789

$1,109.99

135a1

Spherical Bearing

715900337

$79.07

135a2

O-Ring Bushing

715900338

$10.55

135a3

Circlip

715900480

$10.24

135a4

Reducer

715900481

$24.60

135a5

Ball Joint

706004078

$44.00

135a6

Crossover Ring

715900594

$13.93

135a7

Spring Retainer

715900598

$32.81

135a8

Spring Coupler Long

715900591

$28.33

135b

Deep Black, Compression Spring

706205333

$115.64

135c

Deep Black, Compression Spring

706205350

$139.52
