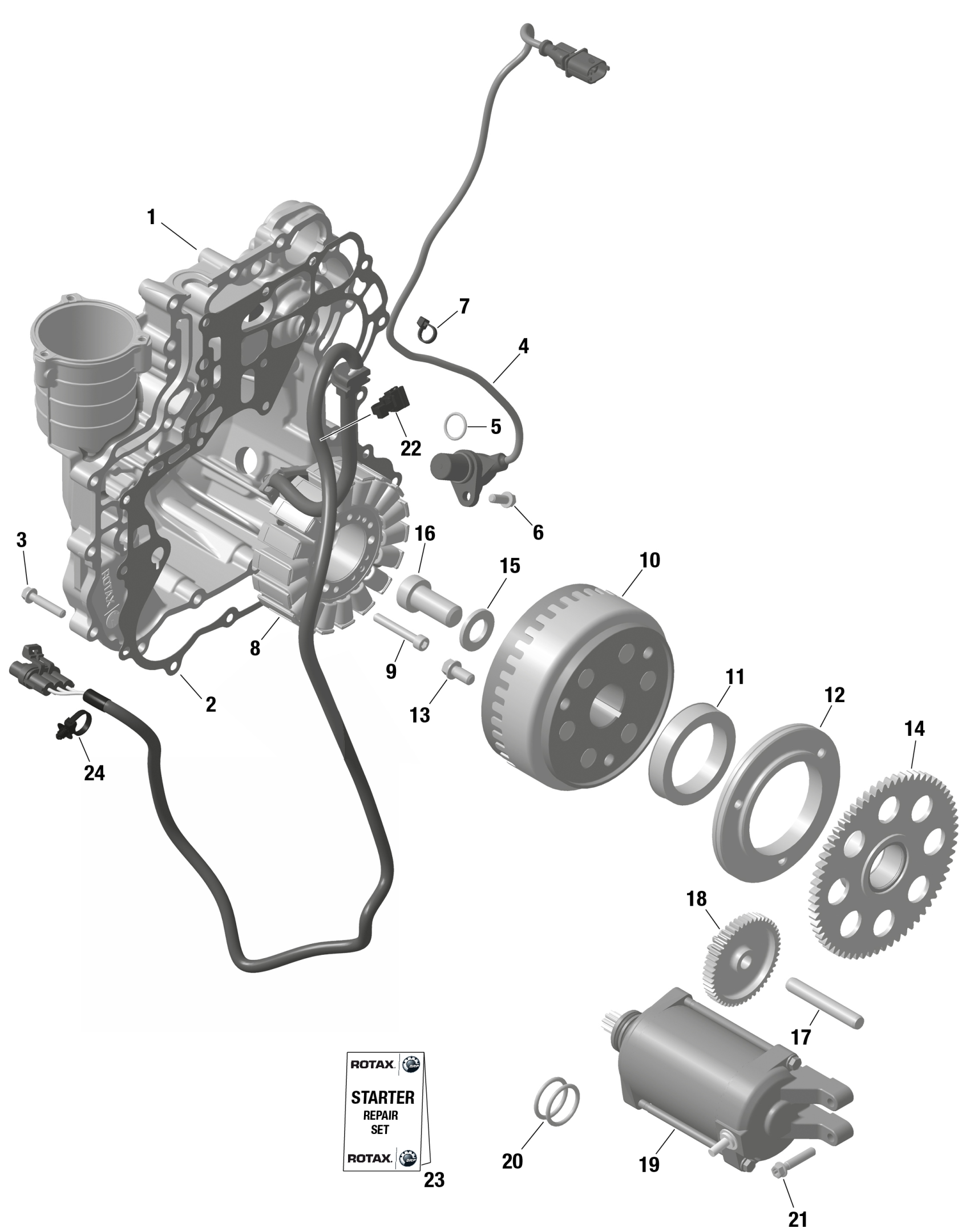

Can-Am Maverick MAX Turbo - RS - 7YRL - Fiery Red Metallic - 72" Width CALI, 2024 ROTAX - Magneto and Electric Starter Diagram

Description

Price

Ignition Cover

420911055

$164.90

Gasket

420431640

$36.54

Torx Flange Screw M6 X 30

420440647

$1.91

Crankshaft Position Sensor Ass'y | Includes 10 to 11

420966570

$106.69

O-Ring

420431580

$14.10

Torx Flange Screw M6 X 16

420440162

$3.01

Tie Rap

420866714

$1.79

Stator Plate

420685629

$320.12

Allen Screw M6 X 40

420241956

$3.01

Flywheel Ass'y

420686196

$529.99

Sprag Clutch

420659113

$235.79

Sparg Clutch Housing

420659263

$141.01

Torx Flange Screw M8 X 16

420440854

$4.15

Free Wheel Gear, 64 Teeth

420434238

$101.46

Shim

420627270

$3.88

Socket Head Screw M16 X 35

420241549

$8.09

Needle Pin

420229475

$14.10

Starter Double Gear 11/49 T

420634741

$179.07

Starter Ass'y | Includes 8 to 9

420893830

$251.74

O-Ring

420250145

$9.03

Torx Flange Screw M6 X 30

420440647

$1.91

Cable Clamp 150mm

420951650

$4.07

Carbon Brush Set

420881145

$182.06

Dart Tie Rap 200MM

710003168

$6.57
