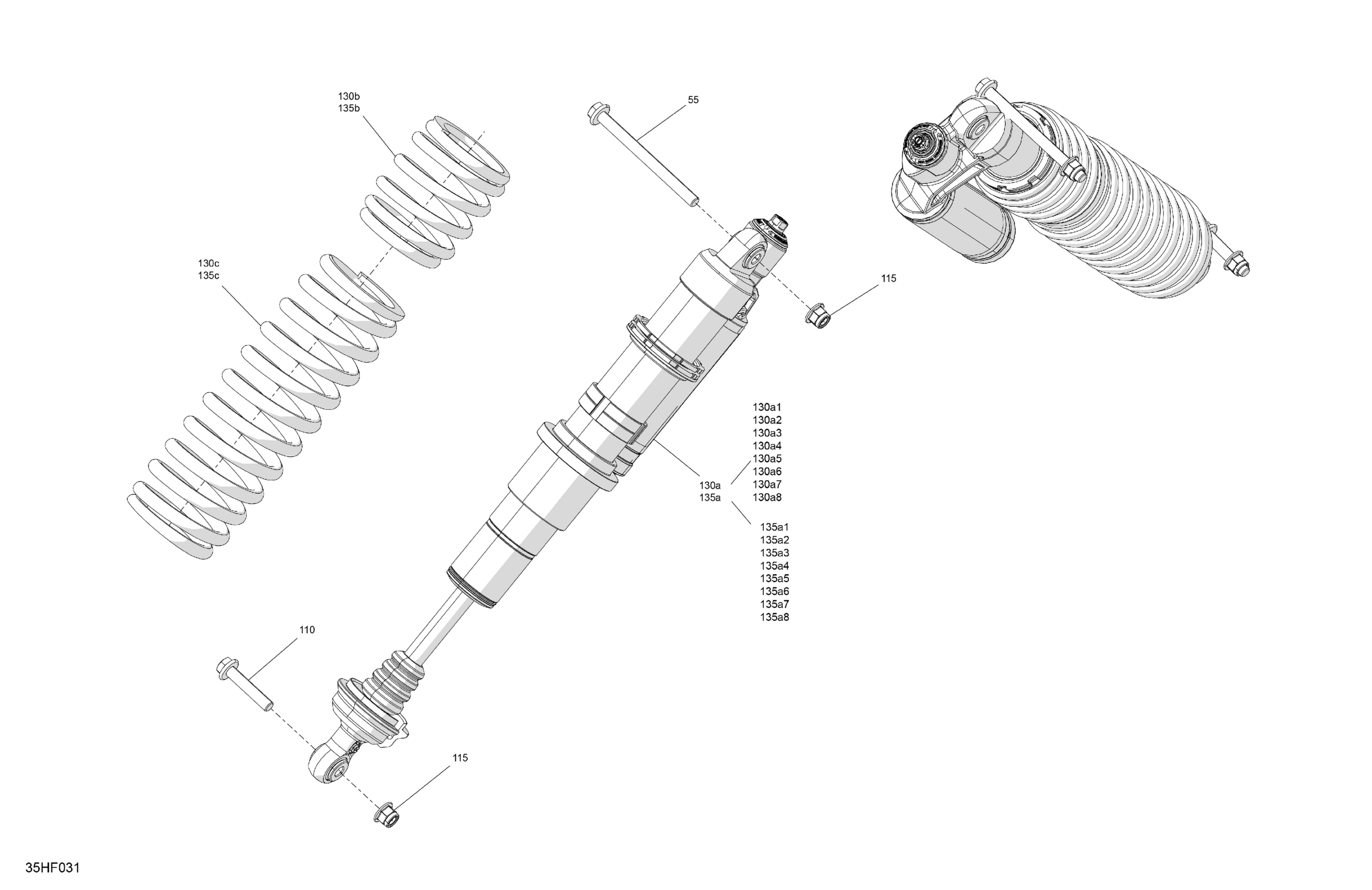

Can-Am Maverick Max - TURBO RR - XRS STD - 9NTL - Timeless Black Metallic - 72" Width, 2026 Suspension - Front Shocks Diagram

Description

Price

Flange Screw M12 X 145

250000861

$5.47

110

Flange Screw M12 X 60

250000857

$6.08

115

Elastic Flange Nut M12

250001195

$2.15

130a

LH Front Adjustable Shock Absorber

706206344

$959.99

130a1

Spherical Bearing

715900337

$80.74

130a2

Ball Joint

706004078

$45.12

130a3

O-Ring Bushing

715900338

$10.98

130a4

Circlip

715900480

$11.06

130a5

Reducer

715900481

$27.66

130a6

Crossover Ring

715900594

$14.98

130a7

Spring Retainer

706203066

$73.82

130a8

Spring Coupler Long

715900591

$32.28

130b

Deep Black, Compression Spring

706205335

$119.97

130c

Deep Black, Compression Spring

706205350

$147.66

135a

RH Front Adjustable Shock Absorber

706206345

$959.99

135a1

Spherical Bearing

715900337

$80.74

135a2

Ball Joint

706004078

$45.12

135a3

O-Ring Bushing

715900338

$10.98

135a4

Circlip

715900480

$11.06

135a5

Reducer

715900481

$27.66

135a6

Crossover Ring

715900594

$14.98

135a7

Spring Retainer

706203066

$73.82

135a8

Spring Coupler Long

715900591

$32.28

135b

Deep Black, Compression Spring

706205335

$119.97

135c

Deep Black, Compression Spring

706205350

$147.66
