Partiron

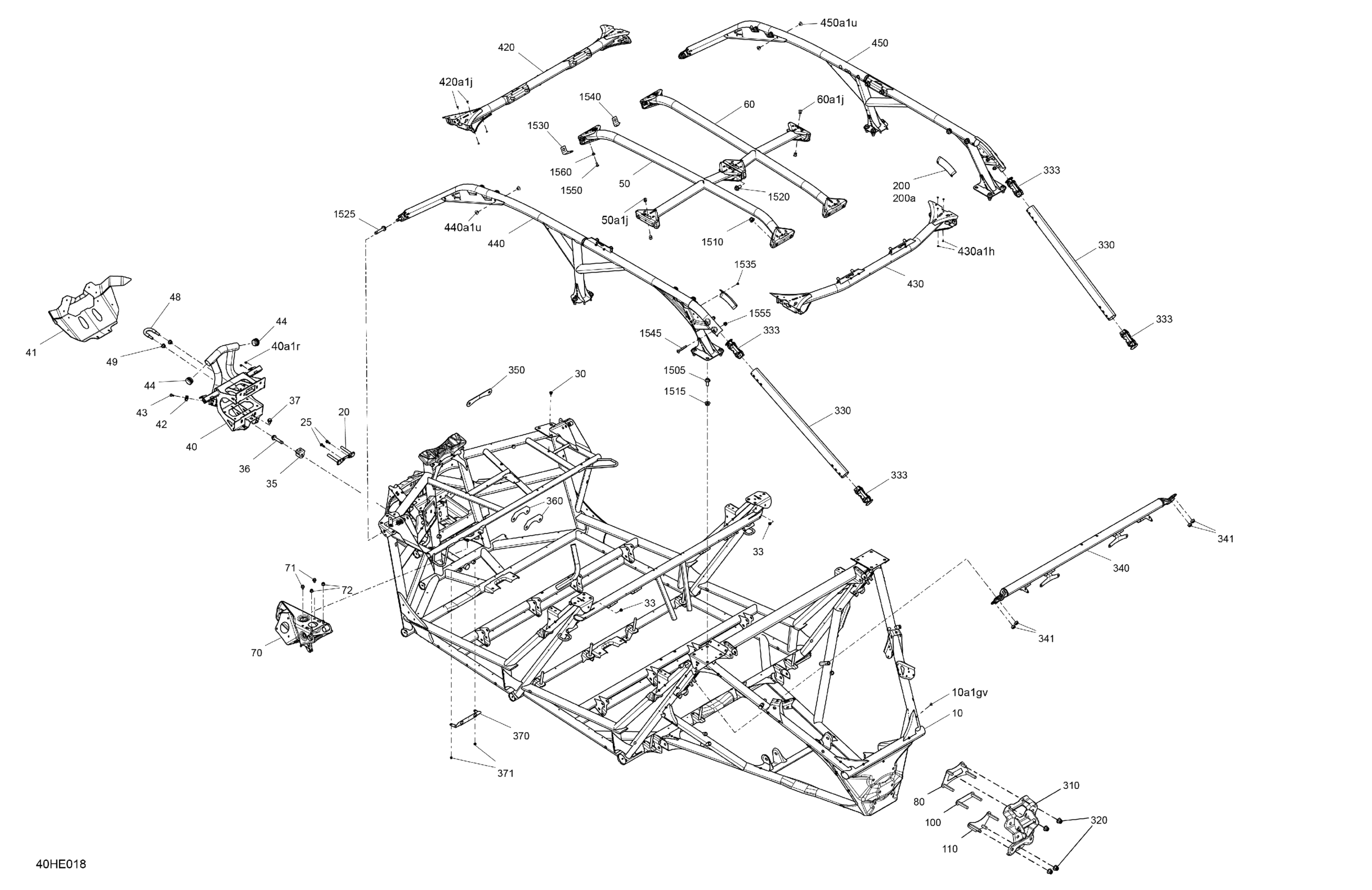

Can-Am Maverick MAX - TURBO RR - XMR - 7ZSA - Hyper Silver - 72" Width, 2025 Frame - System Diagram

#

Description
Price

10

Hyper Silver, Chassis Kit

715009827

$3,359.99

10a1gv

Pop Rivet 3/16 X ,425

293150293

$0.30

20

Front Plate

705211898

$17.88

25

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$2.00

30

Insert Half Hex Body M6 x 1.0

250100199

$2.91

33

Insert Half Hex Body M6 x 1.0

250100199

$2.91

35

Bumper Link

705206992

$14.90

36

Flange Screw M12 X 60

250000857

$6.99

37

Flange Screw M10 X 16, Scotch Grip | 4X4

250000060

$3.49

40

Legion Red, Front Bumper Kit

715009850

$342.51

40a1r

Pop Rivet 3/16 X ,425

293150293

$0.30

41

Front Master Plate

715006996

$188.78

42

Panel Nut M6 X 1.0

250100198

$1.99

43

Torx Screw M6 X 20

250000722

$1.54

44

Cap

705202455

$4.27

48

Deep Black, Flange

705212138

$35.79

49

Hex. Flange Elastic Nut M10

233201436

$2.00

50

Hyper Silver, LH Cage Reinforcement | Includes 50 to 50a1j

705210219

$91.99

50a1j

Pop Rivet 3/16 X ,425

293150293

$0.30

60

Hyper Silver, RH Cage Reinforcement | Includes 60 to 60a1j

705210220

$91.99

60a1j

Pop Rivet 3/16 X ,425

293150293

$0.30

70

DPS Support

705206924

$64.15

71

Hex. Flange Screw M8 X 12, Scotch Grip

207581244

$1.06

72

Hex. Elastic Flange Nut M8

233281416

$1.43

80

Rear Upper Plate

705211557

$17.13

100

Rear Central Plate

705211558

$17.13

110

Rear Lower Plate

705211556

$16.39

200

Hyper Silver, Upper Plate Kit | Includes 200 to 200a

705211612

$35.04

200a

Hyper Silver, Upper Plate Kit

705211613

Unavailable

310

Junction Plate Kit

715008492

$40.27

320

Elastic Flange Nut M12

250001195

$2.46

330

Hyper Silver, Rear Pillar

705210223

$24.99

333

Sleeve

705210648

$8.42

340

Safety Belt Anchorage

705212141

$112.66

341

Elastic Stop Nut M12

232521416

$1.61

350

Connecting Plate

705211552

$4.81

360

Retaining Plate

705210249

$4.72

370

Support

705211560

$10.67

371

Pop Rivet 3/16 X ,425

293150293

$0.30

420

Hyper Silver, Front Cross Member | Includes 420 to 420a1j

705210234

$204.99

420a1j

Pop Rivet 3/16 X ,425

293150293

$0.30

430

Hyper Silver, Rear Cross Member | Includes 430 to 430a1h

705210240

$204.99

430a1h

Pop Rivet 3/16 X ,425

293150293

$0.30

440

Hyper Silver, LH Cage Kit

715009806

$519.99

440a1u

Pop Rivet 3/16 X ,425

293150293

$0.30

450

Hyper Silver, RH Front Cage Kit

715009130

$509.99

450a1u

Pop Rivet 3/16 X ,425

293150293

$0.30

1505

Hex. Flange Screw M12 X 30, Scotch Grip

207523056

$5.82

1510

Elastic Flange Nut M12

250001195

$2.46

1515

Elastic Flange Nut M12

250001195

$2.46

1520

Hex. Flange Screw DIN.6921 M12X25

250000856

$6.28

1525

Flange Screw M12 X 60

250000857

$6.99

1530

Deep Black, LH Cage Reinforcement

705211746

$52.96

1535

Black, Pop Rivet 3/16 X ,425

293150300

$0.69

1540

Deep Black, RH Cage Reinforcement

705211747

$52.96

1545

Torx Truss M8 X 65

250000901

$1.79

1550

Torx Head Screw M6 X 16

250000717

$2.00

1555

Elastic Flange Nut M8

250100025

$1.43

1560

Hex. Flange Elastic Nut M6

233261466

$1.91
