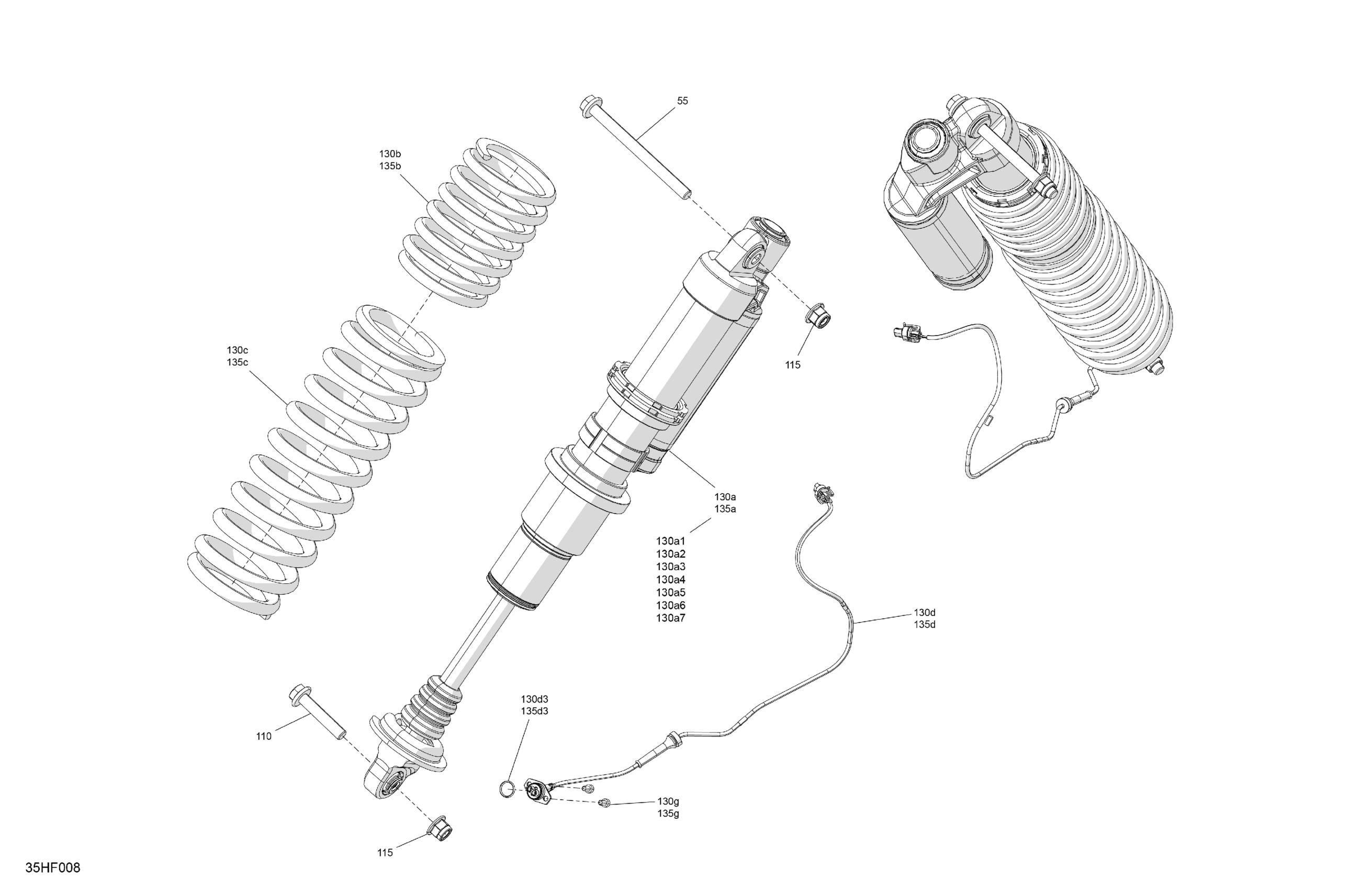

Can-Am Maverick Max - TURBO RR - XDS SAS - 7VTN - Timeless Black Metallic - 64" Width CALI, 2026 Suspension - Front Shocks Diagram

Description

Price

Flange Screw M12 X 145

250000861

$6.67

110

Flange Screw M12 X 60

250000857

$7.41

115

Elastic Flange Nut M12

250001195

$2.64

130a

LH Front Adjustable Shock Absorber

706206020

$1,239.99

130a1

Spherical Bearing

715900337

$84.99

130a2

Ball Joint

706004078

$47.49

130a3

O-Ring Bushing

715900338

$12.63

130a4

Circlip

715900480

$11.49

130a5

Reducer

715900481

$27.99

130a6

Crossover Ring

715900594

$14.49

130a7

Spring Coupler Long

715900591

$31.99

130b

Deep Black, Compression Spring

706205339

$100.49

130c

Deep Black, Compression Spring

706205350

$153.49

130d

Front Suspension Wiring Harness Ass'y

710006388

$229.99

130d3

O Ring

293300213

$2.51

130g

Socket Head Screw M5 X 10

205551060

$1.58

135a

RH Front Adjustable Shock Absorber

706206021

$1,239.99

135b

Deep Black, Compression Spring

706205339

$100.49

135c

Deep Black, Compression Spring

706205350

$153.49

135d

Front Suspension Wiring Harness Ass'y

710006388

$229.99

135d3

O Ring

293300213

$2.51

135g

Socket Head Screw M5 X 10

205551060

$1.58
