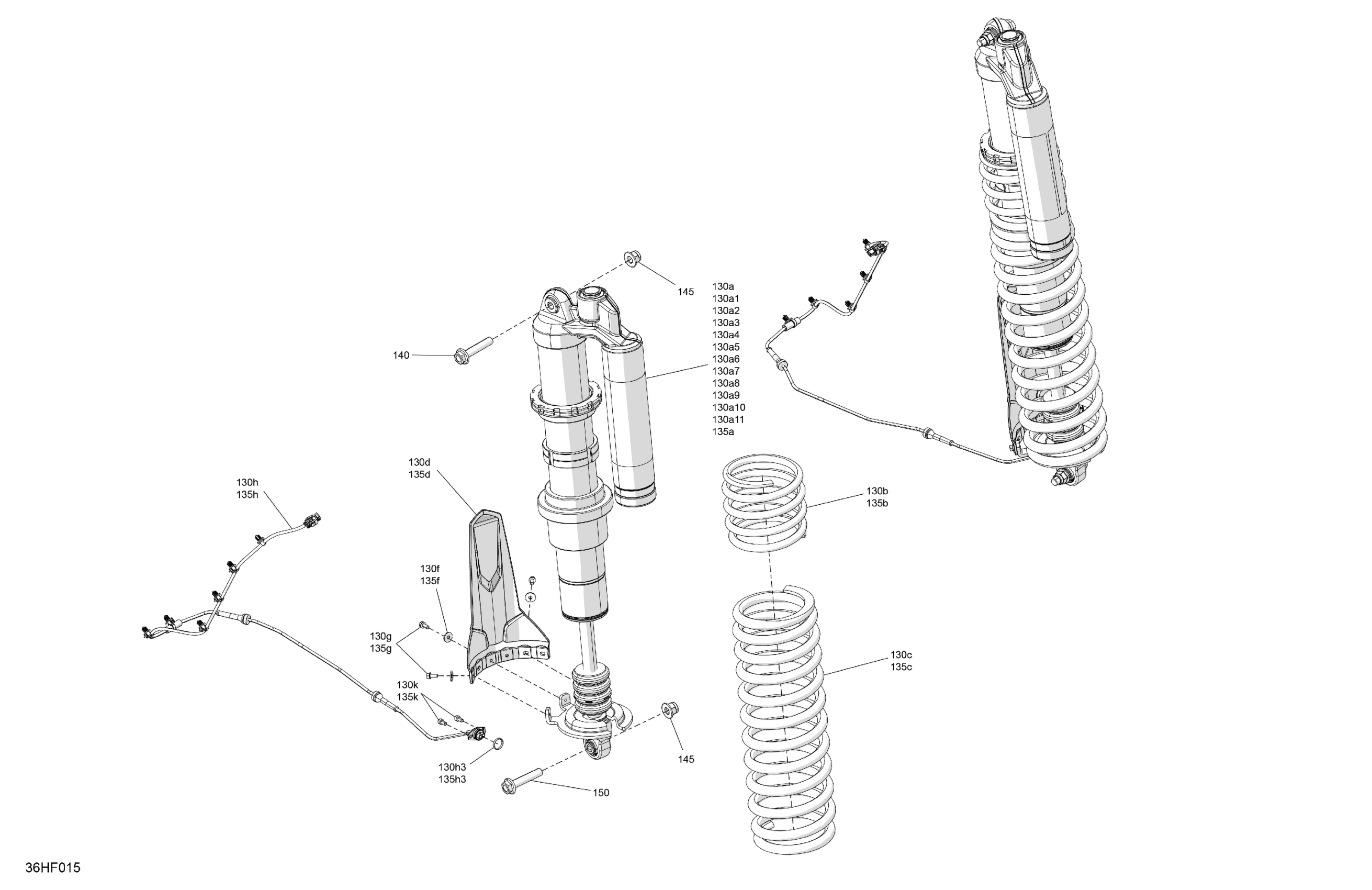

Can-Am Maverick Max - TURBO RR - XDS SAS - 7VTL - Dusty Navy Satin - 64" Width CALI, 2026 Suspension - Rear Shocks Diagram

Description

Price

130a

LH Rear Adjustable Shock Absorber | Includes 130a to 130a5

706005765

$1,529.99

130a1

Spherical Bearing

715900337

$84.99

130a2

Ball Joint

706004078

$47.49

130a3

O-Ring Bushing

715900338

$12.63

130a4

Circlip

715900480

$11.49

130a5

Reducer

715900481

$27.99

130a6

Preload Ring

715900605

$26.99

130a7

Preload Ring Backup

715900606

$26.99

130a8

Spring Adapter

715900607

$13.99

130a9

Crossover ring

715900608

$124.99

130a10

Spring Retainer

715900597

$36.99

130a11

Spring Coupler

715900593

$99.99

130b

Legion Red, Compression Spring

706005554

$126.99

130c

Legion Red, Compression Spring

706005555

$153.49

130d

Protector

706202215

$11.99

130f

Washer M5

250200025

$0.74

130g

Hex Flange Screw M5 X 11

210251150

$2.11

130h

Rear Suspension Wiring Harness Ass'y

710006389

$229.99

130h3

O Ring

293300213

$2.51

130k

Socket Head Screw M5 X 10

205551060

$1.58

135a

RH Rear Adjustable Shock Absorber

706005766

$1,529.99

135b

Legion Red, Compression Spring

706005554

$126.99

135c

Legion Red, Compression Spring

706005555

$153.49

135d

Protector

706202215

$11.99

135f

Washer M5

250200025

$0.74

135g

Hex Flange Screw M5 X 11

210251150

$2.11

135h

Rear Suspension Wiring Harness Ass'y

710006389

$229.99

135h3

O Ring

293300213

$2.51

135k

Socket Head Screw M5 X 10

205551060

$1.58

140

Flange Screw M12 X 60

250000857

$7.41

145

Elastic Flange Nut M12

250001195

$2.64

150

Flange Screw M12 X 60

250000857

$7.41
