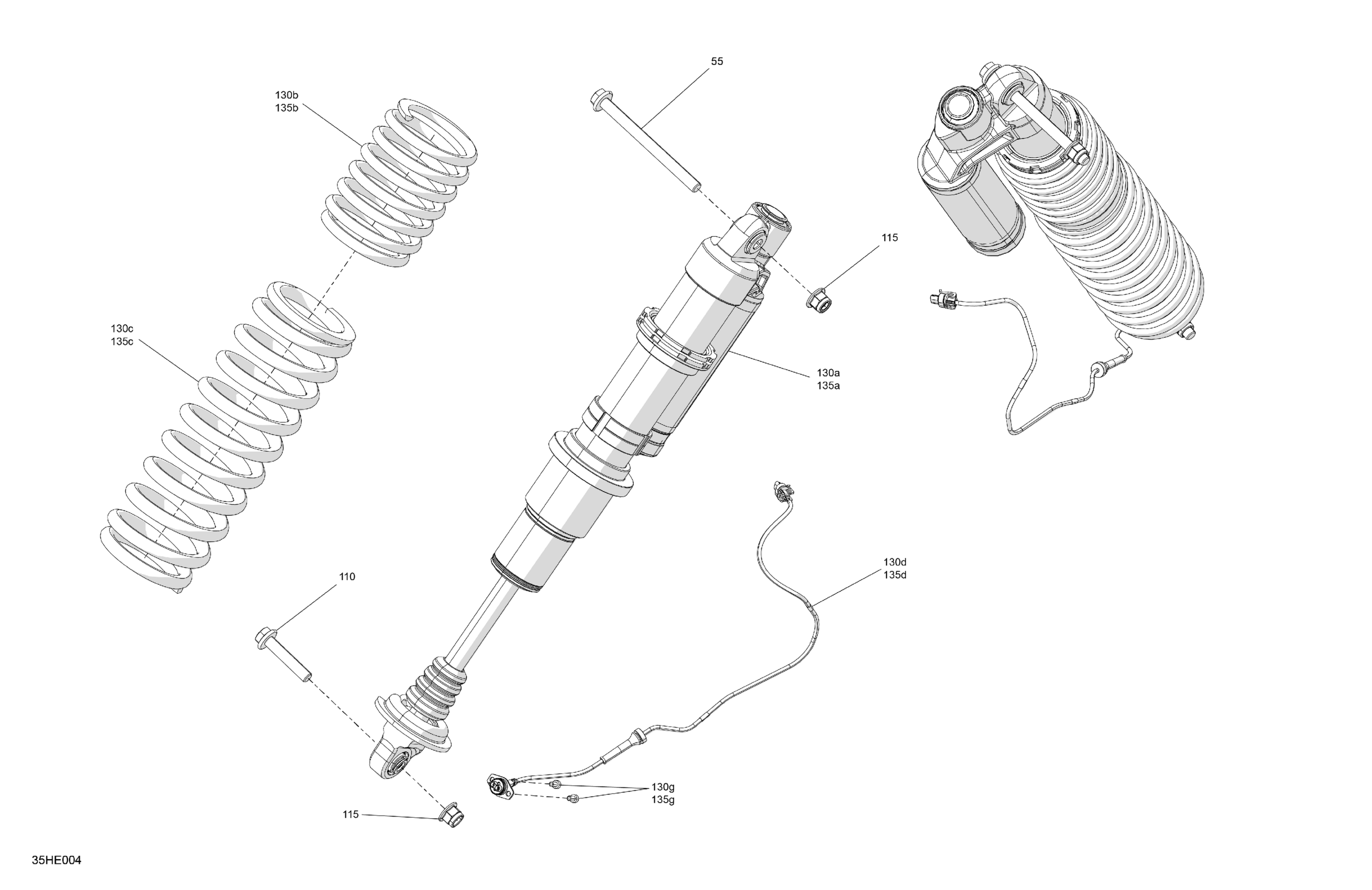

Can-Am Maverick MAX - TURBO RR - XDS SAS - 7VSN - Timeless Black Metallic - 64" Width, 2025 Suspension - Front Shocks Diagram

Description

Price

Flange Screw M12 X 145

250000861

$6.67

110

Flange Screw M12 X 60

250000857

$7.41

115

Elastic Flange Nut M12

250001195

$2.64

130a

LH Front Adjustable Shock Absorber

706206020

$1,239.99

130b

Deep Black, Compression Spring

706205339

$100.49

130c

Deep Black, Compression Spring

706205350

$153.49

130d

Front Suspension Wiring Harness Ass'y

710006388

$229.99

130g

Socket Head Screw M5 X 10

205551060

$1.58

135a

RH Front Adjustable Shock Absorber

706206021

$1,239.99

135b

Deep Black, Compression Spring

706205339

$100.49

135c

Deep Black, Compression Spring

706205350

$153.49

135d

Front Suspension Wiring Harness Ass'y

710006388

$229.99

135g

Socket Head Screw M5 X 10

205551060

$1.58
