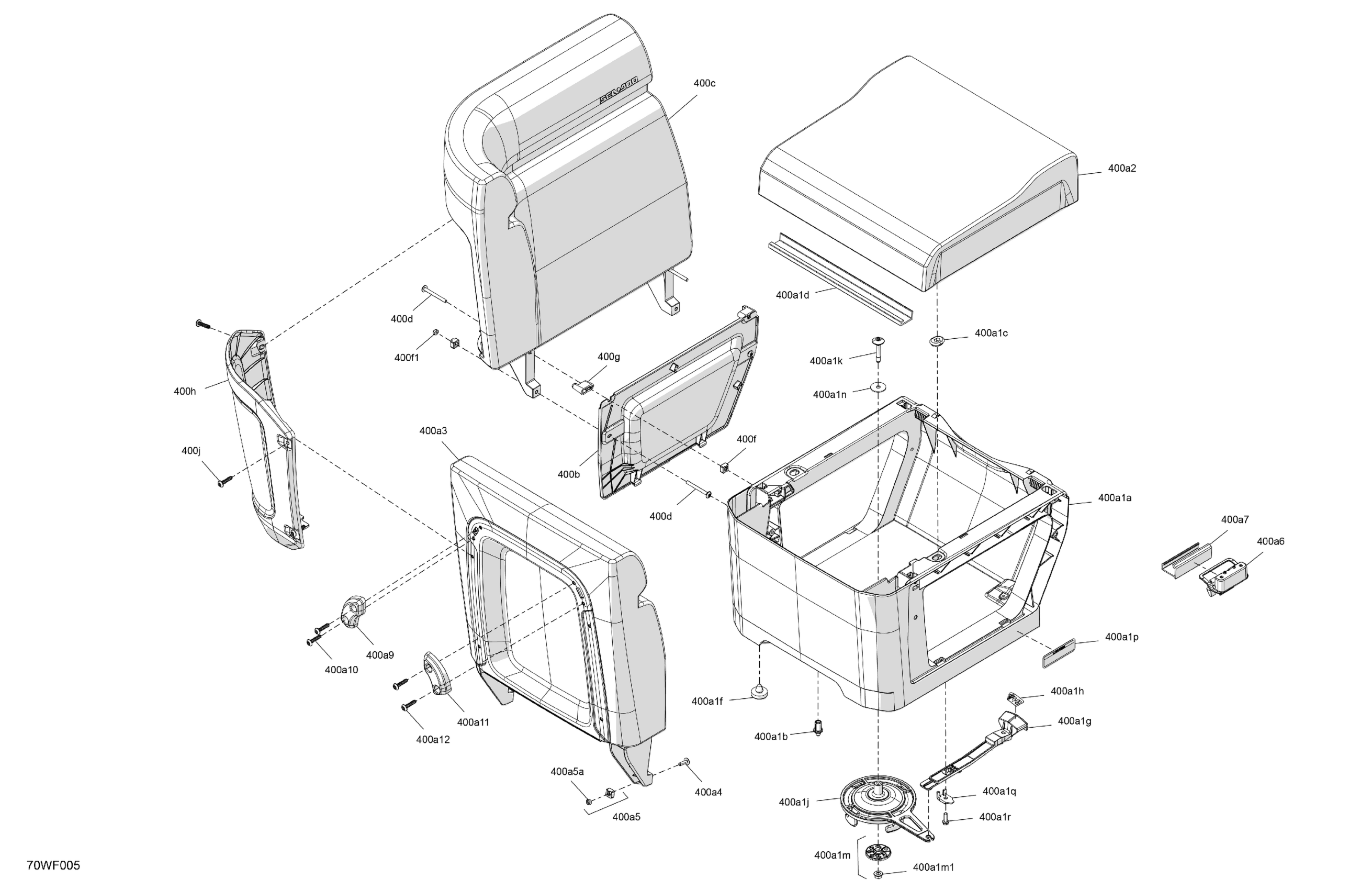

Sea-doo LTD 21 - 300 - 55TG - Dusty Navy - Trailer Galv - CAT-1-30-101 - 2026 FURNITURE - Seat Corner Backrest (LH) Diagram

Description

Price

400a1a

Seat Support

269003309

Unavailable

400a1b

Locator Rod

269003492

$4.71

400a1c

Oval Washer

705000321

$4.64

400a1d

Gutter

269003483

$2.75

400a1f

Rubber Stopper

269003502

$6.45

400a1g

Lever Latch Service Kit

295101126

Unavailable

400a1h

Lever Decal

219905993

Unavailable

400a1j

Seat Anchorage

269003311

$14.27

400a1k

Torx Head M8 X 50 S.GRIP

250001154

$8.80

400a1m

Housing Nut M8 | Includes 400a1m to 400a1m1

293450387

$5.73

400a1m1

Hex. Flange Nut M8

233181600

$0.86

400a1n

Flat Washer 8 mm

250200130

$2.61

400a1p

Seat Anchorage Warning Label

219905883

Unavailable

400a1q

Guide

269004160

$10.14

400a1r

Hex. Flange Screw M6.81 x 20

243162060

$3.30

400a2

Sapphire Breeze, Seat Cushion Ass'y -Tx

269004369

Unavailable

400a3

Sapphire Breeze, Backrest Ass'y -Tx

269004372

Unavailable

400a4

Torx Screw M6 X 20, Stainless | Package XDSXRS

250000234

$2.90

400a5

Nut Housing M6 | Includes 555 to 555b

269502544

$4.42

400a5a

Elastic Stop Nut M6, Brass

232561200

$3.51

400a6

Latch

269802056

Unavailable

400a7

Guard Support

269004551

Unavailable

400a8

Retaining Strap | Not Shown

281301100

Unavailable

400a9

LH Rubber Stopper

269003903

$3.98

400a10

Plastite Screw Torx Cone HD.M6.81X3

250001138

$1.61

400a11

RH Rubber Stopper

269003904

$3.98

400a12

Plastite Screw Torx Cone HD.M6.81X3

250001138

$1.61

400b

LH Panel Seat Switch Kit

295101046

Unavailable

400c

Sapphire Breeze, LH Backrest Ass'y -Tx

269004381

Unavailable

400d

Torx Screw M6 X 60

250000631

$3.12

400f

Nut Housing M6 | Includes 555 to 555b

269502544

$4.42

400f1

Elastic Stop Nut M6, Brass

232561200

$3.51

400g

Spacer

293900146

$1.61

400h

LH Exterior Support

269003509

$69.20

400j

Plastite Torx Screw M6.81X30 | Not Shown

250000879

$1.74
