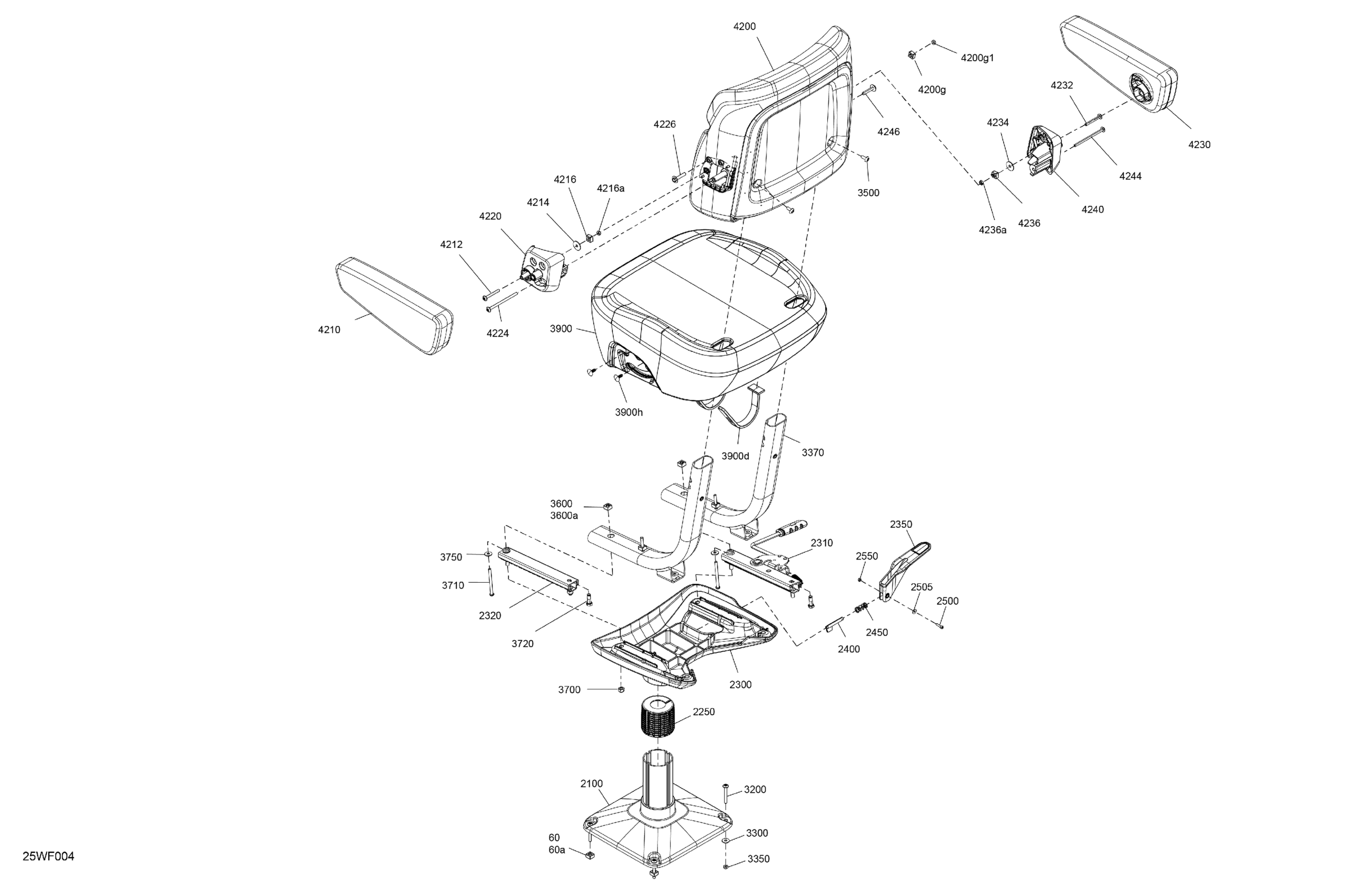

Sea-doo LTD 21 - 300 - 55TG - Dusty Navy - Trailer Galv - CAT-1-30-101 - 2026 FURNITURE - Driver Seat Diagram

#

Description
Price

60

Nut Housing M6 | Includes 555 to 555b

269502544

$5.07

60a

Elastic Stop Nut M6, Brass

232561200

$4.03

2100

Seat Anchorage

281000187

Unavailable

2250

Sleeve

281000022

$4.58

2300

Seat Support

281000163

Unavailable

2310

RH Slide

708003617

Unavailable

2320

LH Slide

708003618

Unavailable

2350

Seat Latch

281000020

$8.49

2400

Latch Rod

281000051

$26.84

2450

Compression Spring

281000063

$6.19

2500

Black, Socket Head Screw M4 X 16

250001011

$1.40

2505

Flat Washer 4 mm, Stainless

234042600

$1.06

2550

Elastic Stop Nut M4

232541200

$2.00

3200

Screw-Torx Truss Cone HD.M6X50 | Includes 270 to 270

250000827

$3.82

3300

Flat Washer M6, Stainless

234062600

$0.73

3350

Elastic Stop Nut M6, Brass

232561200

$4.03

3370

Backrest Support Ass'y

281000181

Unavailable

3500

Cone Torx Truss Screw HD.M6 X 15

250001147

$3.45

3600

Nut Housing M6 | Includes 555 to 555b

269502544

$5.07

3600a

Elastic Stop Nut M6, Brass

232561200

$4.03

3700

Hex. Elastic Nut M8 Brass

232581200

$1.48

3710

Torx Screw M6 X 60

250000631

$3.58

3720

Hex. Screw M8 X 25, Scotch Grip

207382560

$2.27

3750

Flat Washer M6, Stainless

234062600

$0.73

3900

Sapphire Breeze, Seat Cushion Ass'y -Tx | Includes 3900 to 3900h

281000272

Unavailable

3900d

Strap

269502417

$16.39

3900h

Black, Dart

293730011

$0.91

4200

Sapphire Breeze, DriverBackrest Ass'y Tx | Includes 4200 to 4200g1

281000263

Unavailable

4200g

Nut Housing M6 | Includes 555 to 555b

269502544

$5.07

4200g1

Elastic Stop Nut M6, Brass

232561200

$4.03

4210

LH Driver Arm Rest Ass'y

281000266

Unavailable

4212

Screw-Torx Truss Cone HD.M6X50 | Includes 270 to 270

250000827

$3.82

4214

Flat Washer M6 X 25

250200044

$1.97

4216

Nut Housing M6 | Includes 555 to 555b

269502544

$5.07

4216a

Elastic Stop Nut M6, Brass

232561200

$4.03

4220

LH Arm Rest Trim

281000251

Unavailable

4224

Cone Torx Truss Screw HD.M6 X 100

250001163

$3.66

4226

Hexagonal Cap Screw M6 X35

250000399

$4.15

4230

RH Driver Arm Rest Ass'y

281000269

Unavailable

4232

Screw-Torx Truss Cone HD.M6X50 | Includes 270 to 270

250000827

$3.82

4234

Flat Washer M6 X 25

250200044

$1.97

4236

Nut Housing M6 | Includes 555 to 555b

269502544

$5.07

4236a

Elastic Stop Nut M6, Brass

232561200

$4.03

4240

RH Arm Rest Trim

281000252

Unavailable

4244

Cone Torx Truss Screw HD.M6 X 100

250001163

$3.66

4246

Hexagonal Cap Screw M6 X35

250000399

$4.15
