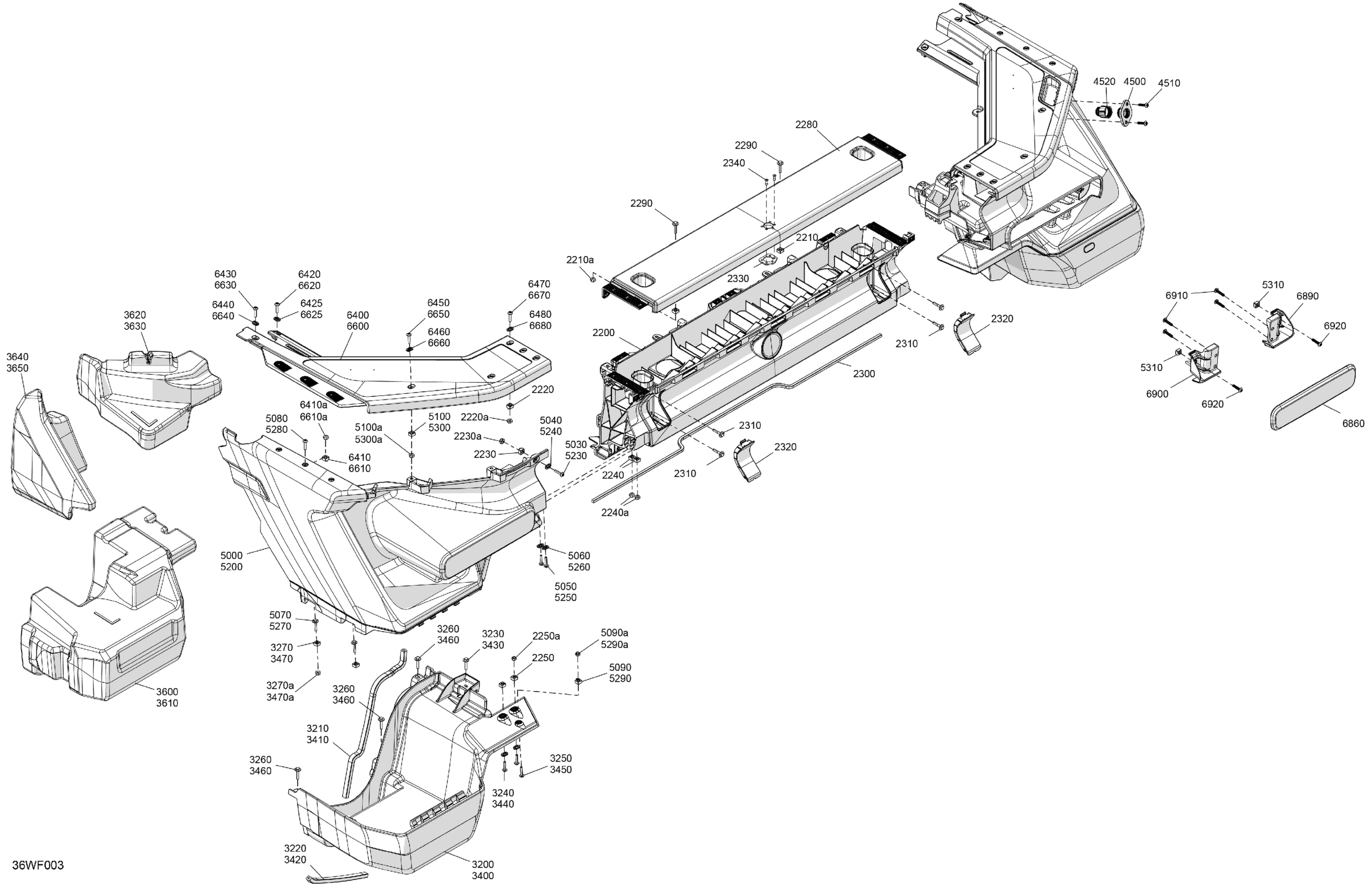

Sea-doo LTD 21 - 300 - 55TG - Dusty Navy - Trailer Galv - CAT-1-30-101 - 2026 HULL - Rear Deflector Float and Rear Bumper Diagram

#

Description
Price

2200

Rear Bumper Service Kit

295101095

$319.99

2210

Nut Housing M6 | Includes 555 to 555b

269502544

$6.53

2210a

Elastic Stop Nut M6, Brass

232561200

$4.23

2220

Nut Housing M6 | Includes 555 to 555b

269502544

$6.53

2220a

Elastic Stop Nut M6, Brass

232561200

$4.23

2230

Nut Housing M6 | Includes 555 to 555b

269502544

$6.53

2230a

Elastic Stop Nut M6, Brass

232561200

$4.23

2240

Nut Housing M6 | Includes 555 to 555b

269502544

$6.53

2240a

Elastic Stop Nut M6, Brass

232561200

$4.23

2250

Nut Housing M6 | Includes 555 to 555b

269502544

$6.53

2250a

Elastic Stop Nut M6, Brass

232561200

$4.23

2280

Deep Black, Bumper Trim

291006560

$129.99

2290

Screw Torx Truss Head M6 X 30

250001381

$4.12

2300

Gasket

292002523

$9.32

2310

Hex SEMS Screw M6X30

250001164

$1.37

2320

Rear Bumper Cap

291005459

$7.09

2330

Retaining Plate

291005813

$11.49

2340

Pop Rivet 4,8 X 21

293150311

$0.53

3200

LH Rear Float Deflector

291004847

$164.99

3210

Gasket

292002677

$30.99

3220

Gasket

292002677

$30.99

3230

Hex Screw SEMS M6X35, SS

250000969

$2.11

3240

Screw Torx Truss Head M6 X 30

250001381

$4.12

3250

Screw Torx Truss Head M6 X 30

250001381

$4.12

3260

Hex Screw SEMS M6X35, SS

250000969

$2.11

3270

Nut Housing M6 | Includes 555 to 555b

269502544

$6.53

3270a

Elastic Stop Nut M6, Brass

232561200

$4.23

3400

RH Rear Deflector Float

291006071

$164.99

3410

Gasket

292002677

$30.99

3420

Gasket

292002677

$30.99

3430

Hex Screw SEMS M6X35, SS

250000969

$2.11

3440

Screw Torx Truss Head M6 X 30

250001381

$4.12

3450

Screw Torx Truss Head M6 X 30

250001381

$4.12

3460

Hex Screw SEMS M6X35, SS

250000969

$2.11

3470

Nut Housing M6 | Includes 555 to 555b

269502544

$6.53

3470a

Elastic Stop Nut M6, Brass

232561200

$4.23

3600

LH Lower Rear Float

292002847

$76.99

3610

RH Lower Rear Float

292002848

$76.99

3620

LH Rear Upper Float

291005815

$27.99

3630

RH Rear Upper Float

291005816

$27.99

3640

LH Lat Rear Float

291005843

$27.99

3650

RH Rear Lateral Float

291005844

$27.99

4500

Through Hull Fitting

292002765

$7.79

4510

Plastite Screw Torx Cone HD.M6.81X3

250001138

$2.30

4520

Adapter Hose

291005837

$12.12

5000

Deep Black, LH Rear Panel

291006549

$319.99

5030

Screw Torx Truss Head M6 X 30

250001381

$4.12

5040

Oval Washer

291003880

$1.77

5050

Screw Torx Truss Head M6 X 30

250001381

$4.12

5060

Oval Washer

291003880

$1.77

5070

Hex Screw SEMS M6X35, SS

250000969

$2.11

5080

Screw Torx Truss Head M6 X 30

250001381

$4.12

5090

Nut Housing M6 | Includes 555 to 555b

269502544

$6.53

5090a

Elastic Stop Nut M6, Brass

232561200

$4.23

5100

Nut Housing M6 | Includes 555 to 555b

269502544

$6.53

5100a

Elastic Stop Nut M6, Brass

232561200

$4.23

5200

Deep Black, RH Rear Panel

291006550

$319.99

5230

Screw Torx Truss Head M6 X 30

250001381

$4.12

5240

Oval Washer

291003880

$1.77

5250

Screw Torx Truss Head M6 X 30

250001381

$4.12

5260

Oval Washer

291003880

$1.77

5270

Hex Screw SEMS M6X35, SS

250000969

$2.11

5280

Screw Torx Truss Head M6 X 30

250001381

$4.12

5290

Nut Housing M6 | Includes 555 to 555b

269502544

$6.53

5290a

Elastic Stop Nut M6, Brass

232561200

$4.23

5300

Nut Housing M6 | Includes 555 to 555b

269502544

$6.53

5300a

Elastic Stop Nut M6, Brass

232561200

$4.23

5310

Platite Insert 6.81

291005889

$5.82

6400

Deep Black, LH Rear Panel Trim

291006551

$109.99

6410

Nut Housing M6 | Includes 555 to 555b

269502544

$6.53

6410a

Elastic Stop Nut M6, Brass

232561200

$4.23

6420

Screw Torx Truss Head M6 X 30

250001381

$4.12

6425

Oval Washer

291003880

$1.77

6430

Screw Torx Truss Head M6 X 30

250001381

$4.12

6440

Oval Washer

291003880

$1.77

6450

Screw Torx Truss Head M6 X 30

250001381

$4.12

6460

Oval Washer

291003880

$1.77

6470

Screw Torx Truss Head M6 X 30

250001381

$4.12

6480

Oval Washer

291003880

$1.77

6600

Deep Black, RH Rear Panel Trim

291006552

$109.99

6610

Nut Housing M6 | Includes 555 to 555b

269502544

$6.53

6610a

Elastic Stop Nut M6, Brass

232561200

$4.23

6620

Screw Torx Truss Head M6 X 30

250001381

$4.12

6625

Oval Washer

291003880

$1.77

6630

Screw Torx Truss Head M6 X 30

250001381

$4.12

6640

Oval Washer

291003880

$1.77

6650

Screw Torx Truss Head M6 X 30

250001381

$4.12

6660

Oval Washer

291003880

$1.77

6670

Screw Torx Truss Head M6 X 30

250001381

$4.12

6680

Oval Washer

291003880

$1.77

6860

Ladder Trim Service Kit

295101099

$19.49

6890

RH Ladder Hole Cap

291006060

$11.99

6900

LH Ladder Hole Cap

291006072

$19.49

6910

Plastite Screw Torx Cone HD.M6.81X3

250001138

$2.30

6920

Plastite Screw Torx Cone HD.M6.81X3

250001138

$2.30
