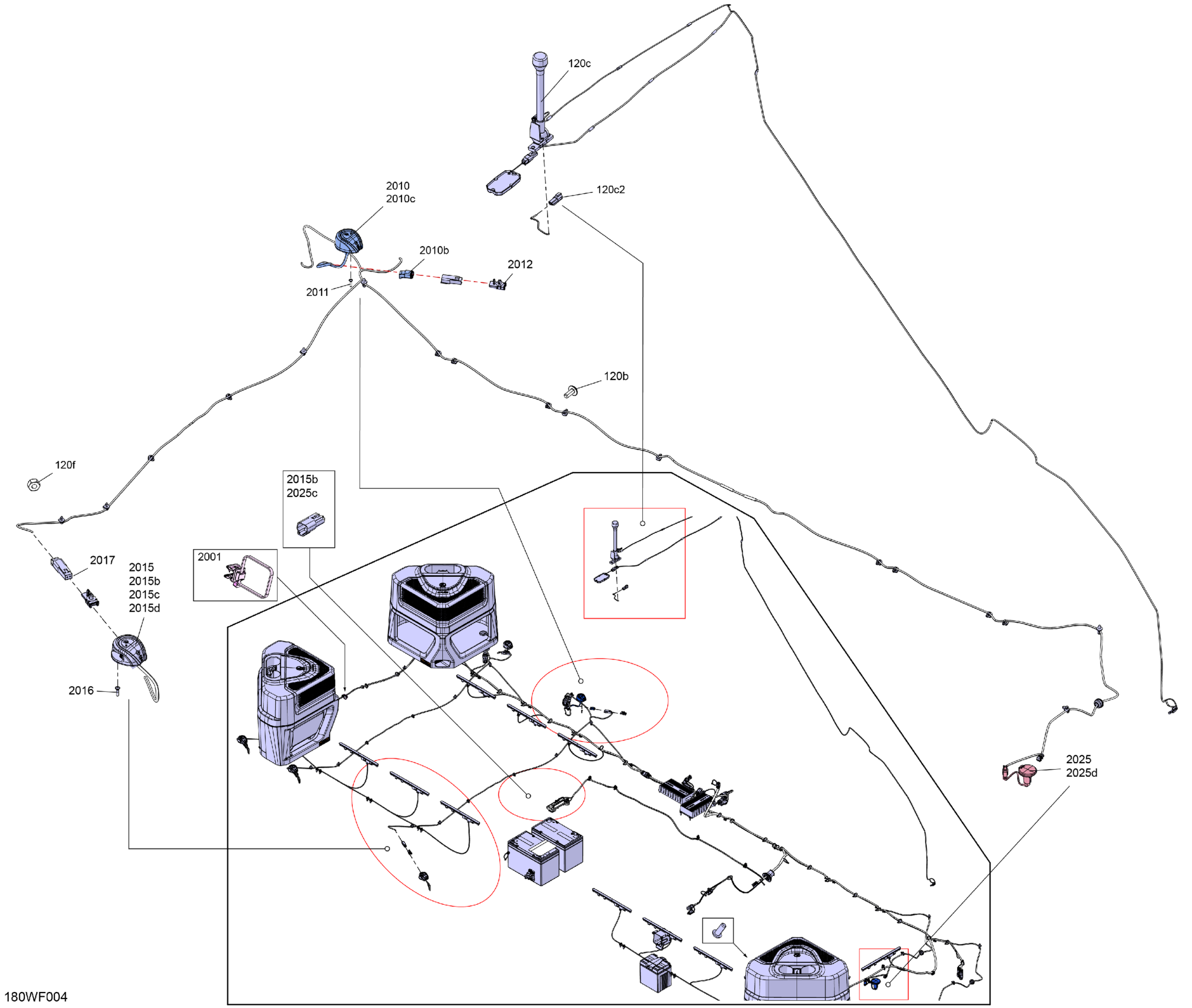

Sea-doo North America - LTD 21 - 300 - 55TA - Dusty Navy - Trailer Galv - CAT-1-30-101 - 2026 08- ELECTRIC - Lighting Diagram

Description

Price

120a

Dome Light

278004509

$96.49

120b

Torx Screw Bn Hd 3M-2353Y Iso.7380A2

235641060

$3.09

120c

Navigation Light All-Round White | Includes 120c to 120c4

278004278

$254.49

120c2

Male Amphenol Connector 2 Cavities | Not Shown

515179135

$10.38

120c3

Terminal

710005748

$3.49

120c4

Amphenol Connector Lock | Not Shown

515179136

$3.91

120d

Socket Head Screw M4 X 16 | Not Shown

205041660

$1.90

120f

Elastic Stop Nut M4

232541200

$2.11

2001

Anchorage Tie Wrap

293750103

$4.65

2010

Green, Side Navigation Light Ass'y | Includes 2010 to 2010d

278004019

$254.49

2010b

Amphenol Female Connector 2 Cavities

515178579

$10.38

2010c

Female Terminal

710005438

$4.29

2010d

Amphenol Lock Connector

515178580

$3.91

2011

Flange Torx Screw K40 X 16

250000287

$2.11

2012

Deutsch Connector Support

710006744

$3.49

2013

Screw Plastite Torx K30 X 8 | Not Shown

250001243

$1.26

2015

Red Side Navigatin Light Ass'y | Includes 2015 to 2015d

278004020

$254.49

2015b

Male Amphenol Connector 2 Cavities | Not Shown

515179135

$10.38

2015c

Terminal

710005748

$3.49

2015d

Amphenol Connector Lock | Not Shown

515179136

$3.91

2016

Flange Torx Screw K40 X 16

250000287

$2.11

2017

Deutsch Connector Support

710006744

$3.49

2018

Screw Plastite Torx K30 X 8 | Not Shown

250001243

$1.26

2025

Navigation Table Base Ass'y | Includes 2025 to 2025f

278004021

$34.99

2025c

Male Amphenol Connector 2 Cavities | Not Shown

515179135

$10.38

2025d

Terminal

710005748

$3.49

2025f

Amphenol Connector Lock | Not Shown

515179136

$3.91

2026

Pop Rivet 4,8 X 21

293150311

$0.53

4020

Light Console Ass'y | Not Shown

278004508

$54.99
