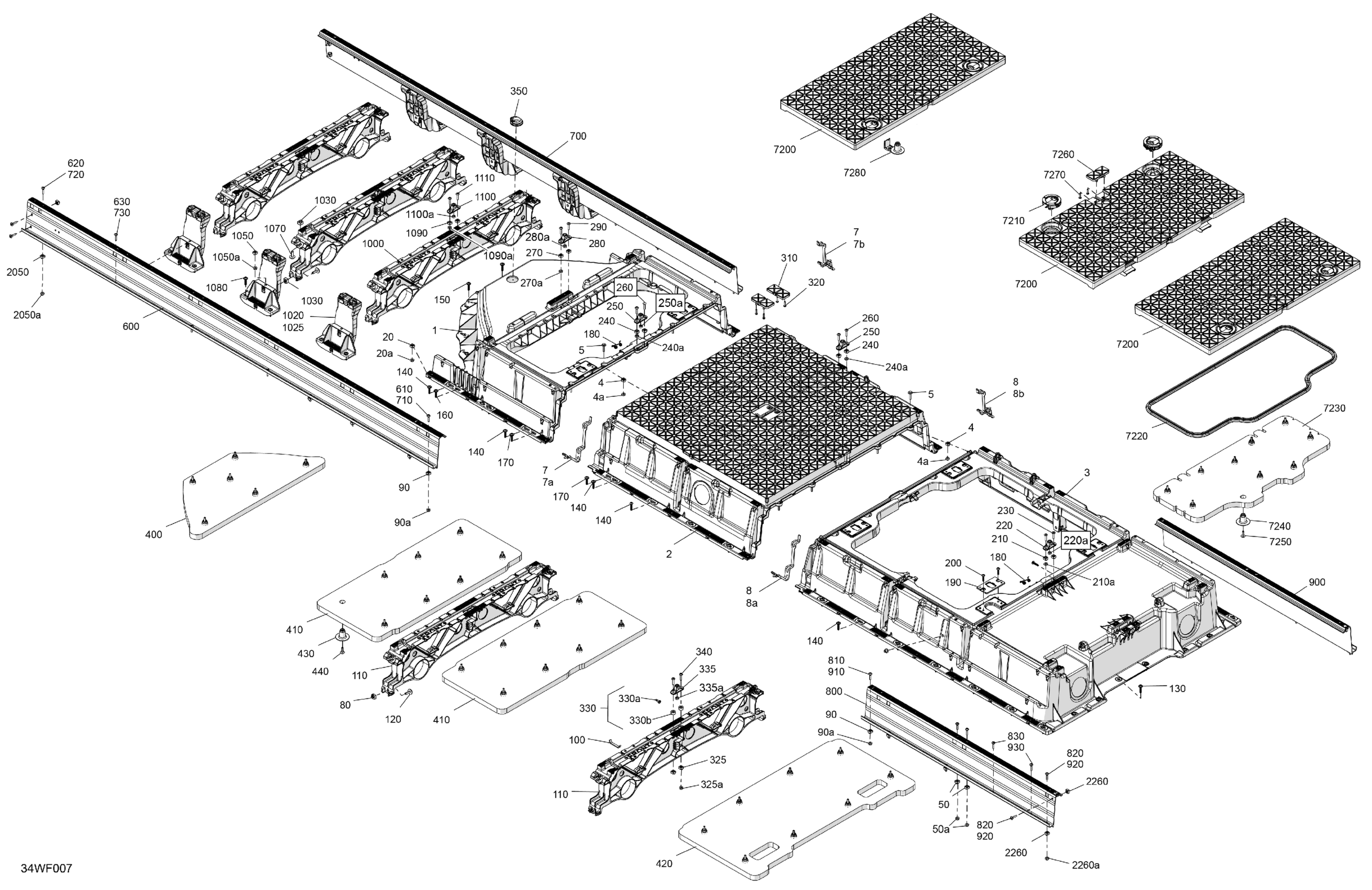

Sea-doo LTD 21 - 300 - 55TA - Dusty Navy - Trailer Galv - CAT-1-30-101 - 2026 HULL - Frame Diagram

#

Description
Price

1

Front Chassis

291006440

$519.99

2

Central Chassis

291004648

$789.99

3

Rear Frame Service Kit

295101120

$639.99

4

Nut Housing M6 | Includes 555 to 555b

269502544

$6.53

4a

Elastic Stop Nut M6, Brass

232561200

$4.23

5

Hex Screw SEMS M6X35, SS

250000969

$2.11

7

Gasket Kit | Includes 7 to 7b

295501261

$7.09

7a

Not Available As Spare Parts

XXX

Unavailable

7b

Not Available As Spare Parts

XXX

Unavailable

8

Gasket Kit | Includes 7 to 7b

295501261

$7.09

8a

Not Available As Spare Parts

XXX

Unavailable

8b

Not Available As Spare Parts

XXX

Unavailable

20

Nut Housing M6 | Includes 555 to 555b

269502544

$6.53

20a

Elastic Stop Nut M6, Brass

232561200

$4.23

50

Nut Housing M6 | Includes 555 to 555b

269502544

$6.53

50a

Elastic Stop Nut M6, Brass

232561200

$4.23

80

Elastic Nut Housing M8 | Included 10a6 to 10a6a

269501943

$6.67

90

Nut Housing M6 | Includes 555 to 555b

269502544

$6.53

90a

Elastic Stop Nut M6, Brass

232561200

$4.23

100

Gasket 3000Mm Long

219704378

$26.49

110

Crossmember

291004980

$119.99

120

Hexagonal Screw M8 X 30

250000888

$3.17

130

Hexagonal Cap Screw M6 X35

250000399

$4.44

140

Hexagonal Cap Screw M6 X35

250000399

$4.44

150

Hexagonal Cap Screw M6 X35

250000399

$4.44

160

Hexagonal Cap Screw M6 X35

250000399

$4.44

170

Hexagonal Cap Screw M6 X35

250000399

$4.44

180

Torsion Spring

291005695

$10.49

190

Lock Plate

291006507

$2.69

200

Plastite Torx Screw M6.81X30 | Not Shown

250000879

$2.11

210

Nut Housing M6 | Includes 555 to 555b

269502544

$6.53

210a

Elastic Stop Nut M6, Brass

232561200

$4.23

220

Table Anchorage | Includes 250 to 250a

291005631

$7.89

220a

Hex Nut M8

232081200

$1.26

230

Screw Torx Truss Head M6 X 30

250001381

$4.12

240

Nut Housing M6 | Includes 555 to 555b

269502544

$6.53

240a

Elastic Stop Nut M6, Brass

232561200

$4.23

250

Table Anchorage | Includes 250 to 250a

291005631

$7.89

250a

Hex Nut M8

232081200

$1.26

260

Screw Torx Truss Head M6 X 30

250001381

$4.12

270

Nut Housing M6 | Includes 555 to 555b

269502544

$6.53

270a

Elastic Stop Nut M6, Brass

232561200

$4.23

280

Table Anchorage | Includes 250 to 250a

291005631

$7.89

280a

Hex Nut M8

232081200

$1.26

290

Screw Torx Truss Head M6 X 30

250001381

$4.12

310

Double Tile Cap

291005630

$6.29

320

Hex. Screw 10-14 X 7/8”

211000023

$3.59

325

Nut Housing M6 | Includes 555 to 555b

269502544

$6.53

325a

Elastic Stop Nut M6, Brass

232561200

$4.23

330

Roller Bushing Kit | Includes 240 to 240b

295501160

$4.29

330a

Screw-Socket Shoulder M8X8

250000775

$8.29

330b

Roller Bushing Kit | Includes 240 to 240b

295501160

$4.29

335

Table Anchorage | Includes 250 to 250a

291005631

$7.89

335a

Hex Nut M8

232081200

$1.26

340

Screw Torx Truss Head M6 X 30

250001381

$4.12

350

Cable Grommet

293720092

$13.49

400

Front Chassis Acoustic Insulation

291005476

$40.99

410

Central Chassis Acoustic Insulation

291005477

$70.99

420

Rear Chassis Acoustic Insulation

291005478

$70.99

430

Fastener

291005474

$3.49

440

Hexagonal Cap Screw M6 X 25

250000978

$4.44

600

Side Member 251 CM

291004898

$339.99

610

Truss Cone Torx Screw M6 X 30

250000924

$7.51

620

Truss Cone Torx Screw M6 X 30

250000924

$7.51

630

Truss Cone Torx Screw M6 X 30

250000924

$7.51

700

Side Member 251 CM

291004899

$339.99

710

Truss Cone Torx Screw M6 X 30

250000924

$7.51

720

Truss Cone Torx Screw M6 X 30

250000924

$7.51

730

Truss Cone Torx Screw M6 X 30

250000924

$7.51

800

Side Member 115 CM

291004900

$169.99

810

Truss Cone Torx Screw M6 X 30

250000924

$7.51

820

Truss Cone Torx Screw M6 X 30

250000924

$7.51

830

Truss Cone Torx Screw M6 X 30

250000924

$7.51

900

Side Member 115 CM

291004901

$169.99

910

Truss Cone Torx Screw M6 X 30

250000924

$7.51

920

Truss Cone Torx Screw M6 X 30

250000924

$7.51

930

Truss Cone Torx Screw M6 X 30

250000924

$7.51

1000

Crossmember

291004980

$119.99

1020

LH Cross Member Support

291005384

$33.99

1025

RH Cross Member Support

291006024

$31.99

1030

Elastic Nut Housing M8 | Included 10a6 to 10a6a

269501943

$6.67

1050

Nut Housing M6 | Includes 555 to 555b

269502544

$6.53

1050a

Elastic Stop Nut M6, Brass

232561200

$4.23

1070

Hexagonal Screw M8 X 30

250000888

$3.17

1080

Hexagonal Cap Screw M6 X35

250000399

$4.44

1090

Nut Housing M6 | Includes 555 to 555b

269502544

$6.53

1090a

Elastic Stop Nut M6, Brass

232561200

$4.23

1100

Table Anchorage | Includes 250 to 250a

291005631

$7.89

1100a

Hex Nut M8

232081200

$1.26

1110

Screw Torx Truss Head M6 X 30

250001381

$4.12

2050

Nut Housing M6 | Includes 555 to 555b

269502544

$6.53

2050a

Elastic Stop Nut M6, Brass

232561200

$4.23

2260

Nut Housing M6 | Includes 555 to 555b

269502544

$6.53

2260a

Elastic Stop Nut M6, Brass

232561200

$4.23

7200

Access Cover

291004653

$229.99

7210

Latch Ass'y

291005473

$28.99

7220

Weather Strip

293250624

$38.99

7230

Acoustic Insulation Cover

291005475

$39.99

7240

Fastener

291005474

$3.49

7250

Hexagonal Cap Screw M6 X 25

250000978

$4.44

7260

Double Tile Cap

291005630

$6.29

7270

Hex. Screw 10-14 X 7/8”

211000023

$3.59

7280

Acces Cover Cone

291006233

$18.99
