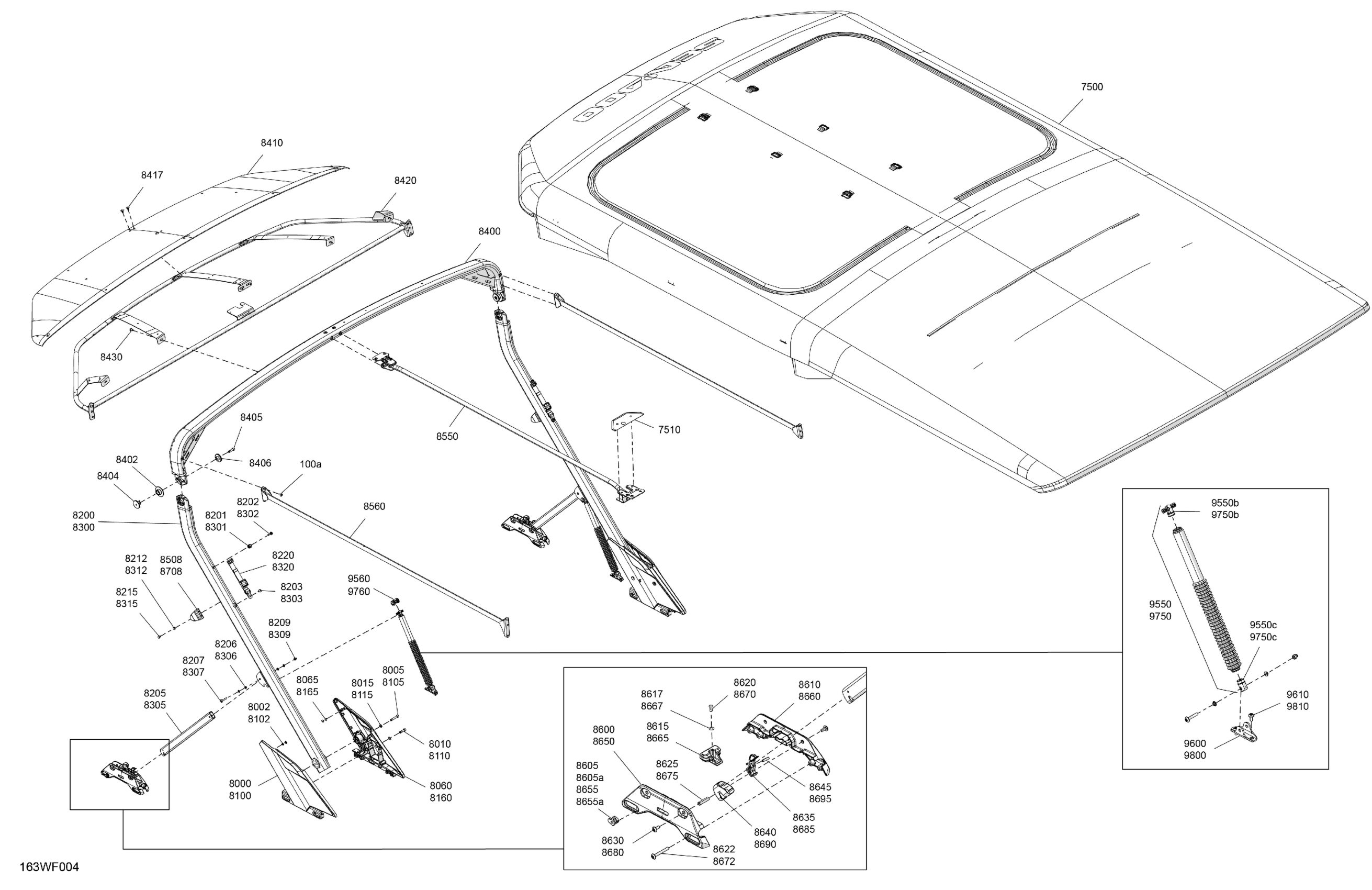

Sea-doo LTD 21 - 300 - 55TA - Dusty Navy - Trailer Galv - CAT-1-30-101 - 2026 CANVAS - Bimini Top Front Section Diagram

#

Description
Price

7500

Soft Bimini Roof

281300954

Unavailable

7510

Dome Light Trim

281301067

Unavailable

8000

LH Outer Bimini Anchorage

281300518

Unavailable

8002

Black Dart 5 mm

293730053

$4.28

8005

Socket Head Screw M8 X 45, S. GRIP

205584560

$3.22

8010

Socket Head Screw M8 X 30, Scotch Grip

205583060

$3.31

8015

Stainless, Flat Washer 8 mm

234081600

$0.52

8060

LH Inner Bimini Anchorage

281300520

Unavailable

8065

Black Dart 5 mm

293730053

$4.28

8100

RH Outer Bimini Anchorag

281300734

$44.75

8102

Black Dart 5 mm

293730053

$4.28

8105

Socket Head Screw M8 X 45, S. GRIP

205584560

$3.22

8110

Socket Head Screw M8 X 30, Scotch Grip

205583060

$3.31

8115

Stainless, Flat Washer 8 mm

234081600

$0.52

8160

RH Inner Bimini Anchorage

281300733

$44.75

8165

Black Dart 5 mm

293730053

$4.28

8200

Profiled Tube

281300903

Unavailable

8201

Kit Service Cover_Mooring

295101509

$14.43

8202

Cone Torx Truss Screw HD.M6 X 30

250001146

$3.66

8203

Cone Torx Truss Screw HD.M6 X 15

250001147

$3.45

8205

Profiled Tube

281300390

Unavailable

8206

Bushing

293900086

$2.06

8207

Cone Torx Truss Screw HD.M6 X 35

250001217

$3.66

8209

Hexagonal Jam Nut M6

232161600

$10.55

8212

Stainless Flat Washer M6

234061600

$0.28

8215

Pop Rivet 3/16"

293150008

$0.46

8220

Retaining Strap

281300988

Unavailable

8300

Profiled Tube

281300903

Unavailable

8301

Kit Service Cover_Mooring

295101509

$14.43

8302

Cone Torx Truss Screw HD.M6 X 30

250001146

$3.66

8303

Cone Torx Truss Screw HD.M6 X 15

250001147

$3.45

8305

Profiled Tube

281300390

Unavailable

8306

Bushing

293900086

$2.06

8307

Cone Torx Truss Screw HD.M6 X 35

250001217

$3.66

8309

Hexagonal Jam Nut M6

232161600

$10.55

8312

Stainless Flat Washer M6

234061600

$0.28

8315

Pop Rivet 3/16"

293150008

$0.46

8320

Retaining Strap

281300988

Unavailable

8400

Front Hoop

281300906

Unavailable

8402

Hinge Bushing

281300914

Unavailable

8404

Long Anodized Hinge Pin

281300973

Unavailable

8405

Socket Head Screw M8 X 30, Scotch Grip

205583060

$3.31

8406

Short Anodized Hinge Pin

281300974

Unavailable

8410

Roof Reinforcement

281300705

$50.72

8417

Black, Dart

414644300

$0.90

8420

Soft Roof Visor

281300898

Unavailable

8430

Cone Torx Truss Screw HD.M6 X 15

250001147

$3.45

8508

Bimini Stopper

281301015

Unavailable

8550

Central Crossbar

281300922

Unavailable

8560

Lateral Crossbar

281300916

Unavailable

8600

Exterior Support Anchorage

281300949

Unavailable

8605

Anodized Retaining Rod

281301092

Unavailable

8605a

Retaining Rod

281301059

Unavailable

8610

Inner Anchorage Support

281301007

Unavailable

8615

Rubber Stopper

281301005

Unavailable

8617

Stainless Flat Washer M6

234061600

$0.28

8620

Pop Rivet 3/16"

293150008

$0.46

8622

Cone Torx Truss Screw HD.M6 X 51

250001185

$3.66

8625

Rod Latch

281300566

$12.21

8630

Cone Torx Truss Screw HD.M6 X 15

250001147

$3.45

8635

Lever Latch

281300567

Unavailable

8640

Latch Trim

281300573

Unavailable

8645

Spring Pin 3/16 X 3/4

250400100

$2.07

8650

Exterior Support Anchorage

281300949

Unavailable

8655

Anodized Retaining Rod

281301092

Unavailable

8655a

Retaining Rod

281301059

Unavailable

8660

Inner Anchorage Support

281301007

Unavailable

8665

Rubber Stopper

281301005

Unavailable

8667

Stainless Flat Washer M6

234061600

$0.28

8670

Pop Rivet 3/16"

293150008

$0.46

8672

Cone Torx Truss Screw HD.M6 X 51

250001185

$3.66

8675

Rod Latch

281300566

$12.21

8680

Cone Torx Truss Screw HD.M6 X 15

250001147

$3.45

8685

Lever Latch

281300567

Unavailable

8690

Latch Trim

281300573

Unavailable

8695

Spring Pin 3/16 X 3/4

250400100

$2.07

8708

Bimini Stopper

281301015

Unavailable

9550

Shock Absorber | Includes 7550 to 7550c

281300926

Unavailable

9550b

Shock Absorber End Fitting

269501984

$10.19

9550c

Anodized Gas Cylinder End Fitting

292003285

Unavailable

9560

Shock Absorber Bushing

269502663

Unavailable

9600

Shock Absorber Anchorage

281301093

Unavailable

9610

Cone Torx Truss Screw HD.M6 X 15

250001147

$3.45

9750

Shock Absorber | Includes 7550 to 7550c

281300926

Unavailable

9750b

Shock Absorber End Fitting

269501984

$10.19

9750c

Anodized Gas Cylinder End Fitting

292003285

Unavailable

9760

Shock Absorber Bushing

269502663

Unavailable

9800

Shock Absorber Anchorage

281301093

Unavailable

9810

Cone Torx Truss Screw HD.M6 X 15

250001147

$3.45

100a

Cone Torx Truss Screw HD.M6 X 15

250001147

$3.45
