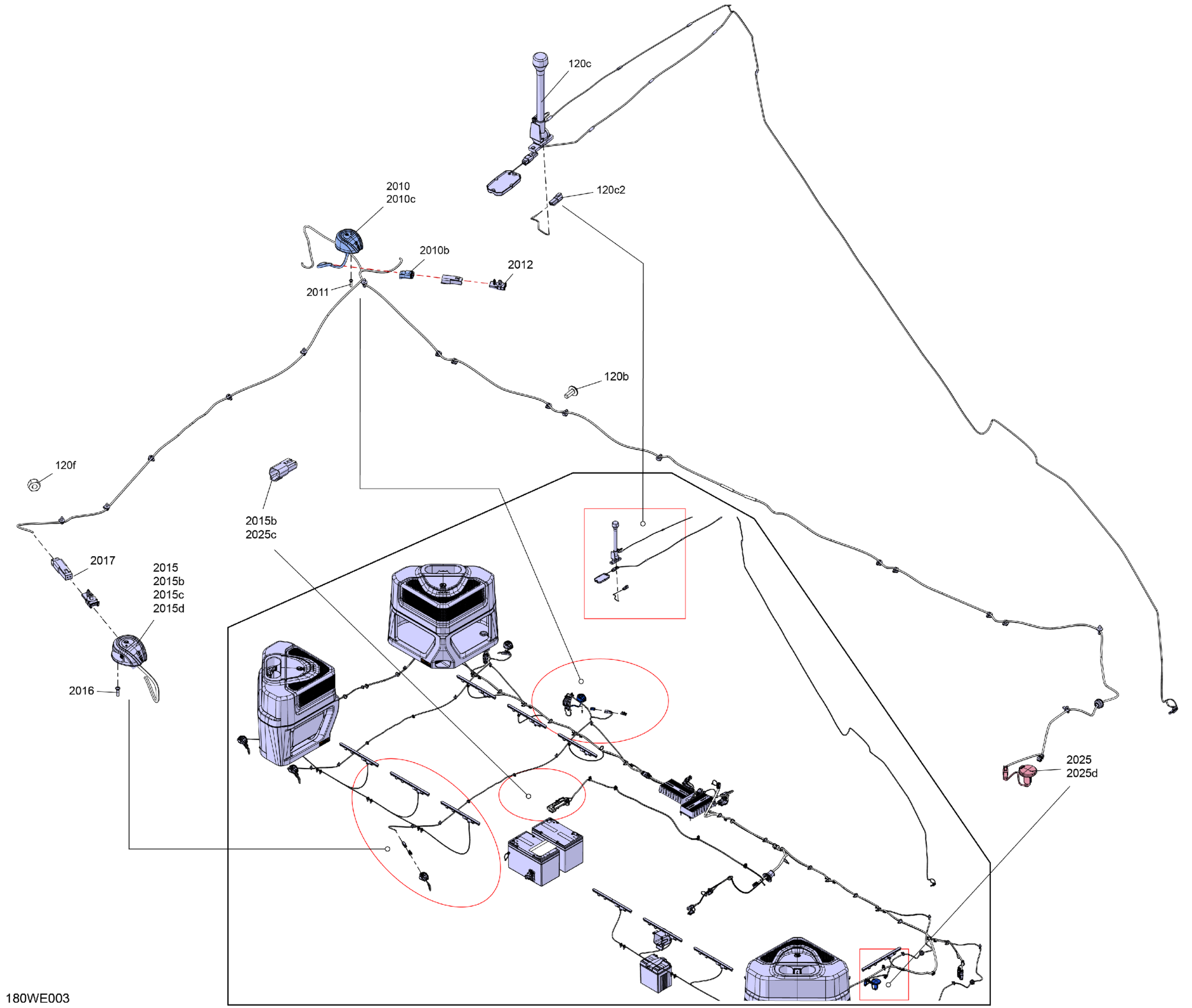

Sea-doo LTD 21 - 230 - 55SK - Dusty Navy - Trailer Paint - CAT2A - 2025 ELECTRIC - Lighting Diagram

Description

Price

120a

Visor Anchorage | Not Shown

281300760

Unavailable

120b

Cone Torx Truss Screw HD.M6 X 15

250001147

$3.00

120c

Navigation Light All-Round White | Includes 120c to 120c4

278004278

Unavailable

120c2

Male Amphenol Connector 2 Cavities | Not Shown

515179135

$10.15

120c3

Terminal

710005748

$2.72

120c4

Amphenol Connector Lock | Not Shown

515179136

$3.85

120d

Socket Head Screw M4 X 16 | Not Shown

205041660

$1.56

120f

Elastic Stop Nut M4

232541200

$1.74

2010

Green, Side Navigation Light Ass'y | Includes 2010 to 2010d

278004019

Unavailable

2010b

Amphenol Female Connector 2 Cavities

515178579

$10.14

2010c

Female Terminal

710005438

$4.00

2010d

Amphenol Lock Connector

515178580

$3.68

2011

Flange Torx Screw K40 X 16

250000287

$1.74

2012

Deutsch Connector Support

710006744

$3.23

2013

Screw Plastite Torx K30 X 8 | Not Shown

250001243

$1.26

2015

Red Side Navigatin Light Ass'y | Includes 2015 to 2015d

278004020

Unavailable

2015b

Male Amphenol Connector 2 Cavities | Not Shown

515179135

$10.15

2015c

Terminal

710005748

$2.72

2015d

Amphenol Connector Lock | Not Shown

515179136

$3.85

2016

Flange Torx Screw K40 X 16

250000287

$1.74

2017

Deutsch Connector Support

710006744

$3.23

2018

Screw Plastite Torx K30 X 8 | Not Shown

250001243

$1.26

2025

Navigation Table Base Ass'y | Includes 2025 to 2025f

278004021

Unavailable

2025c

Male Amphenol Connector 2 Cavities | Not Shown

515179135

$10.15

2025d

Terminal

710005748

$2.72

2025f

Amphenol Connector Lock | Not Shown

515179136

$3.85

4020

Light Console Ass'y | Not Shown

278004508

Unavailable
