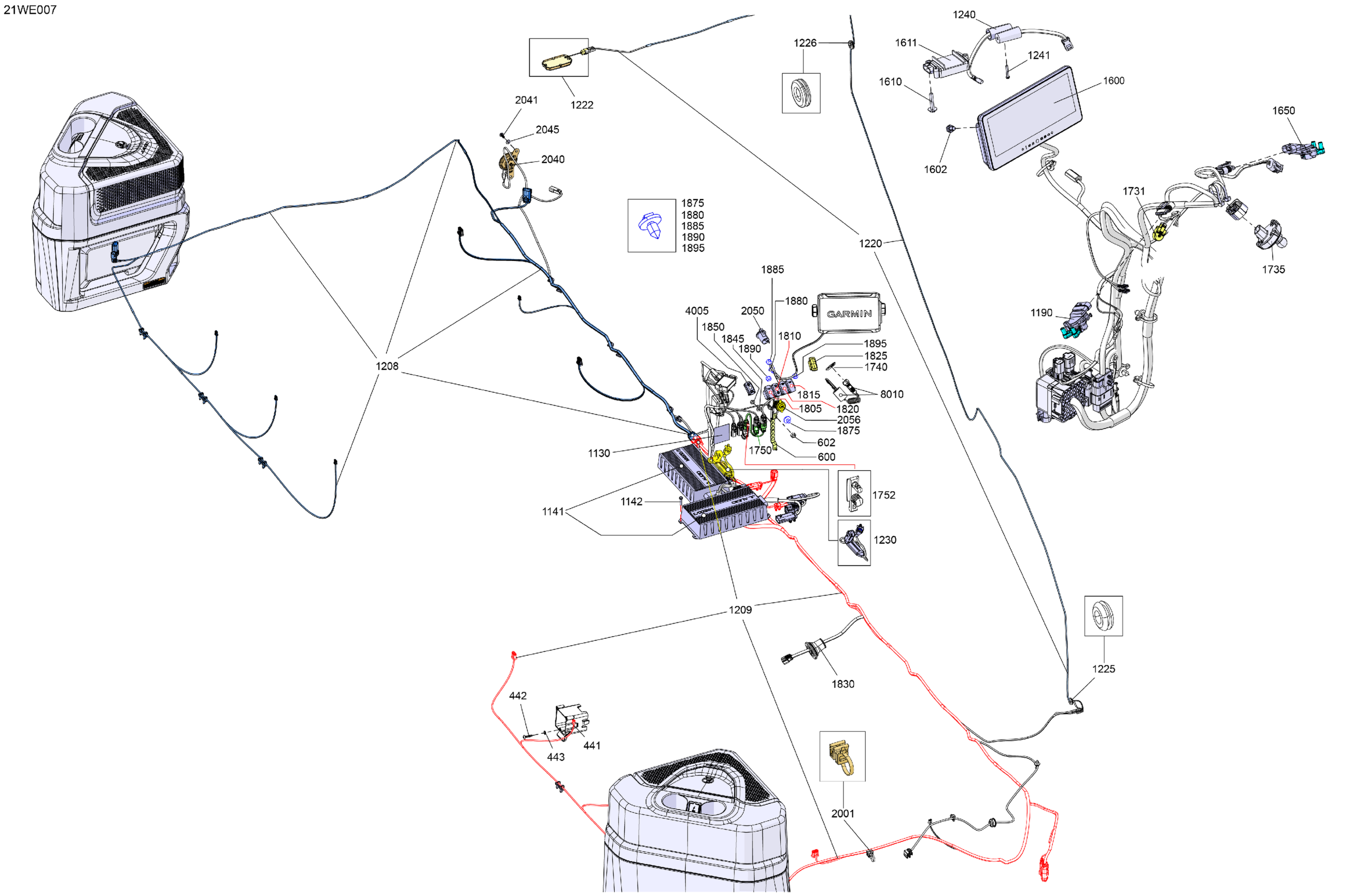

Sea-doo LTD 21 - 230 - 55SK - Dusty Navy - Trailer Paint - CAT2A - 2025 ELECTRIC - Electric Upper Section Diagram

Description

Price

441

Switch Support

278004308

$14.27

442

Plastite Screw Torx Cone HD.M6.81X3

250001138

$1.61

443

Sealing Washer

250200114

$3.61

600

Busbar Ass'y

281000234

$36.89

602

Elastic Stop Nut M6, Brass

232561200

$3.51

1130

Fuse Holder Label

219906673

Unavailable

1141

Audio Amplifier

278004685

Unavailable

1142

Hex. Screw 10-14 X 7/8”

211000023

$2.91

1208

Audio Device Wiring Harness

278004422

Unavailable

1209

Audio Device Wiring Harness

278004423

Unavailable

1220

Roof Wiring Harness

278004242

Unavailable

1222

Dome Light

278004206

Unavailable

1225

Grommet

293720062

$4.16

1226

Grommet

517303756

$3.15

1230

LED Module

278004260

$156.89

1232

Tile Light

278004205

Unavailable

1240

Console Light

278004207

Unavailable

1241

Hex. Flange Screw K40 X 25

241142560

$2.17

1602

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.48

1610

Hexagonal Cap Screw M6 X35

250000399

$3.61

1611

GPS

278004506

$85.77

1740

Specialized Nut

278004274

$2.72

1750

Multiple Accessory Harness

278003684

$41.57

1752

Connector Support

515179692

$1.63

1805

Horn Switch

278003690

$50.74

1810

Nav & Anchor Light Switch

278003691

$32.28

1815

Pump Switch

278003692

$55.35

1820

Vent Switch

278003693

$46.12

1825

Plug

278004279

Unavailable

1830

Cable Boot

293720134

Unavailable

1845

Stainless Flat Washer M6

234061600

$0.25

1850

Elastic Stop Nut M6, Brass

232561200

$3.51

1875

Mount Dart

710008294

$1.02

1880

Mount Dart

710008294

$1.02

1885

Mount Dart

710008294

$1.02

1890

Mount Dart

710008294

$1.02

1895

Mount Dart

710008294

$1.02

2001

Anchorage Tie Wrap

293750103

$4.60

2040

Horn

278003906

Unavailable

2041

Plastite Torx Screw Cone HD.M6.81X2

250001171

$4.39

2045

Stainless, Flat Washer 8 mm

234081600

$0.46

2050

12V Power Outlet

710005374

$27.27

2056

USB Outlet

219400510

$40.92

4005

Rocker Switch Button

278004380

Unavailable

8010

Safety Lanyard Ass'y, RFID

278003400

$58.47

8030

Cord Cut Off Switch Tether | Not Shown

278004223

$25.97

1190

LH Throttle Sensor

278002284

$115.35

1600

Multifunction Gauge 10

710009417

Unavailable

1650

Throttle Position Sensor

278002283

$94.22

1731

Start/Stop Switch This part replaces 296000440.

296000440

$42.87

1735

Terminal DESS One Wire

515179305

$60.42
