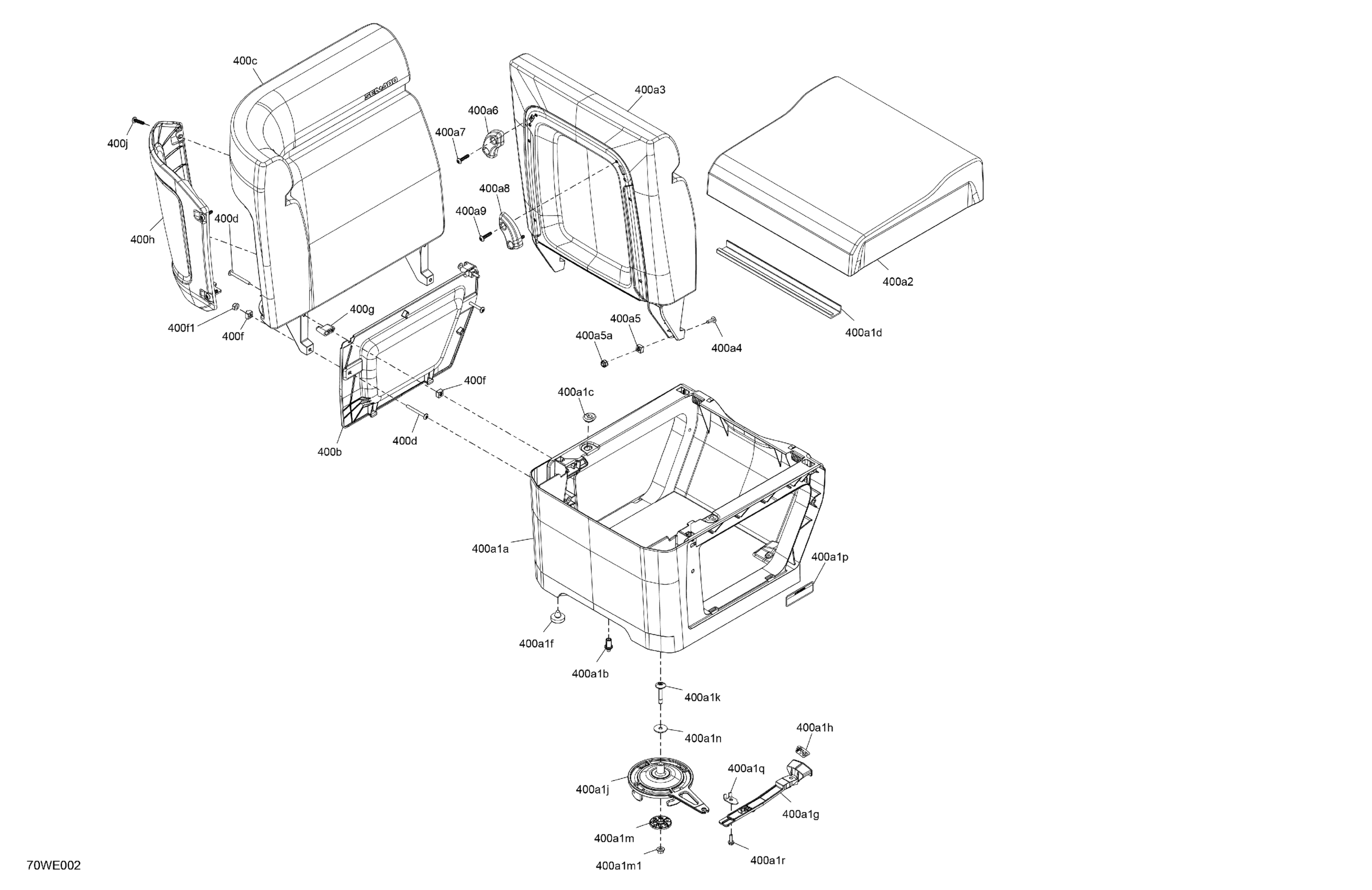

Sea-doo LTD 21 - 230 - 55SK - Dusty Navy - Trailer Paint - CAT2A - 2025 FURNITURE - Corner Seat Backrest (LH) Diagram

Description

Price

400a1a

Seat Support Service Kit

295101127

Unavailable

400a1b

Locator Rod

269003492

$5.40

400a1c

Oval Washer

705000321

$5.33

400a1d

Gutter

269003483

$2.61

400a1f

Rubber Stopper

269003502

$6.18

400a1g

Lever Latch Service Kit

295101126

Unavailable

400a1h

Lever Decal

219905993

Unavailable

400a1j

Seat Anchorage

269003311

$16.39

400a1k

Torx Head M8 X 50 S.GRIP

250001154

$10.10

400a1m

Housing Nut M8 | Includes 400a1m to 400a1m1

293450387

$6.58

400a1m1

Hex. Flange Nut M8

233181600

$0.99

400a1n

Flat Washer 8 mm

250200130

$3.00

400a1p

Seat Anchorage Warning Label

219905883

Unavailable

400a1q

Guide

269004160

$9.66

400a1r

Hex. Flange Screw M6.81 x 20

243162060

$3.79

400a2

Dusty Navy Satin, Seat Cushion Ass'y

269004050

Unavailable

400a3

Dusty Navy Satin, Backrest Ass'y

269004052

Unavailable

400a4

Torx Screw M6 X 20, Stainless | Package XDSXRS

250000234

$3.33

400a5

Nut Housing M6 | Includes 555 to 555b

269502544

$5.07

400a5a

Elastic Stop Nut M6, Brass

232561200

$4.03

400a6

LH Backrest Stopper

269004219

$3.61

400a7

Plastite Screw Torx Cone HD.M6.81X3

250001138

$1.85

400a8

RH Backrest Stopper

269004220

$3.61

400a9

Plastite Screw Torx Cone HD.M6.81X3

250001138

$1.85

400b

LH Panel Seat Switch Kit

295101046

Unavailable

400c

Dusty Navy Satin, LH Backrest Ass'y

269004058

Unavailable

400d

Torx Screw M6 X 60

250000631

$3.58

400f

Nut Housing M6 | Includes 555 to 555b

269502544

$5.07

400f1

Elastic Stop Nut M6, Brass

232561200

$4.03

400g

Spacer

293900146

$1.85

400h

LH Exterior Support

269003509

$65.64

400j

Plastite Torx Screw M6.81X30 | Not Shown

250000879

$2.00
