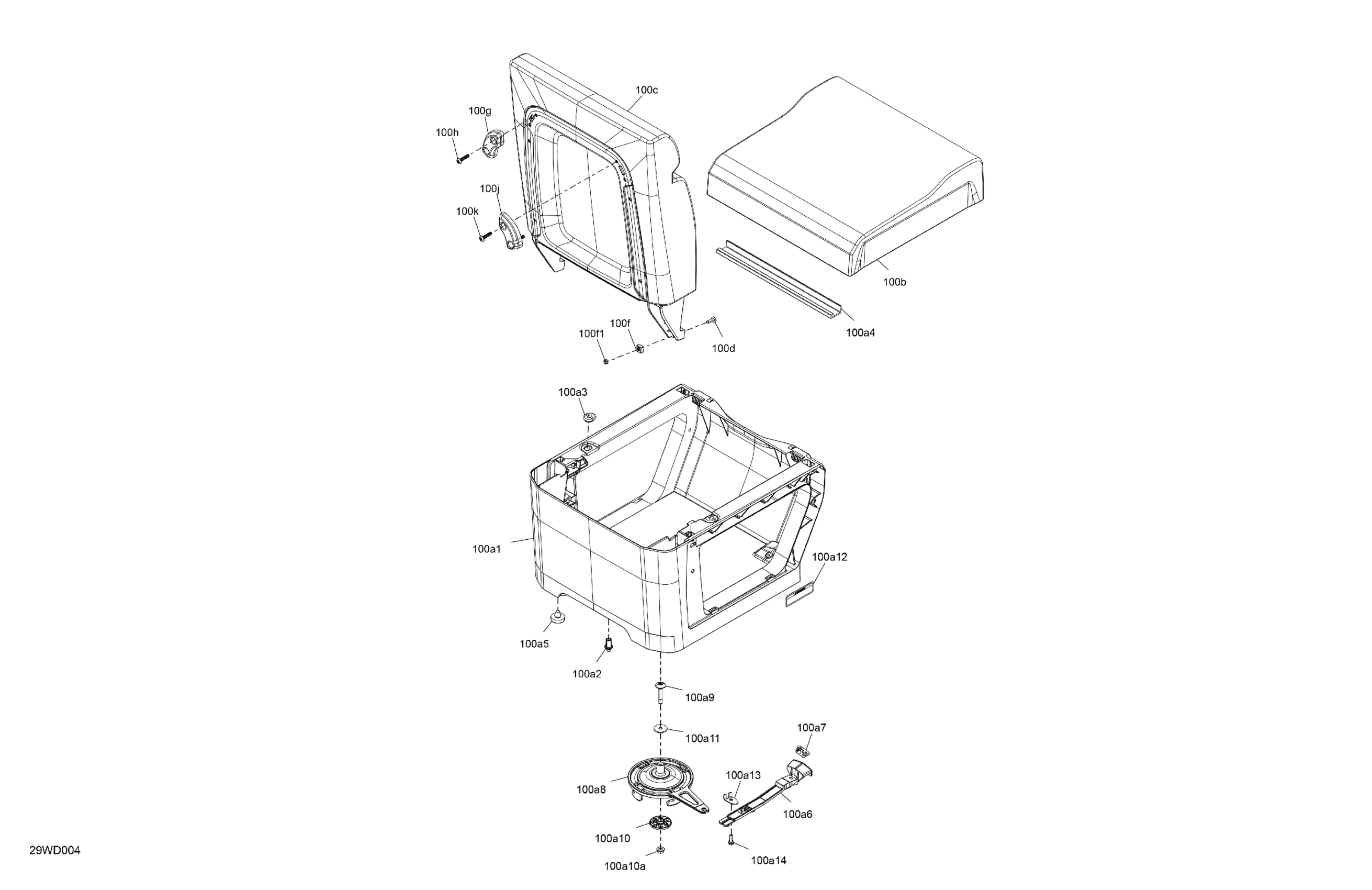

Sea-doo LIMITED 21 - 230 - 55RA - Blue - Trailer Paint - CAT2B, 2024 FURNITURE - Single Seat Diagram

Description

Price

100a1

Seat Support Service Kit

295101127

$379.99

100a2

Locator Rod

269003492

$6.09

100a3

Oval Washer

705000321

$5.61

100a4

Gutter

269003483

$2.89

100a5

Rubber Stopper

269003502

$6.89

100a6

Lever Latch Service Kit

295101126

$24.99

100a7

Lever Decal

219905993

Unavailable

100a8

Seat Anchorage

269003311

$19.99

100a9

Torx Head M8 X 50 S.GRIP

250001154

$12.11

100a10

Housing Nut M8 | Includes 400a1m to 400a1m1

293450387

$7.09

100a10a

Hex. Flange Nut M8

233181600

$1.05

100a11

Flat Washer 8 mm

250200130

$3.17

100a12

Seat Anchorage Warning Label

219905883

Unavailable

100a13

Guide

269003887

$10.99

100a14

Hex. Flange Screw M6.81 x 20

243162060

$3.72

100b

Dusty Navy Satin, Seat Cushion Ass'y

269004050

$279.99

100c

Dusty Navy Satin, Backrest Ass'y

269004052

$339.99

100d

Torx Screw M6 X 20, Stainless | Package XDSXRS

250000234

$3.69

100f

Nut Housing M6 | Includes 555 to 555b

269502544

$6.53

100f1

Elastic Stop Nut M6, Brass

232561200

$4.23

100g

LH Rubber Stopper

269003903

$3.69

100h

Plastite Screw Torx Cone HD.M6.81X3

250001138

$2.30

100j

RH Rubber Stopper

269003904

$3.69

100k

Plastite Screw Torx Cone HD.M6.81X3

250001138

$2.30
