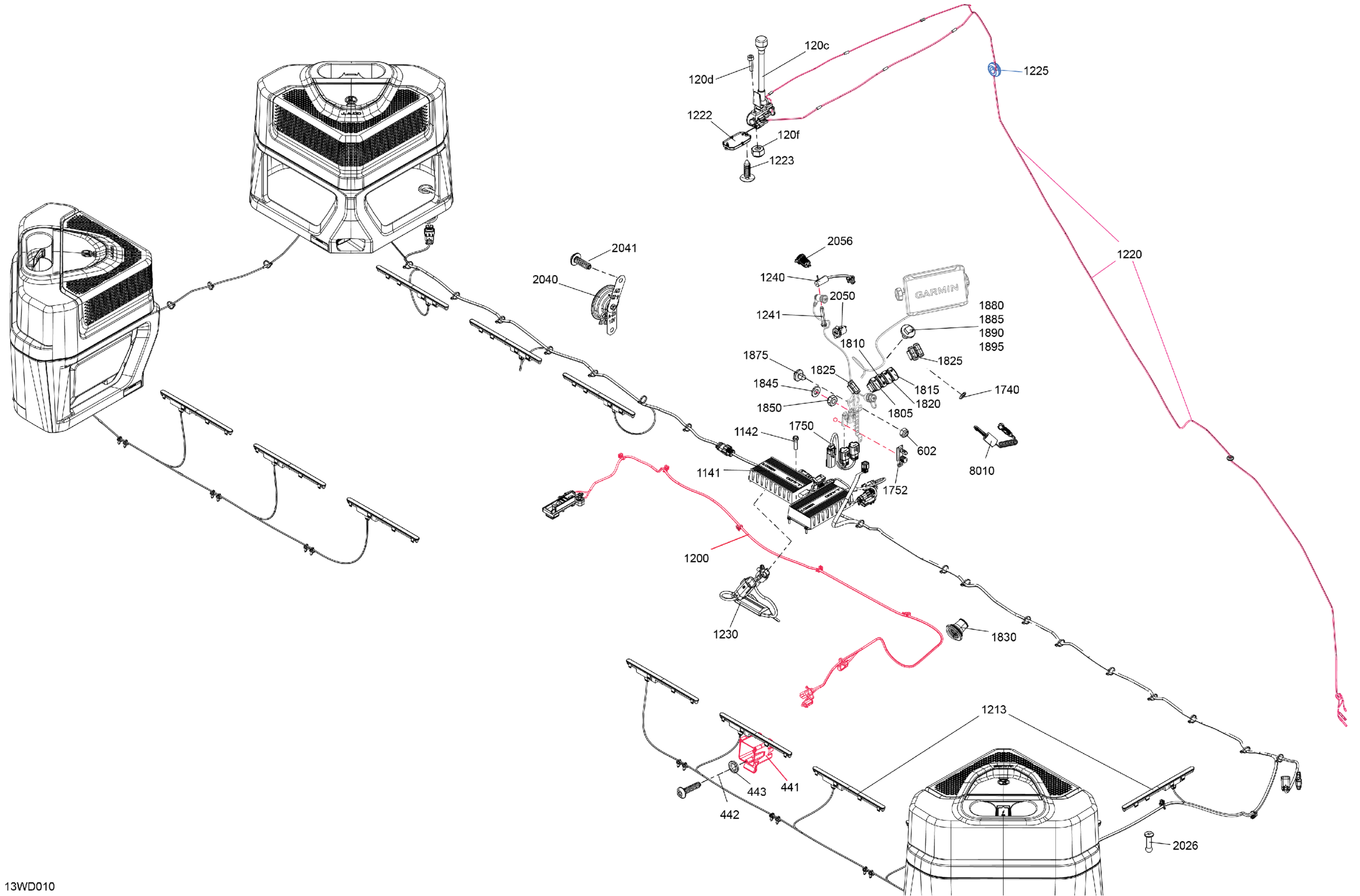

Sea-doo LIMITED 21 - 230 - 55RA - Blue - Trailer Paint - CAT2B, 2024 MECHANICS - Electric - Upper Section Diagram

Description

Price

120c3

Terminal

710005748

$3.12

120a

Visor Anchorage | Not Shown

281300760

Unavailable

120b

Cone Torx Truss Screw HD.M6 X 15

250001147

$3.45

120c

Navigation Light All-Round White | Includes 120c to 120c4

278004278

Unavailable

120d

Socket Head Screw M4 X 16 | Not Shown

205041660

$1.79

120f

Elastic Stop Nut M4

232541200

$2.00

441

Switch Support

278004308

$16.39

442

Plastite Screw Torx Cone HD.M6.81X3

250001138

$1.85

443

Sealing Washer

250200114

$4.15

602

Elastic Stop Nut M6, Brass

232561200

$4.03

1130

Fuse Holder Label | Not Shown

219906619

Unavailable

1141

Audio Amplifier

278004685

Unavailable

1142

Hex. Screw 10-14 X 7/8”

211000023

$3.34

1200

Lighting Wiring Harness

278004240

Unavailable

1213

Tile Light

278004205

Unavailable

1220

Roof Wiring Harness

278004242

Unavailable

1222

Dome Light

278004206

Unavailable

1223

Black, Dart

293730006

$0.93

1225

Grommet

293720062

$4.78

1230

LED Module

278004260

$146.24

1240

Console Light

278004207

Unavailable

1241

Hex. Flange Screw K40 X 25

241142560

$2.49

1602

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.55

1610

Hexagonal Cap Screw M6 X35

250000399

$4.15

1740

Specialized Nut

278004274

$3.12

1750

Multiple Accessory Harness

278003684

$47.73

1752

Connector Support

515179692

$1.87

1805

Horn Switch

278003690

$49.22

1810

Nav & Anchor Light Switch

278003691

$35.49

1815

Pump Switch

278003692

$51.46

1820

Vent Switch

278003693

$42.51

1825

Plug

278004279

Unavailable

1830

Cable Boot

293720134

Unavailable

1845

Stainless Flat Washer M6

234061600

$0.28

1850

Elastic Stop Nut M6, Brass

232561200

$4.03

1875

Mount Dart

710008294

$0.99

1880

Mount Dart

710008294

$0.99

1885

Mount Dart

710008294

$0.99

1890

Mount Dart

710008294

$0.99

1895

Mount Dart

710008294

$0.99

2001

Anchorage Tie Wrap

293750103

$4.27

2026

Pop Rivet 3/16"

293150005

$0.46

2040

Horn

278003906

Unavailable

2041

Plastite Torx Screw Cone HD.M6.81X2

250001171

$5.04

2045

Stainless, Flat Washer 8 mm

234081600

$0.52

2050

12V Power Outlet

710005374

$31.31

2056

USB Outlet

219400510

$43.99

4005

Rocker Switch Button

278004380

Unavailable

8010

Safety Lanyard Ass'y, RFID

278003400

$67.13
