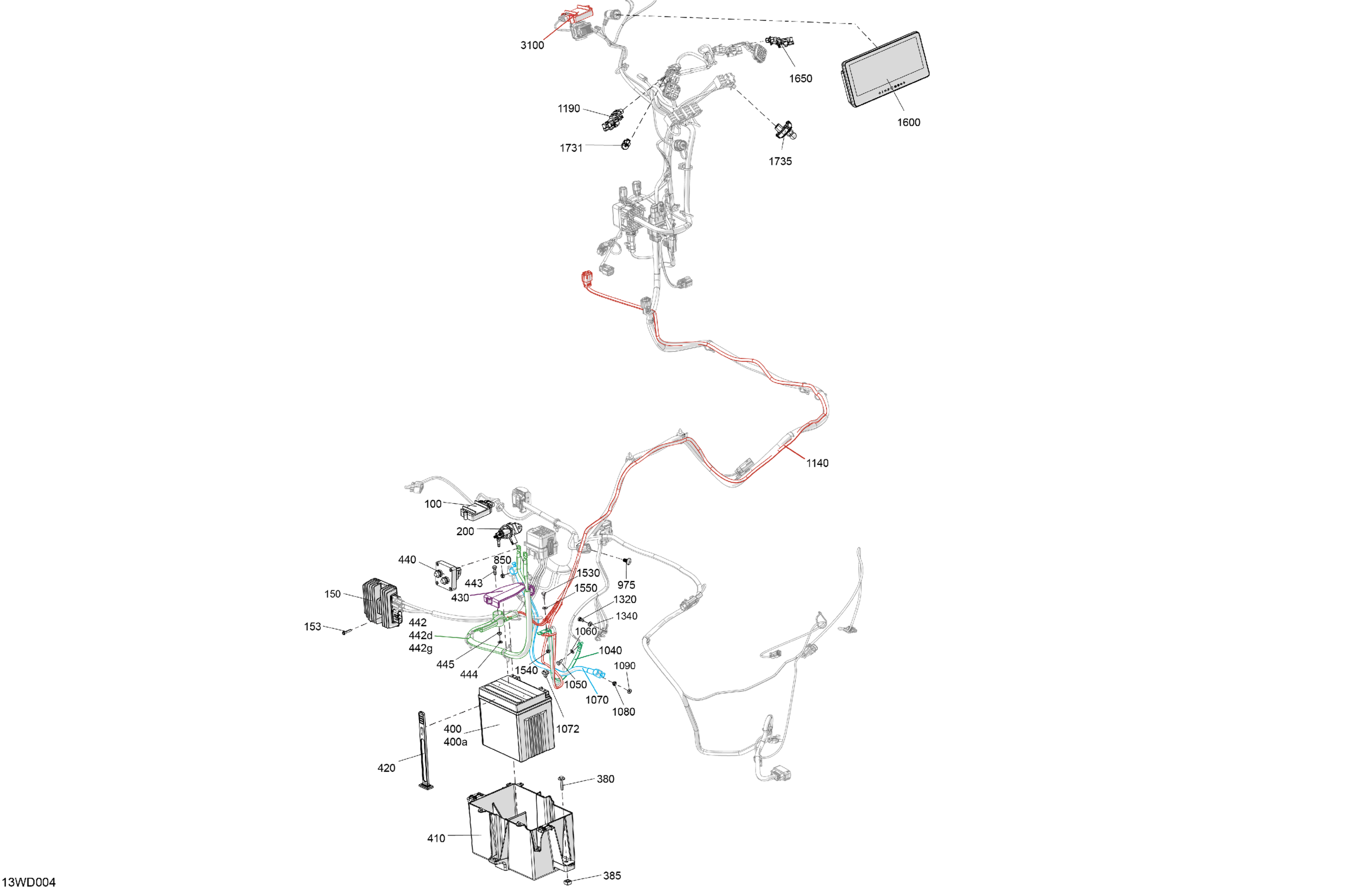

Sea-doo North America - LIMITED 21 - 230 - 55RA - Blue - Trailer Paint - CAT2B, 2024 02- MECHANICS - Electric - Lower Section Diagram

Description

Price

100

Gateway Can Module

204471484

$214.99

150

Voltage Regulator

710005842

$189.99

153

Hex. Flange Screw K50 X 25

250000680

$1.89

200

Starter Relay

278003012

$42.49

380

Hex Screw SEMS M6X35, SS

250000969

$2.11

385

Nut Housing M6 | Includes 555 to 555b

269502544

$6.53

400

Battery | Includes 900 to 900a

515176151

$219.99

400a

Battery Bolt Kit

250000282

$7.29

410

Battery Support

278004264

$80.99

420

Strap

269502417

$17.69

430

Clip

278004284

$18.49

440

Switch

278004300

$74.99

442

Battery Wiring Harness | Includes 442 to 442g

278004320

$38.99

442d

Shrink Tubing, 6 mm

515177246

$1.04

442g

Protector Cap | STD Models

710001829

$9.95

443

Hex. Screw M6 X 20, Scotch Grip

207362060

$1.47

444

Stainless Flat Washer M6

234061600

$0.33

445

Elastic Stop Nut M6, Brass

232561200

$4.23

850

Elastic Stop Nut M6, Brass

232561200

$4.23

975

Black Dart

293730010

$0.99

1040

Negative Cable

278004389

$38.99

1050

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.58

1060

Stainless Flat Washer M6

234061600

$0.33

1070

Starter Cable

278003369

$39.99

1072

Mount Dart

710008294

$1.04

1080

Elastic Stop Nut M6, Brass

232561200

$4.23

1090

Stainless Flat Washer M6

234061600

$0.33

1140

Accessories Wiring Harness

278004236

$129.99

1190

LH Throttle Sensor

278002284

$119.99

1320

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.58

1340

Stainless Flat Washer M6

234061600

$0.33

1401

Hex. Flange Screw M6.81 x 20

243162060

$3.72

1402

Echo Sounder Support

278004377

$229.99

1403

Gel Pad

293550042

$21.99

1530

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.58

1540

Elastic Stop Nut M6, Brass

232561200

$4.23

1550

Stainless Flat Washer M6

234061600

$0.33

1600

Multifunction Gauge 10

710009417

$2,049.99

1650

Throttle Position Sensor

278002283

$119.99

1731

Start/Stop Switch This part replaces 296000440.

296000440

$46.49

1735

Terminal DESS One Wire

515179305

$74.99

3100

GPS

278004506

$109.99
