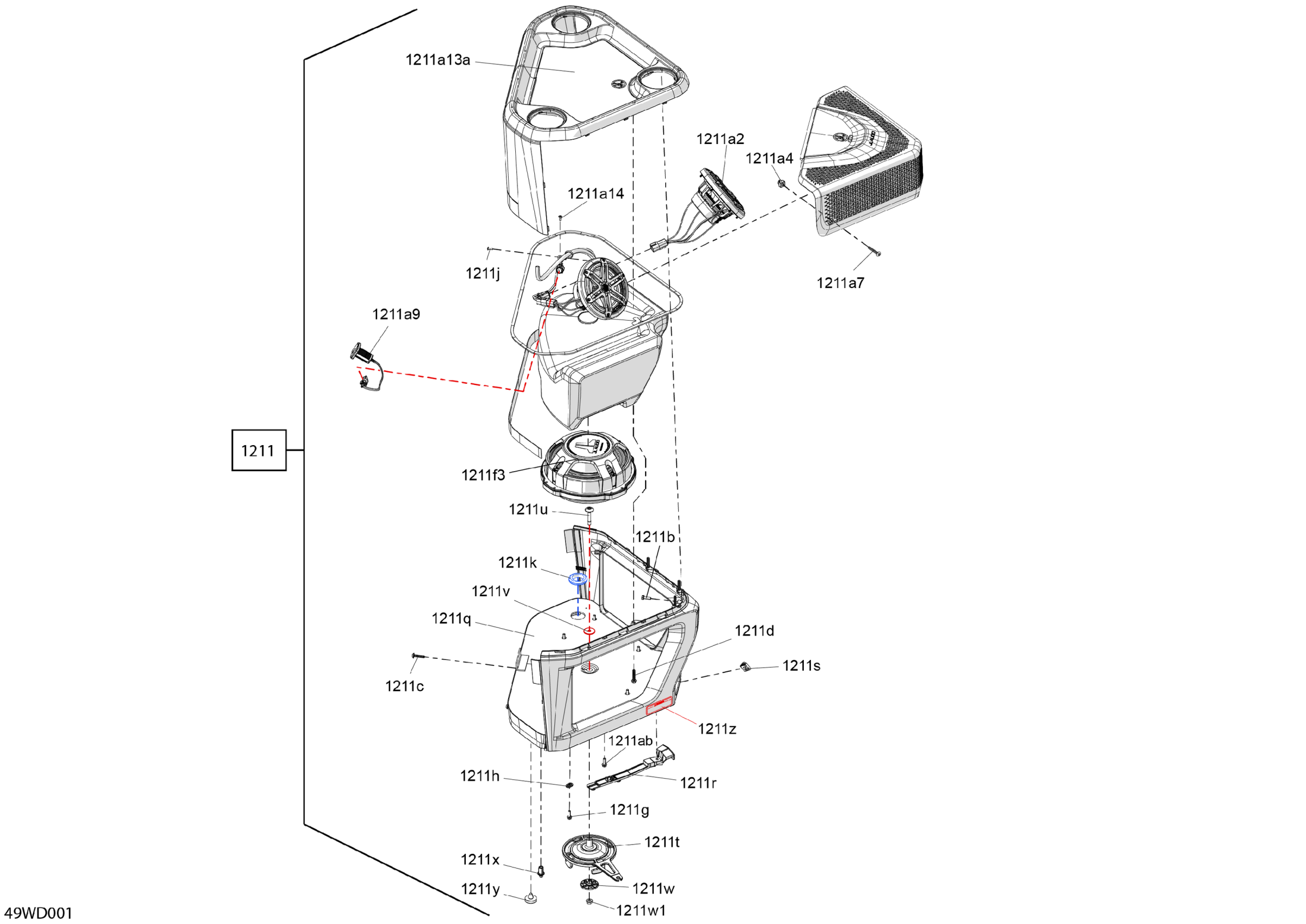

Sea-doo LIMITED 21 - 230 - 55RA - Blue - Trailer Paint - CAT2B, 2024 MECHANICS - Audio System Switch Kit Diagram

Description

Price

1211

Audio System Switch Kit | Includes 1211 to 1211ab

295101214

Unavailable

1211a2

Loudspeaker

278003939

Unavailable

1211a4

Insert

291003793

$2.44

1211a7

Plastite Torx Screw Cone HD. M6.81X4

250001191

$3.12

1211a9

Usb Port

278004003

Unavailable

1211a13a

Top Corner Table

269003533

$429.97

1211a14

Torx Truss PT K40 x 12

250001131

$1.74

1211b

Hex. Flange Screw M6.81 x 20

243162060

$3.30

1211c

Plastite Torx Screw M6.81X30 | Not Shown

250000879

$1.74

1211d

Plastite Hex. Screw M6.8 X 35

243163560

$3.61

1211f3

Bass Loudspeaker

278003964

Unavailable

1211g

Hex. Flange Screw M6.81 x 20

243162060

$3.30

1211h

Oval Washer

291003880

$1.18

1211j

Torx Truss PT K40 x 12

250001131

$1.74

1211k

Grommet 1-5/16"

293720118

$15.22

1211q

Corner Table Base

269003315

$429.97

1211r

Lever Latch Service Kit

295101126

Unavailable

1211s

Lever Decal

219905993

Unavailable

1211t

Seat Anchorage

269003311

$14.27

1211u

Torx Head M8 X 50 S.GRIP

250001154

$8.80

1211v

Flat Washer 8 mm

250200130

$2.61

1211w

Housing Nut M8 | Includes 400a1m to 400a1m1

293450387

$5.73

1211w1

Hex. Flange Nut M8

233181600

$0.86

1211x

Locator Rod

269003492

$4.71

1211y

Rubber Stopper

269003502

$6.45

1211z

Seat Anchorage Warning Label

219905883

Unavailable

1211aa

Guide

269004160

$10.14

1211ab

Hex. Flange Screw M6.81 x 20

243162060

$3.30
