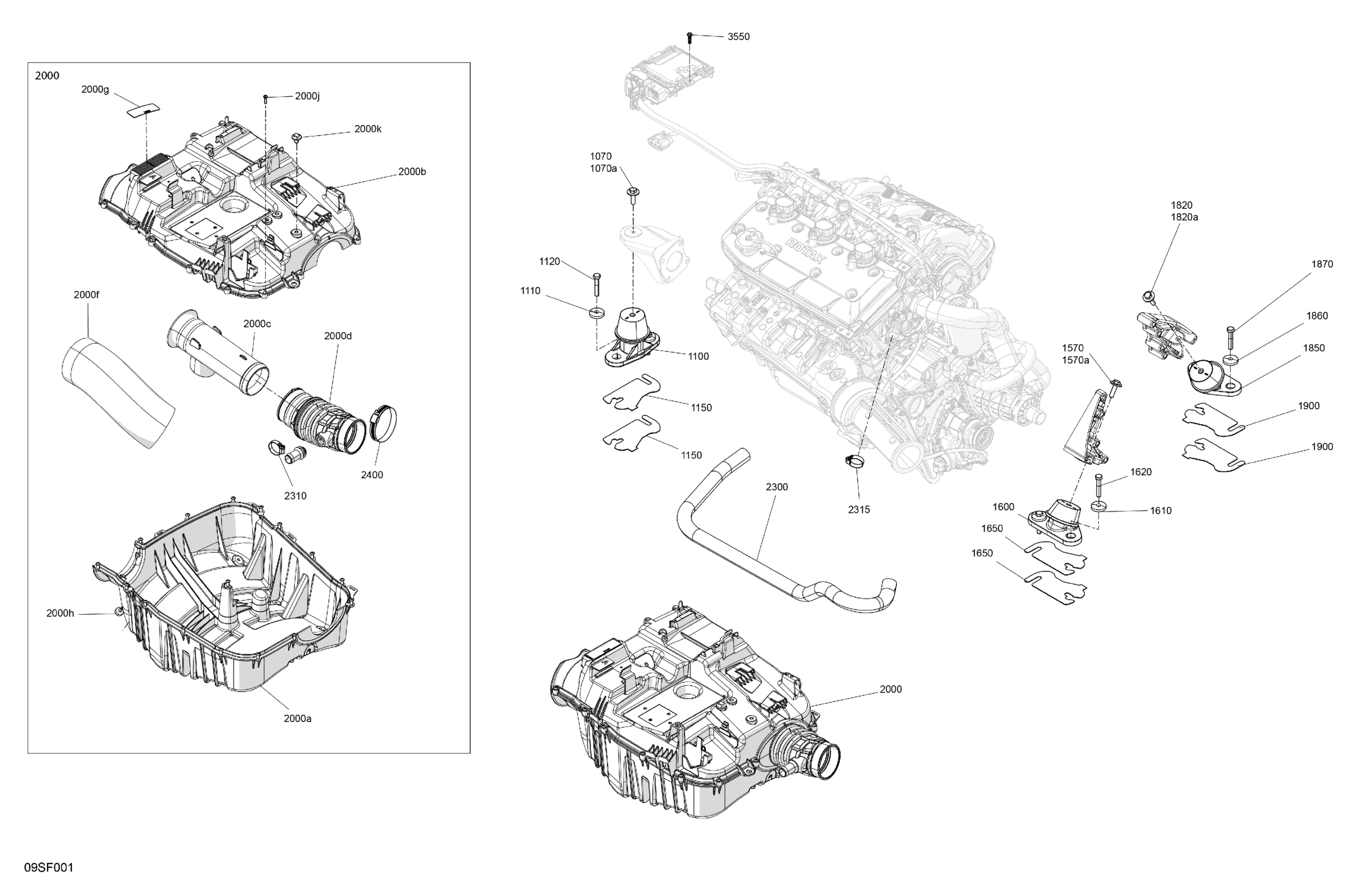

Sea-doo GTX PRO - 130 - (Rental) - 25TD - Bright White, 2026 Engine - System Diagram

Description

Price

1070

Hex Sems Screw M8 X 30 S.Grip | Includes 1070 to 1070a

250000933

$2.35

1070a

Hexagonal Screw M8 X 30

250000888

$3.00

1100

Front Engine Support Ass'y

270001215

$77.32

1110

Cone Washer

250200018

$4.64

1120

Hexagonal Head Cap Screw M8 X 45

250000782

$2.35

1150

Shim 1.3 mm

270000762

$9.04

1570

Hex Sems Screw M8 X 30 S.Grip | Includes 1070 to 1070a

250000933

$2.35

1570a

Hexagonal Screw M8 X 30

250000888

$3.00

1600

Lateral Engine Support Ass'y

270001211

$84.47

1610

Cone Washer

250200018

$4.64

1620

Hexagonal Head Cap Screw M8 X 45

250000782

$2.35

1650

Shim 1.3 mm

270000762

$9.04

1820

Hex Sems Screw M8 X 30 S.Grip | Includes 1070 to 1070a

250000933

$2.35

1820a

Hexagonal Screw M8 X 30

250000888

$3.00

1850

Lateral Engine Support Ass'y

270001211

$84.47

1860

Cone Washer

250200018

$4.64

1870

Hexagonal Head Cap Screw M8 X 45

250000782

$2.35

1900

Shim 1.3 mm

270000762

$9.04

2000

Intake Silencer Ass'y | Includes 2000 to 2000k

273000438

$114.90

2000a

Lower Intake Silencer

273000446

$64.15

2000b

Upper Intake Silencer

273000447

$64.15

2000c

Intake Duct Silencer Int

273000445

$44.75

2000d

Intake Duct Silencer Out

273000439

$42.51

2000f

Intake Duct Silencer In

273000425

$46.99

2000g

Air Silencer Notice Decal

219903177

Unavailable

2000h

Seat Stopper

708003866

$3.61

2000j

Flange Torx Screw K40 X 16

250000287

$1.74

2000k

Mount Dart

293730040

$0.86

2300

Formed Hose

270000949

$37.02

2310

Gear Clamp

293650284

$4.15

2315

Gear Clamp

293650284

$4.15

2400

Tridon Clamp

293650179

$8.81

3550

Flange Torx Screw K40 X 16

250000287

$1.74
