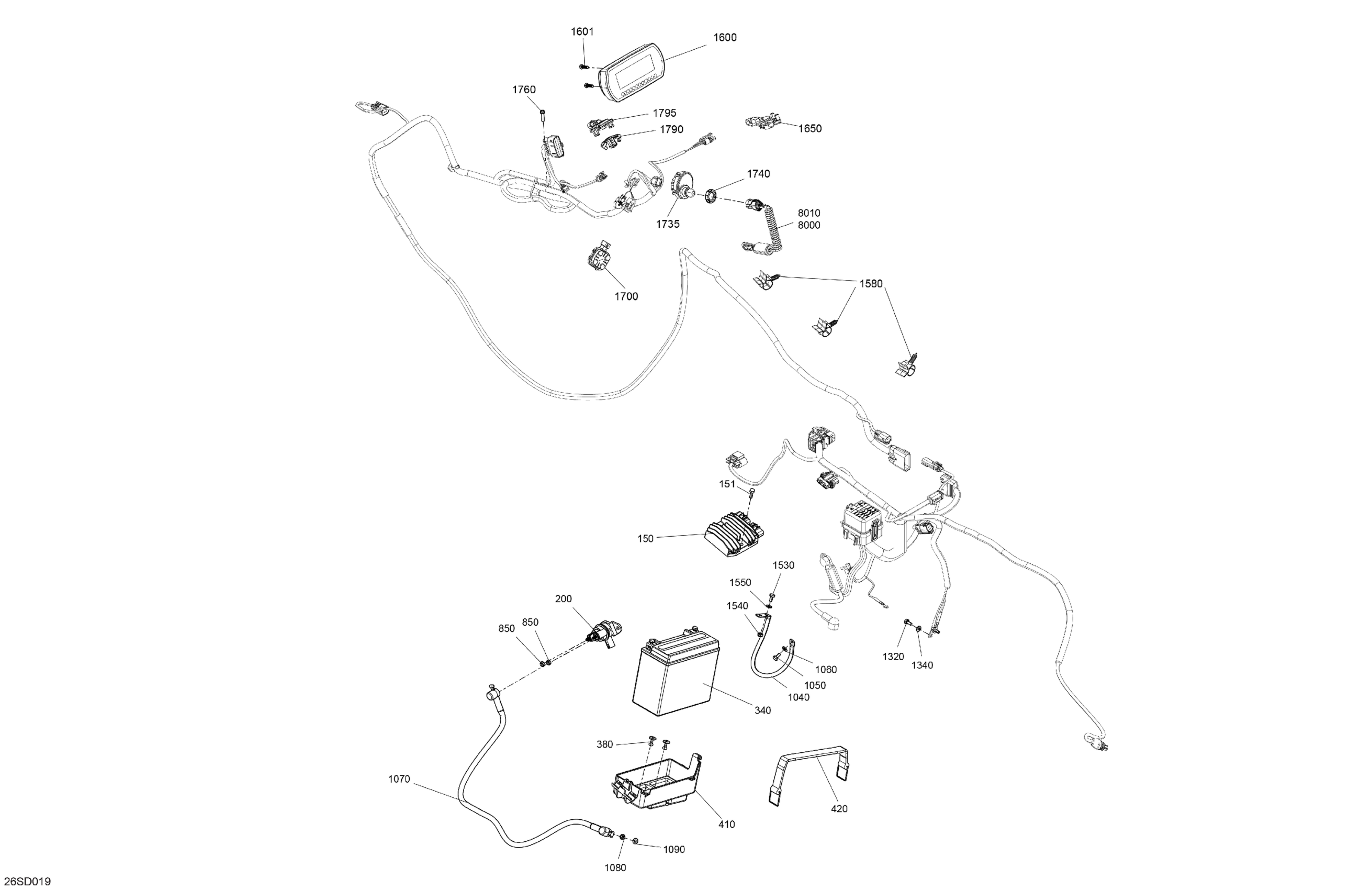

Sea-doo GTX PRO 130 (Rental) - 25RC - STDR package - Bright White,2024 Electric - System Diagram

Voltage Regulator | For replacement, refer to service bulletin 2005-5

710001103

$132.99

Hex. Flange Screw K50 X 25

250000680

$1.67

Starter Relay

278003012

$40.27

Battery 12 Volt 18AH

296000449

$142.45

Pop Rivet 3/16"

293150123

$3.94

Battery Support

278003473

$26.09

Fuel Tank Strap

293850095

$16.39

Elastic Stop Nut M6, Brass

232561200

$4.03

Ground Battery Cable

278003451

$35.79

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.55

Stainless Flat Washer M6

234061600

$0.28

Starter Cable

278003369

$35.79

Elastic Stop Nut M6, Brass

232561200

$4.03

Stainless Flat Washer M6

234061600

$0.28

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.55

Stainless Flat Washer M6

234061600

$0.28

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.55

Elastic Stop Nut M6, Brass

232561200

$4.03

Stainless Flat Washer M6

234061600

$0.28

Retainer

278003564

$6.57

Multifunction Mono Compact Gauge

278003430

$532.06

Hex. Flange Screw K50 X 20

241152060

$1.81

Throttle Position Sensor

278002283

$104.99

LH Switch Keypad

278003802

$116.39

Start/Stop Switch This part replaces 296000440.

296000440

$49.22

Terminal DESS CAN | CARB Vehicle

710008832

$69.37

Specialized Nut

278004274

$3.12

Hex. Screw 10-14 X 7/8”

211000023

$3.34

O.T.A.S Actuator

278003537

$38.03

Sensor

278004046

$95.49

Safety Lanyard Ass'y, Learning / RFID

278003401

$67.13

Safety Lanyard Ass'y, RFID

278003400

$67.13
