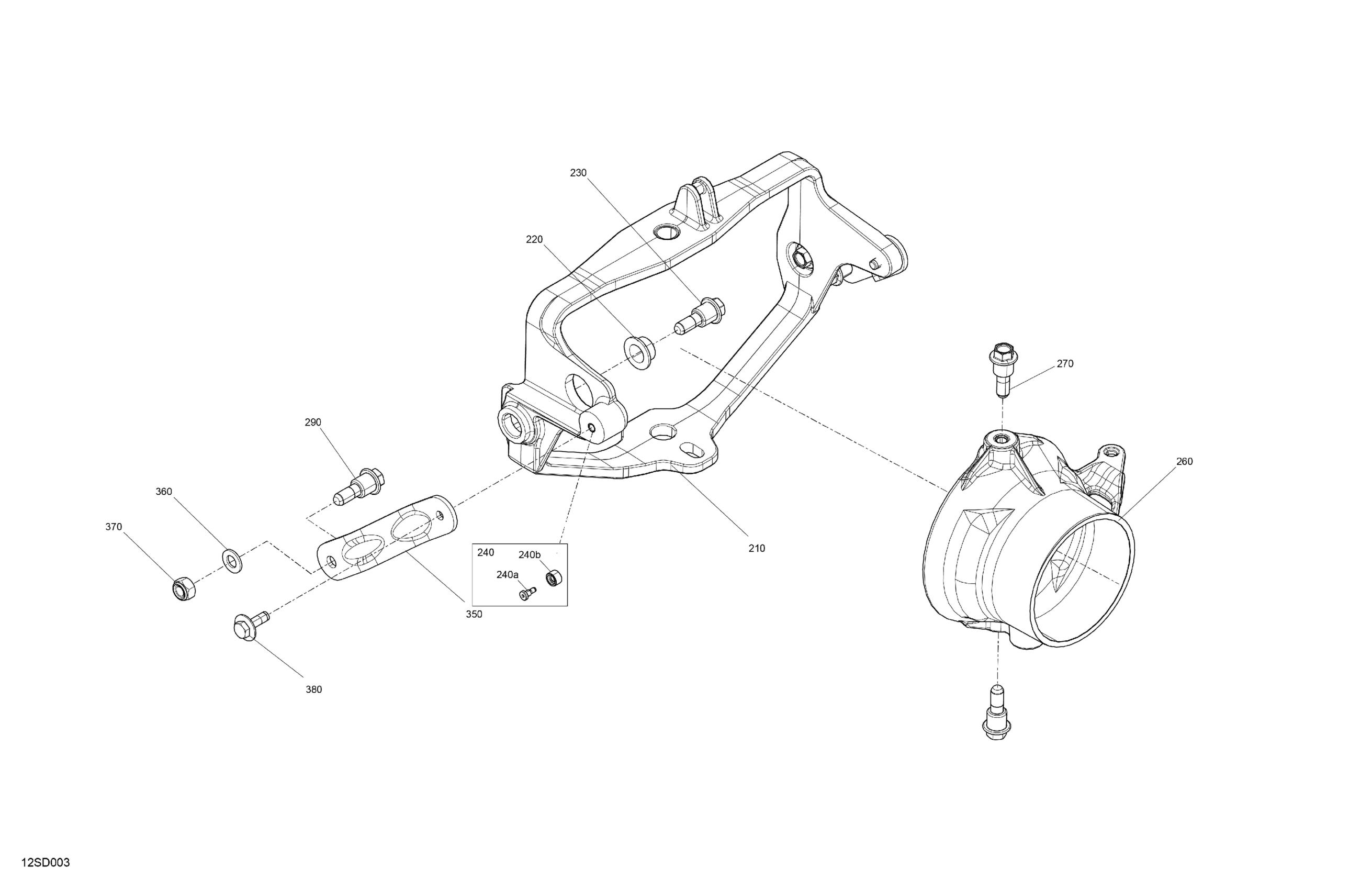

Sea-doo North America - GTX PRO 130 (Rental) - 25RC - STDR package - Bright White,2024 02- Mechanic - Reverse Diagram

Description

Price

210

Anodised Trimming Ring

268000318

$95.99

220

Venturi Bushing

293900007

$5.45

230

Hex. Flange Screw S.Grip M8 X 18

250000927

$3.91

240

Roller Bushing Kit | Includes 240 to 240b

295501160

$4.29

240a

Screw-Socket Shoulder M8X8

250000775

$8.29

240b

Roller Bushing Kit | Includes 240 to 240b

295501160

$4.29

260

Steering Nozzle

267000906

$33.99

270

Hex. Flange Screw S.Grip M8 X 18

250000927

$3.91

290

Hex. Flange Screw S.Grip M8 X 18

250000927

$3.91

350

Bracket

268000316

$19.99

360

Stainless, Flat Washer 8 mm

234081600

$0.55

370

Hex. Elastic Nut M8 Brass

232581200

$2.22

380

Hex Screw M6 X 20

250000965

$2.11
