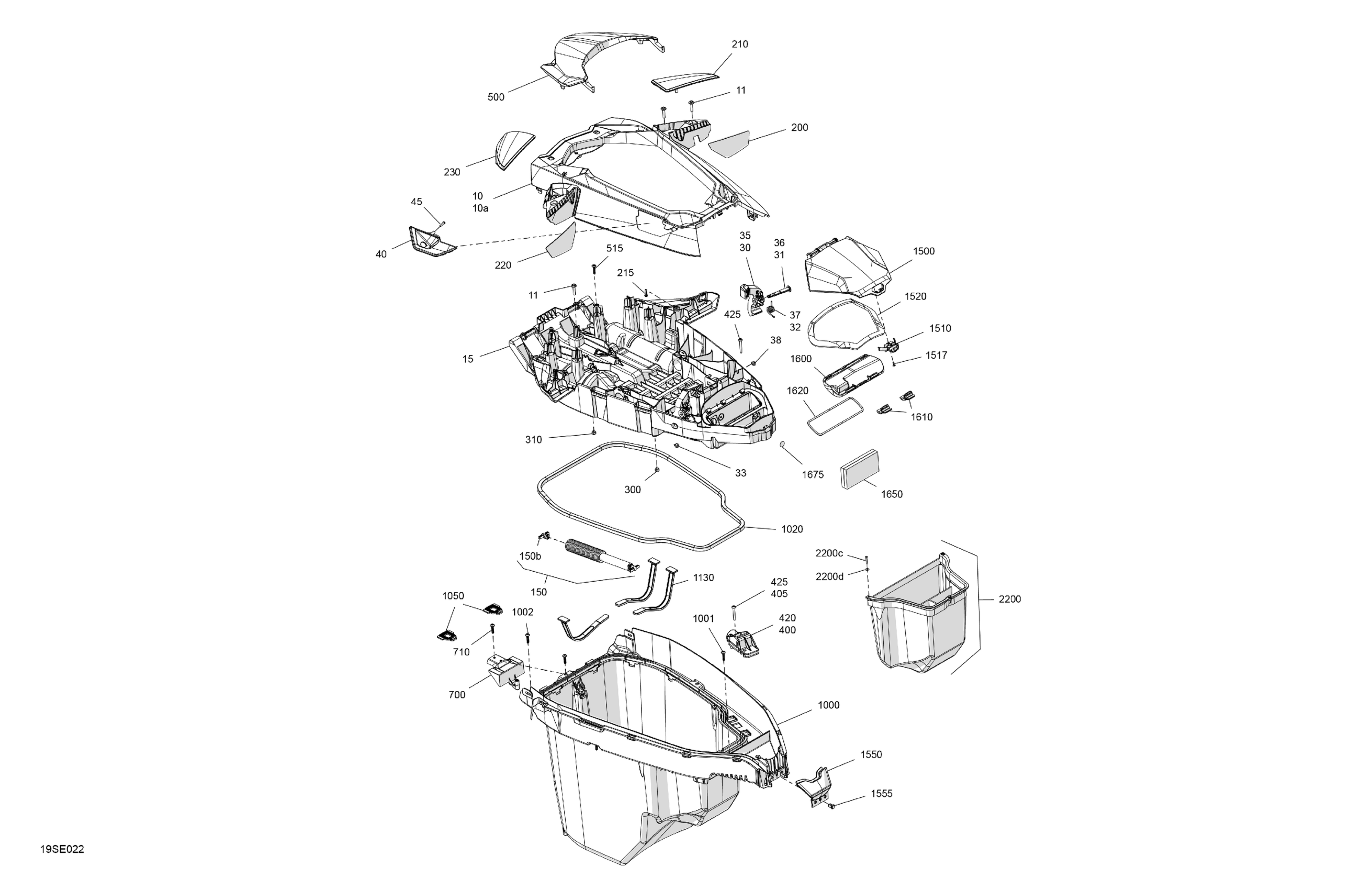

Sea-doo GTX - 325 - LIMITED - 26SB - Teal Blue Metalic - Audio, 2025 Body - Front Cover Diagram

#

Description
Price

10

Perforated Upper Hood | Includes 10 to 10a

269502481

$178.33

10a

Outer Skin

269502394

$182.06

11

Hexagonal Cap Screw M6 X35

250000399

$4.15

15

Inner Skin

269502555

$151.46

30

LH Latch

269502267

$27.58

31

Pin

269502536

$14.90

32

Latch Spring

269502268

$23.85

33

Rubber Bumper

293830005

$6.12

35

RH Latch

269502299

$27.58

36

Pin

269502536

$14.90

37

Latch Spring

269502268

$23.85

38

Rubber Bumper

293830005

$6.12

40

DESS Key Support

277002322

$13.09

45

Plastite Torx Screw #10 X 7/8"

250001196

$3.66

150

Shock Absorber Assembly | Includes 150 to 150b

269502426

$90.27

150b

Shock Absorber End Fitting

269501984

$10.19

200

RH Mirror Glass

269502276

$82.81

210

Iceland Grey, RH Miror Cover

269502542

$49.97

215

Hex. Screw 10-14 X 7/8”

211000023

$3.34

220

LH Mirror Glass

269502274

$82.81

230

Iceland Grey, LH Miror Cover

269502543

$49.97

300

Rubber Bumper

293830005

$6.12

310

Rubber Bumper

293830005

$6.12

400

LH Latch Base

269502385

$15.64

405

Screw-Torx Truss Cone HD.M6X50 | Includes 270 to 270

250000827

$3.82

420

RH Latch Base

269502386

$15.64

425

Screw-Torx Truss Cone HD.M6X50 | Includes 270 to 270

250000827

$3.82

500

Iceland Grey, Top Cover

269502406

$107.43

515

Plastite Screw Torx Cone HD.M6.81X3

250001138

$1.85

700

Shock Base

269502282

$23.10

710

Plastite Torx Screw M6.81X30 | Not Shown

250000879

$2.00

1000

Bin Compartment

264000144

$109.67

1001

Plastite Screw Torx Cone HD.M6.81X3

250001138

$1.85

1002

Plastite Torx Screw M6.81X30 | Not Shown

250000879

$2.00

1020

Gasket

293250478

$11.87

1050

Adjustment Hook

269502325

$8.21

1130

Strap

269502493

$13.24

1500

Glove Box Door

264000132

$58.93

1510

Glove Box Latch

264000133

$17.88

1517

Screw K40 X 10

250001119

$1.88

1520

Cover Gasket

293250717

$26.84

1550

Glove Box Trim

269502538

$17.13

1555

Tuflok Plastic Rivet

293150230

$1.39

1600

Box Cover

264000158

$11.72

1610

Clip

269501718

$14.90

1620

Gasket

293250591

$14.46

1650

Sealed Compartment Foam

264000135

$10.58

1675

Vent Membrane

264000137

$10.37

2200

Rear Bin Organiser Ass'y | Includes 2200 to 2200d

295100836

$74.60

2200c

Flange Torx Screw K40 X 25

250001092

$3.51

2200d

Flat Washer 4 mm, Stainless

234042600

$1.06
