01- ROTAX - Engine Lubrication

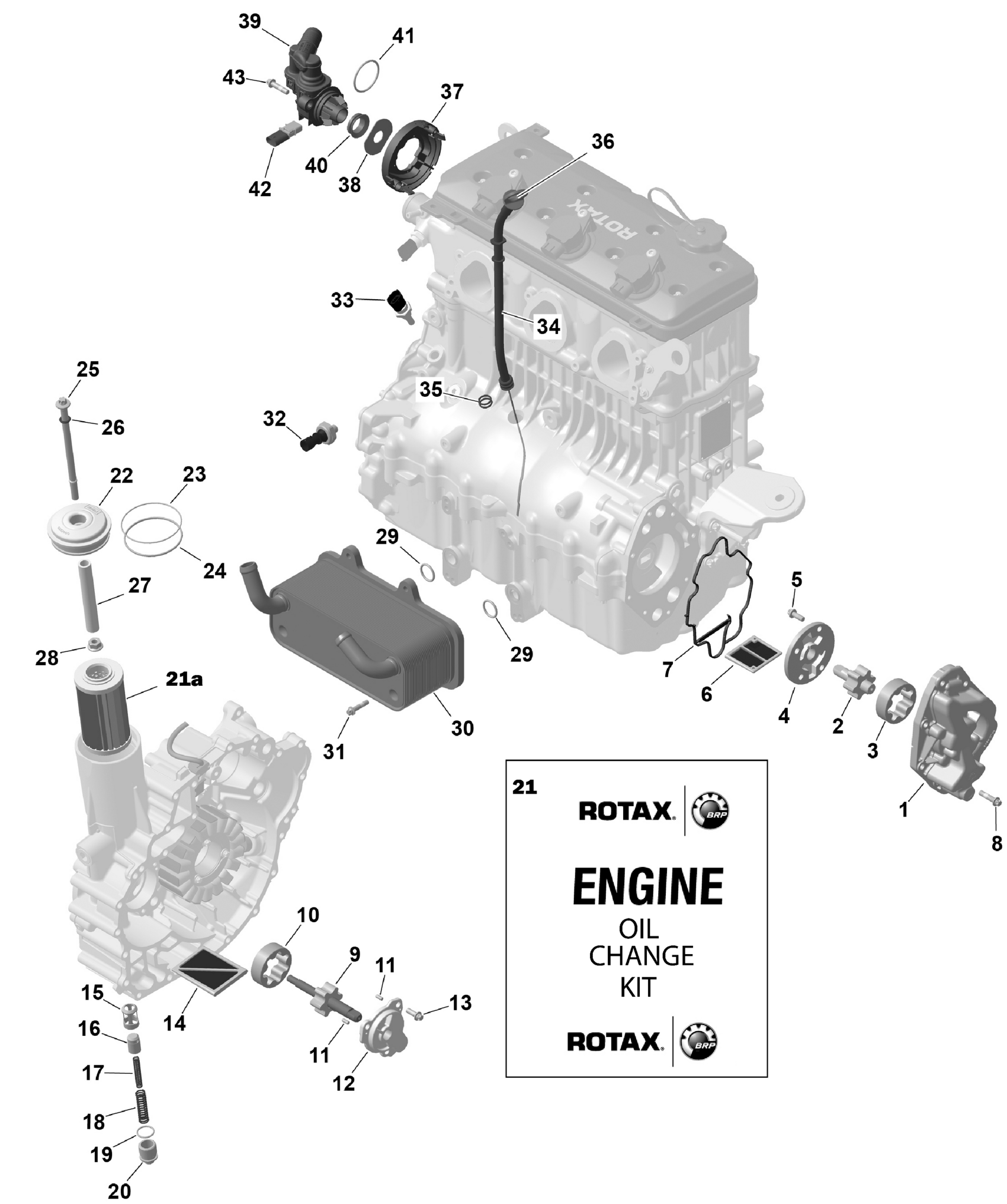

Sea-doo North America - GTX - 300 - STD - 15SA - Blue Abyss - Audio, 2025 01- ROTAX - Engine Lubrication Diagram
#
1
Oil Pump Housing
420812726
$119.99
2
Oil Pump Shaft
420837543
$61.49
3
Oil Pump Rotor 16 mm
420956675
$36.99
4
Oil Pump Cover
420811851
$33.99
5
Torx Flange Screw M6 X 16
420641048
$2.96
6
Oil Sieve
420856520
$26.49
7
Oil Suction Pump Gasket | Included in gasket kit
420631486
$10.33
8
Torx Flange Screw M6 X 25
420641238
$3.27
9
Pump Shaft Ass'y
420837472
$56.99
10
Oil Pump Rotor 16 mm
420956675
$36.99
11
Needle Pin
420929070
$1.90
12
Oil Pump Cover
420811591
$37.99
13
Torx Flange Screw M6 X 16
420641048
$2.96
14
Oil Sieve
420956950
$16.86
15
Valve Seat Sleeve
420256606
$29.49
16
Piston Valve
420256638
$22.99
17
Compression Spring
420939401
$14.75
18
Compression Spring
420939211
$8.99
19
O-Ring
420230890
$5.39
20
Plug Screw M20 X 1.5
420641052
$37.99
21
Oil Change Kit 5W40 1500cc
9779486
$90.99
21a
Oil Filter
420956744
$20.99
22
Oil Filter Cover
420612081
$45.49
23
O-Ring
420850500
$3.17
24
O-Ring
420230923
$3.17
25
Hex Screw M8 X 140.5
420641104
$13.76
26
O-Ring
420950860
$3.91
27
Spacer
420857229
$20.99
28
Hex. Nut M8
420842610
$13.77
29
O-Ring
420250057
$4.23
30
Oil Radiator
420888878
$328.49
31
Torx Flange Screw M6 X 25
420641238
$3.27
32
Oil Pressure Switch
420256919
$51.99
33
Temperature Sensor
278002895
$39.99
34
Oil Level Tube
420956944
$121.49
35
O-Ring
420950810
$14.83
36
Oil Level Gauge
420956932
$30.49
37
Cover
420660037
$23.49
38
Thrust Washer
420627494
$7.41
39
Vent Valve Ass'y | Includes no. 39-42
420856504
$110.99
40
V-Ring 20S FPM Blow By Valve
420630125
$11.63
41
O-Ring
420950870
$5.39
42
TOPS Switch
420665951
$42.49
43
Torx Flange Screw M6 X 25
420641238
$3.27
