01- ROTAX - Crankcase

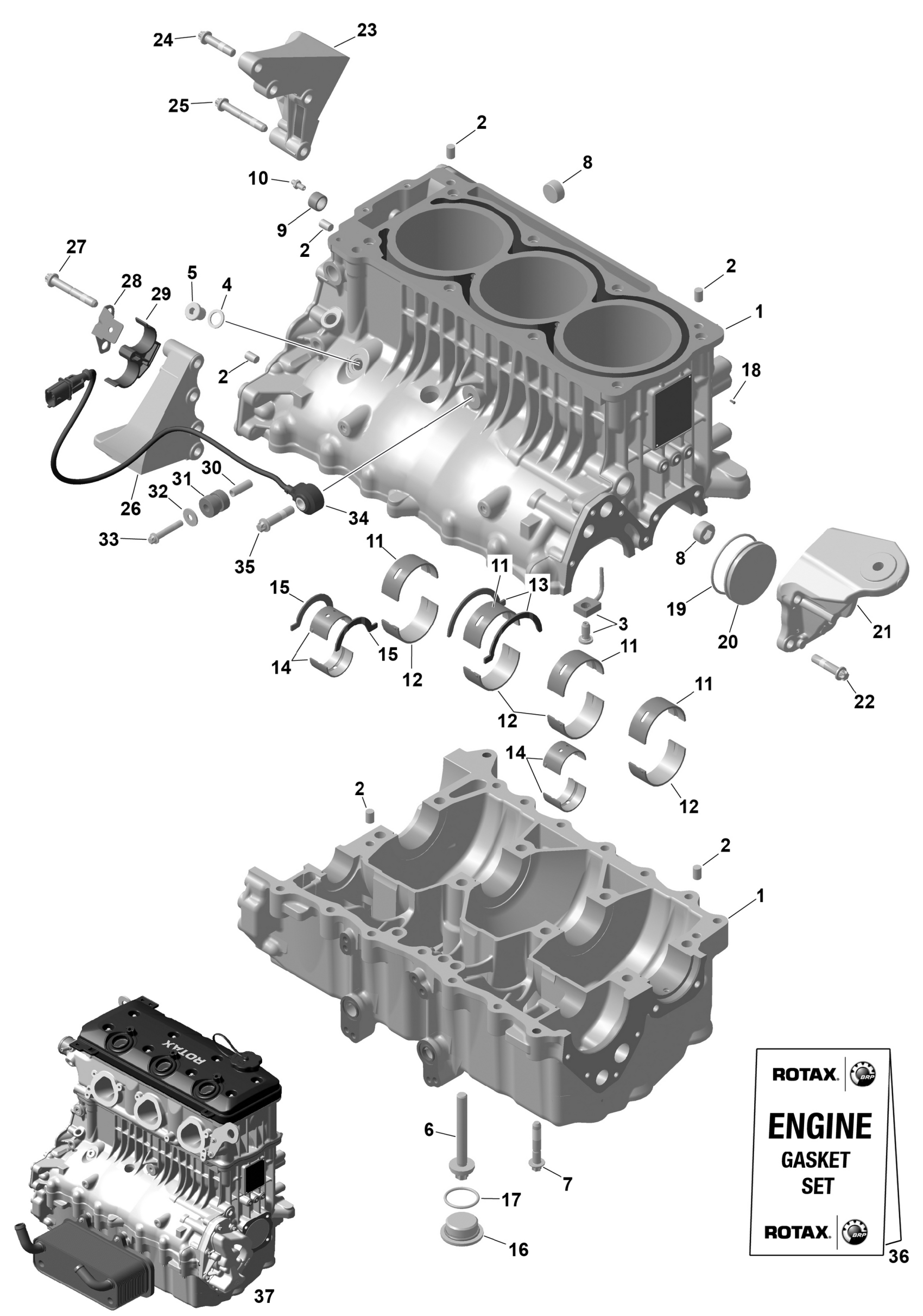

Sea-doo North America - GTX - 300 - STD - 15SA - Blue Abyss - Audio, 2025 01- ROTAX - Crankcase Diagram
#
Description
Price
1
Cylinder Block W Sleeve | Includes no. 1-10
420893514
$2.00
2
Center Pin 8 X 12
420632010
$4.01
3
Oil Spray Nozzle
420956772
$35.99
4
Aluminum Sealing Ring
420250016
$5.39
5
Plug Screw M12
420841923
$15.89
6
Torx Flange Screw M10 X 82
420641120
$7.41
7
Hex. Flange Screw M8 X 45
420641208
$7.51
8
Plug Screw M20 X 1.5
420641317
$14.22
9
Needle Bushing
420232482
$20.99
10
Oil Spraying Jet
420456431
$30.49
11
Plain Half-Bearing
420933456
$16.34
12
Plain Half-Bearing
420933466
$16.34
13
Half-Ring
420933475
$11.63
14
Plain Bearing Half
420933442
$19.99
15
Half-Ring
420933470
$7.41
16
Plug Screw M30 X 1.5
420641171
$20.99
17
O-Ring DIN 3771-28X2.6n NBR70 Cylinder Block Plug Screws
420631300
$10.33
18
Grooved Pin
420249073
$1.90
19
O-Ring
420430405
$14.28
20
Plug Cover
420660110
$7.41
21
Front Engine Bracket
420811794
$46.99
22
Torx Flange Screw M8 X 35
420641188
$7.41
23
Engine Bracket PTO, Exhaust
420811788
$75.99
24
Torx Flange Screw M8 X 35
420641188
$7.41
25
Torx Flange Screw M8 X 55
420641213
$7.41
26
Engine Bracket PTO, Exhaust
420811784
$63.99
27
Torx Flange Screw M8 X 55
420641213
$7.41
28
Retaining Plate
420851740
$20.99
29
Hose Bracket
420660290
$16.37
30
Spacer
420847971
$7.41
31
Rubber Bracket
420660090
$4.12
32
Flat Washer M6
420827968
$1.90
33
Torx Flange Screw M6 X 35
420641258
$3.38
34
Noise Sensor
420664031
$63.99
35
Torx Flange Screw M8 X 35
420641188
$7.41
36
Gasket Set
420889777
$487.49
37
Engine Long Block,1603 XHO
420160347
$5.00
