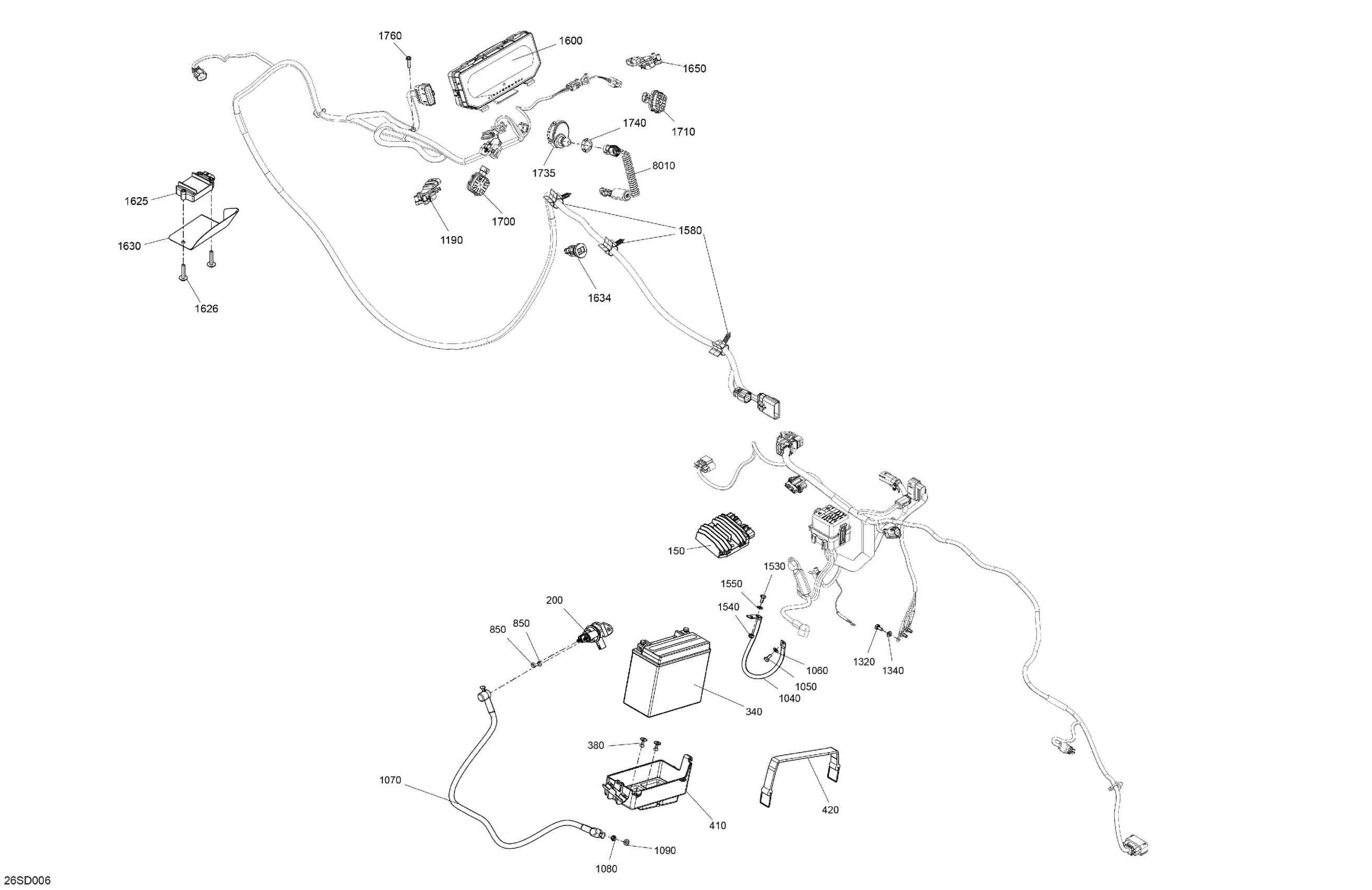

Sea-doo GTX 230 - 12RC - STD package - Blue Abyss - Audio,2024 Electric - System Diagram

Description

Price

150

Voltage Regulator | For replacement, refer to service bulletin 2005-5

710001103

$142.99

200

Starter Relay

278003012

$42.49

340

Battery 12 Volt 18AH

296000449

$92.28

380

Pop Rivet 3/16"

293150123

$4.29

410

Battery Support

278003473

$28.99

420

Fuel Tank Strap

293850095

$19.99

850

Elastic Stop Nut M6, Brass

232561200

$4.23

1040

Ground Battery Cable

278003451

$39.99

1050

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.58

1060

Stainless Flat Washer M6

234061600

$0.33

1070

Starter Cable

278003369

$39.99

1080

Elastic Stop Nut M6, Brass

232561200

$4.23

1090

Stainless Flat Washer M6

234061600

$0.33

1190

LH Throttle Sensor

278002284

$119.99

1320

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.58

1340

Stainless Flat Washer M6

234061600

$0.33

1530

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.58

1540

Elastic Stop Nut M6, Brass

232561200

$4.23

1550

Stainless Flat Washer M6

234061600

$0.33

1580

Retainer

278003564

$8.39

1600

Multifunction Gauge Full Size Color

278004181

$1.00

1625

GPS

278004506

$109.99

1626

Hexagonal Cap Screw M6 X35

250000399

$4.44

1630

Bent Deflector

278003976

$10.99

1634

Wiring Grommet

293720121

$4.59

1650

Throttle Position Sensor

278002283

$119.99

1700

Switch

278003821

$126.99

1710

RH Switch Keypad

278003474

$126.99

1731

Start/Stop Switch This part replaces 296000440.

296000440

$46.49

1732

Start/Stop Switch This part replaces 296000440.

296000440

$46.49

1735

Terminal DESS One Wire

515179305

$74.99

1740

Specialized Nut

278004274

$3.28

1760

Hex. Screw 10-14 X 7/8”

211000023

$3.59

8010

Safety Lanyard Ass'y, RFID

278003400

$84.99
