Description

Price

1070

Hex Sems Screw M8 X 30 S.Grip | Includes 1070 to 1070a

250000933

$2.85

1070a

Hexagonal Screw M8 X 30

250000888

$3.17

1100

Engine Support Ass'y

270001096

$97.99

1110

Cone Washer

250200018

$5.61

1120

Hexagonal Head Cap Screw M8 X 45

250000782

$2.85

1150

Shim 1.3 mm

270000762

$12.99

1570

Hex Sems Screw M8 X 30 S.Grip | Includes 1070 to 1070a

250000933

$2.85

1570a

Hexagonal Screw M8 X 30

250000888

$3.17

1600

Engine Support Ass'y

270001081

$109.99

1610

Cone Washer

250200018

$5.61

1620

Hexagonal Head Cap Screw M8 X 45

250000782

$2.85

1650

Shim 1.3 mm

270000762

$12.99

1820

Hex Sems Screw M8 X 30 S.Grip | Includes 1070 to 1070a

250000933

$2.85

1820a

Hexagonal Screw M8 X 30

250000888

$3.17

1850

Engine Support Ass'y

270001081

$109.99

1860

Cone Washer

250200018

$5.61

1870

Hexagonal Head Cap Screw M8 X 45

250000782

$2.85

1900

Shim 1.3 mm

270000762

$12.99

2000a

Airbox Base

273000342

$48.99

2000b

Intake Silencer Cover

273000394

$72.99

2000c

Intake Hose

273000359

$48.99

2000d

Hose Connector

273000375

$73.99

2000f

Air Silencer Hose

273000290

$22.49

2000g

Air Silencer Notice Decal

219903177

Unavailable

2000h

Rubber Stopper

708000759

$4.19

2000j

Flange Torx Screw K40 X 16

250000287

$2.11

2000k

Mount Dart

710008294

$1.04

2300

Formed Hose

270000950

$10.99

2305

Breather Valve

273000234

$14.49

2310

Gear Clamp

293650284

$4.44

2315

Gear Clamp

293650284

$4.44

2350

Central Intake Duct

273000376

$47.99

2370

Polyurethane Hose 1000Mm Long | Not Shown

219704393

$7.20

2400

Tridon Clamp

293650179

$11.49

2410

Tridon Clamp

293650179

$11.49

2420

Molded Hose

273000417

$31.99

2430

Tridon Clamp

293650179

$11.49

3000

Intercooler

276000406

$519.49

3000a

Anode Zinc

271001942

$18.76

3010

Formed Hose

273000418

$83.99

3020

Tridon Gear Clamp

293650244

$9.29

3025

Tridon Clamp

293650179

$11.49

3030

Oultet Hose

273000419

$85.99

3040

Tridon Gear Clamp

293650244

$9.29

3045

Tridon Clamp

293650179

$11.49

3070

Fuel Tank Strap

293850094

$22.49

3075

Fuel Tank Strap

293850095

$19.99

3550

Hex. Flange Screw K50 X 20

241152060

$1.99

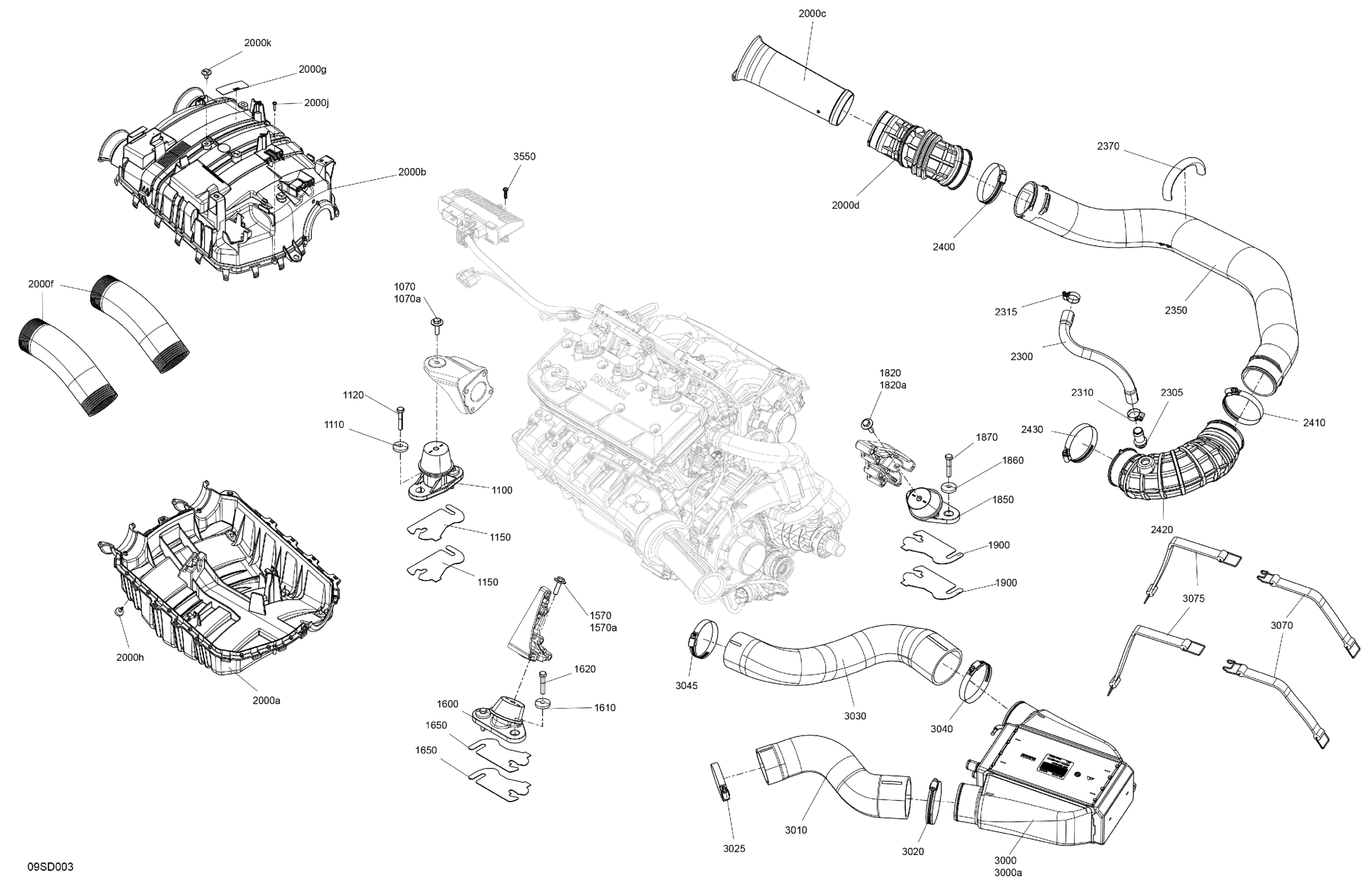

Sea-doo GTX 230 - 12RA - STD package - Blue Abyss,2024 Engine - System Diagram

Hex Sems Screw M8 X 30 S.Grip | Includes 1070 to 1070a

Hexagonal Screw M8 X 30

Engine Support Ass'y

Cone Washer

Hexagonal Head Cap Screw M8 X 45

Shim 1.3 mm

Hex Sems Screw M8 X 30 S.Grip | Includes 1070 to 1070a

Hexagonal Screw M8 X 30

Engine Support Ass'y

Cone Washer

Hexagonal Head Cap Screw M8 X 45

Shim 1.3 mm

Hex Sems Screw M8 X 30 S.Grip | Includes 1070 to 1070a

Hexagonal Screw M8 X 30

Engine Support Ass'y

Cone Washer

Hexagonal Head Cap Screw M8 X 45

Shim 1.3 mm

Airbox Base

Intake Silencer Cover

Intake Hose

Hose Connector

Air Silencer Hose

Air Silencer Notice Decal

Rubber Stopper

Flange Torx Screw K40 X 16

Mount Dart

Formed Hose

Breather Valve

Gear Clamp

Gear Clamp

Central Intake Duct

Polyurethane Hose 1000Mm Long | Not Shown

Tridon Clamp

Tridon Clamp

Molded Hose

Tridon Clamp

Intercooler

Anode Zinc

Formed Hose

Tridon Gear Clamp

Tridon Clamp

Oultet Hose

Tridon Gear Clamp

Tridon Clamp

Fuel Tank Strap

Fuel Tank Strap

Hex. Flange Screw K50 X 20
