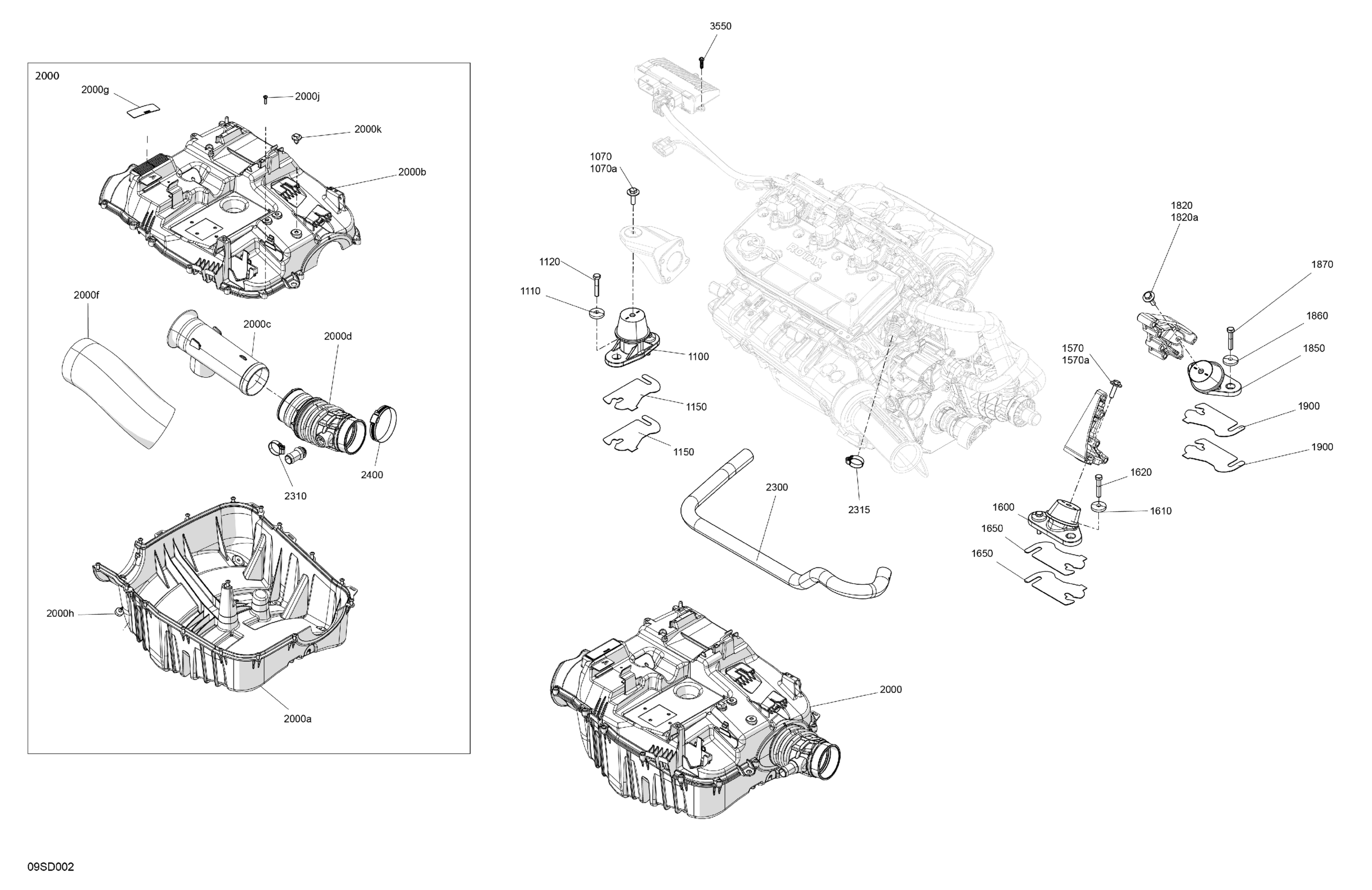

Sea-doo North America - GTX 170 - 11RA - STD package - Blue Abyss,2024 02- Engine - System Diagram

Description

Price

1070

Hex Sems Screw M8 X 30 S.Grip | Includes 1070 to 1070a

250000933

$2.85

1070a

Hexagonal Screw M8 X 30

250000888

$3.17

1100

Engine Support Ass'y

270001096

$97.99

1110

Cone Washer

250200018

$5.61

1120

Hexagonal Head Cap Screw M8 X 45

250000782

$2.85

1150

Shim 1.3 mm

270000762

$12.99

1570

Hex Sems Screw M8 X 30 S.Grip | Includes 1070 to 1070a

250000933

$2.85

1570a

Hexagonal Screw M8 X 30

250000888

$3.17

1600

Engine Support Ass'y

270001081

$109.99

1610

Cone Washer

250200018

$5.61

1620

Hexagonal Head Cap Screw M8 X 45

250000782

$2.85

1650

Shim 1.3 mm

270000762

$12.99

1820

Hex Sems Screw M8 X 30 S.Grip | Includes 1070 to 1070a

250000933

$2.85

1820a

Hexagonal Screw M8 X 30

250000888

$3.17

1850

Engine Support Ass'y

270001081

$109.99

1860

Cone Washer

250200018

$5.61

1870

Hexagonal Head Cap Screw M8 X 45

250000782

$2.85

1900

Shim 1.3 mm

270000762

$12.99

2000

Intake Silencer Ass'y | Includes 2000 to 2000k

273000438

$129.99

2000a

Lower Intake Silencer

273000446

$71.99

2000b

Upper Intake Silencer

273000447

$71.99

2000c

Intake Duct Silencer Int

273000445

$49.99

2000d

Intake Duct Silencer Out

273000439

$47.99

2000f

Intake Duct Silencer In

273000425

$48.99

2000g

Air Silencer Notice Decal

219903177

Unavailable

2000h

Rubber Stopper

708000759

$4.19

2000j

Flange Torx Screw K40 X 16

250000287

$2.11

2000k

Mount Dart

710008294

$1.04

2300

FORMED HOSE - Call your local BRP dealership

270000808

Unavailable

2310

Gear Clamp

293650284

$4.44

2315

Gear Clamp

293650284

$4.44

2400

Tridon Clamp

293650179

$11.49

3550

Flange Torx Screw K40 X 16

250000287

$2.11
