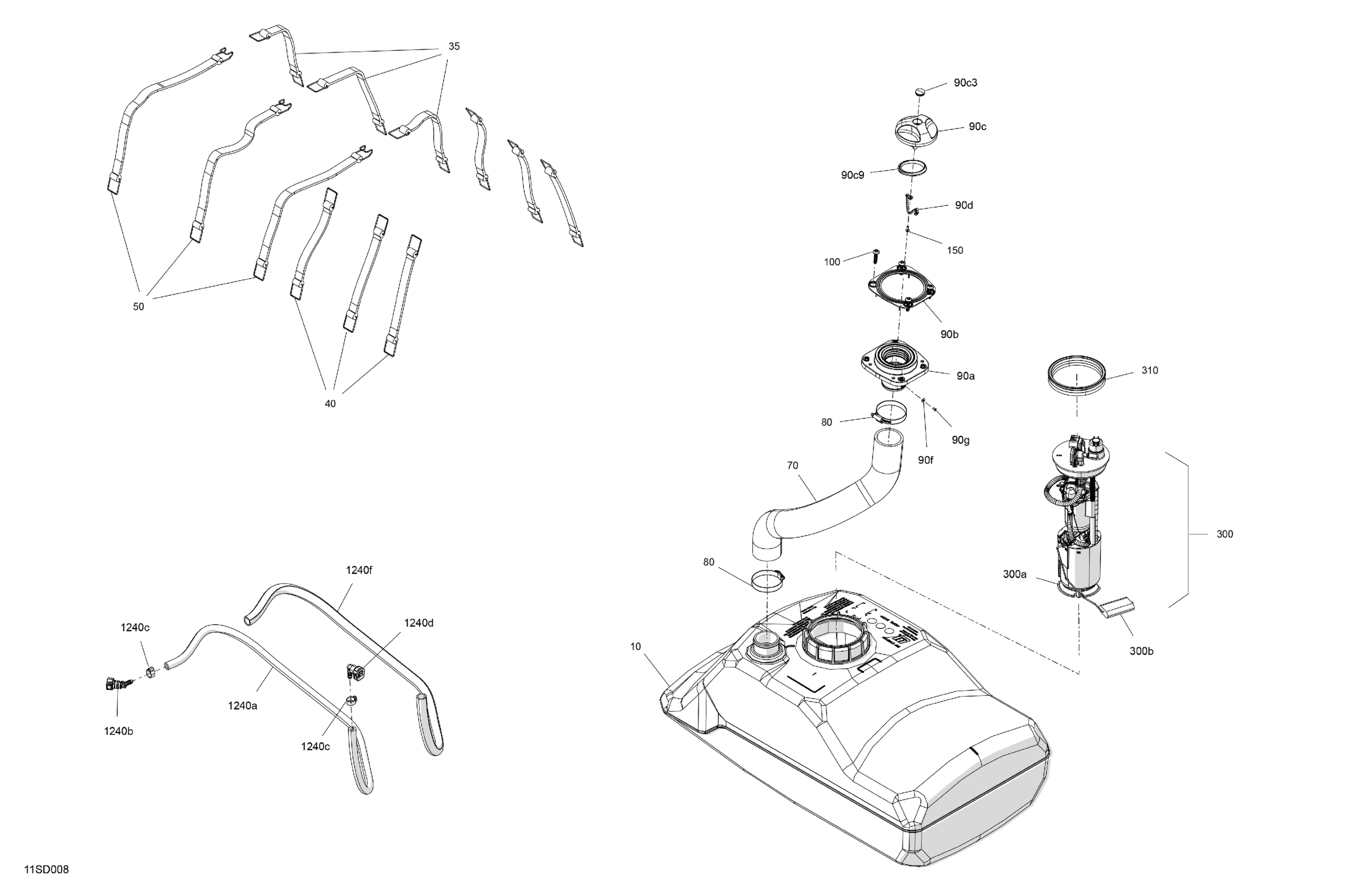

Sea-doo GTX 170 - 11RA - STD package - Blue Abyss,2024 Engine - Fuel Diagram

Description

Price

Fuel Tank

275501144

$359.99

Holding Strap

293850112

$18.49

Holding Strap

293850112

$18.49

Holding Strap

293850134

$20.99

Formed Hose

275500999

$83.99

Norma Clamp

293650081

$12.18

90a

Filler Neck

275500986

$17.39

90b

Gasket

293250434

$3.81

90c

Fuel Cap Ass'y | Includes 90b to 90b9

275501094

$59.49

90c3

Black, Snap Cap

293000034

$9.39

90c9

Gasket

293250417

$3.91

90d

Fuel Cap Chain

275500972

$18.54

90f

Flat Washer M3, Stainless

234032600

$0.55

90g

Pop Rivet 1/8"

390407900

$1.49

100

Plastite Screw Torx Cone HD.M6.81X3

250001138

$2.30

150

Screw K40 X 10

241140060

$1.48

300

Fuel Pump Ass'y | Includes 300 to 300b

275501039

$425.99

300a

Fuel Filter

270600113

$33.99

300b

Fuel Level Sensor

275501163

$109.99

310

Gasket

293250173

$18.49

1240a

Hose I.D. 7.9Mm 3000Mm Long

219704359

$339.99

1240b

Quick Fitting 45° Ass'y | Includes 34 to 35

709000627

$16.49

1240c

Crimp Clamp

293650053

$3.09

1240d

Quick Disconnect

275500921

$16.49

1240f

Tubing 16 Mm 1000Mm Long

219704408

$7.49
